From the source:
The Tone Reaper is a vintage style fuzz device based on the “3 knob”
bender. It’s a silicon/germanium hybrid capable of producing an array of
tones from every bender era with careful tweaking of the tone and fuzz
controls. From thin and spitty to a growling crunch, all with a midrange
punch to make it scratch and kick through any mix. The Tone Reaper will
also please anyone looking for the higher gain Randy Rhodes style grind
at it’s higher fuzz settings. All analog, true bypass and made one at a
time by real humans in stuffy Akron,
Basically it’s a modified Tonebender MKIII, with the biggest change being the Germanium darlington pair normally in Q1 & Q2 being replaced with a high gain Sillicon transistor.

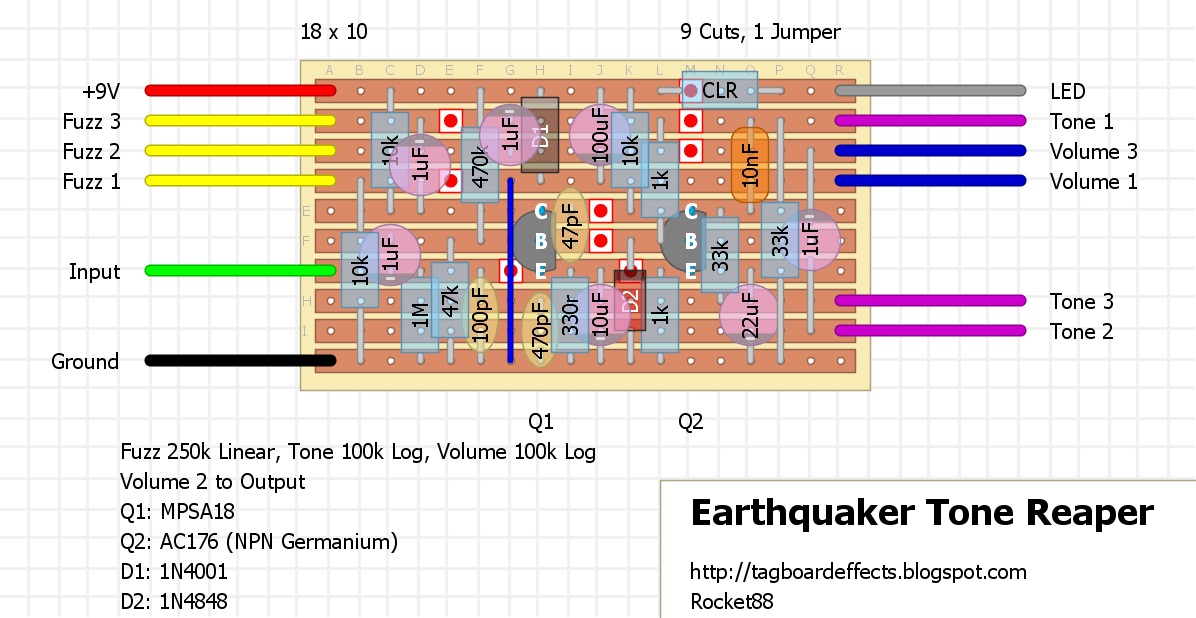

Thanks goes to Galapagos, who traced his Tone Reaper, schematic and trace here. You’ll notice there’s a diode he marked mystery, which from what I can tell looks like a 1N4848/1N914, so that may take some experimenting. Also, without knowing the hfe and leakage of the AC176, I can’t say for sure what would be a good substitute, but you may want to try the typical NPN Germaniums typically use like MP38A, but these typically have little to know leakage while the original tonebender Q3 likes a lot of leakage.
Side comment. For those that want to have some more fun, you can build the Tone Reaper and put it in front of a Hoof, each on their own switch and make 2/3 of the Hoof Reaper, as we don’t have a schematic for the switchable octave in between.
EDIT: for all those that want to make a Hoof Reaper we have a layout for the octave section, as it’s the Tentacle. Build on Brothers of Fuzz.
