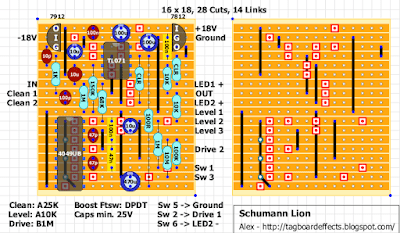

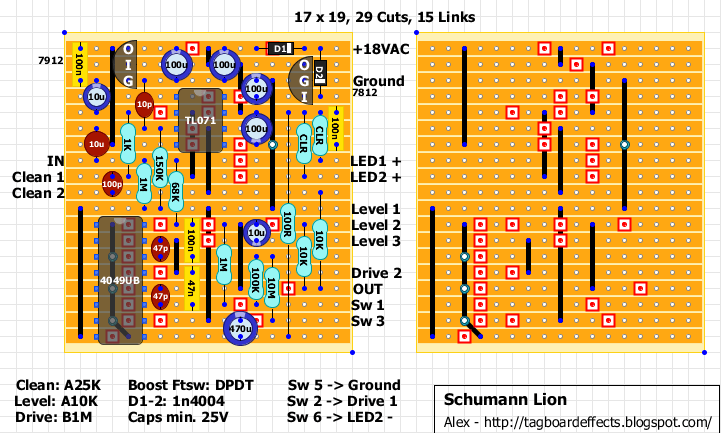

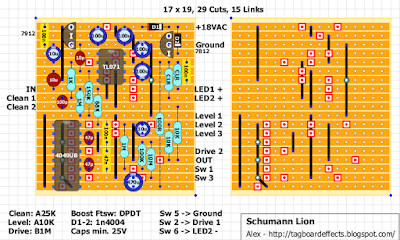

Here is a layout for the rare Schumann Lion distortion.
Original brief description:
“The LION is a distortion device and a clean booster with two complete circuits that can be mixed independently.
Has a bypass footswitch and boost footswitch that gives extra distortion.
Great for bass — distortion that doesn’t cut out the low end.
Great for guitar — minor chords retain clean harmonics — you can get great distortion but still hear definition of notes.“
You can find original DIY thread and schematic here.
30/11/2017 Layouts Updated! Changed Drive pot to B1M and added 470uF capacitor.

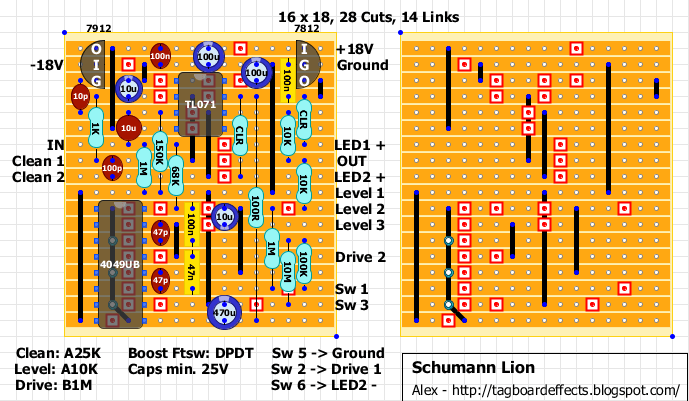

If you want to use Mark’s Bipolar Voltage Converter:
