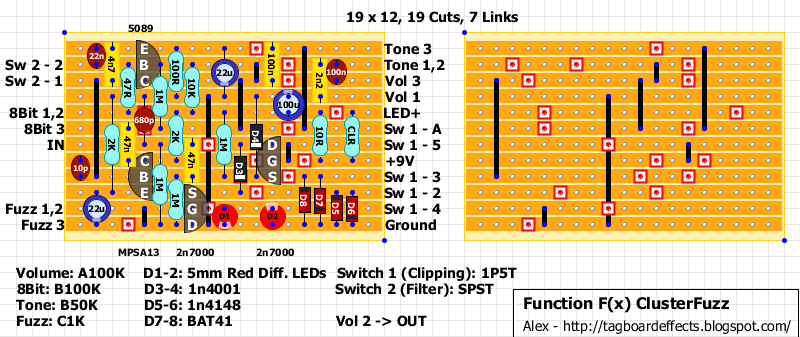

Clusterfuzz 3e3cd652de74

Function F(x) Clusterfuzz

3 Jun 202629 Jan 2017 by chords

Original FSB thread and schematic available here.

Categories Uncategorized Tags Clusterfuzz, Fuzz, Medium, tagboardeffects, Verified, Vero
