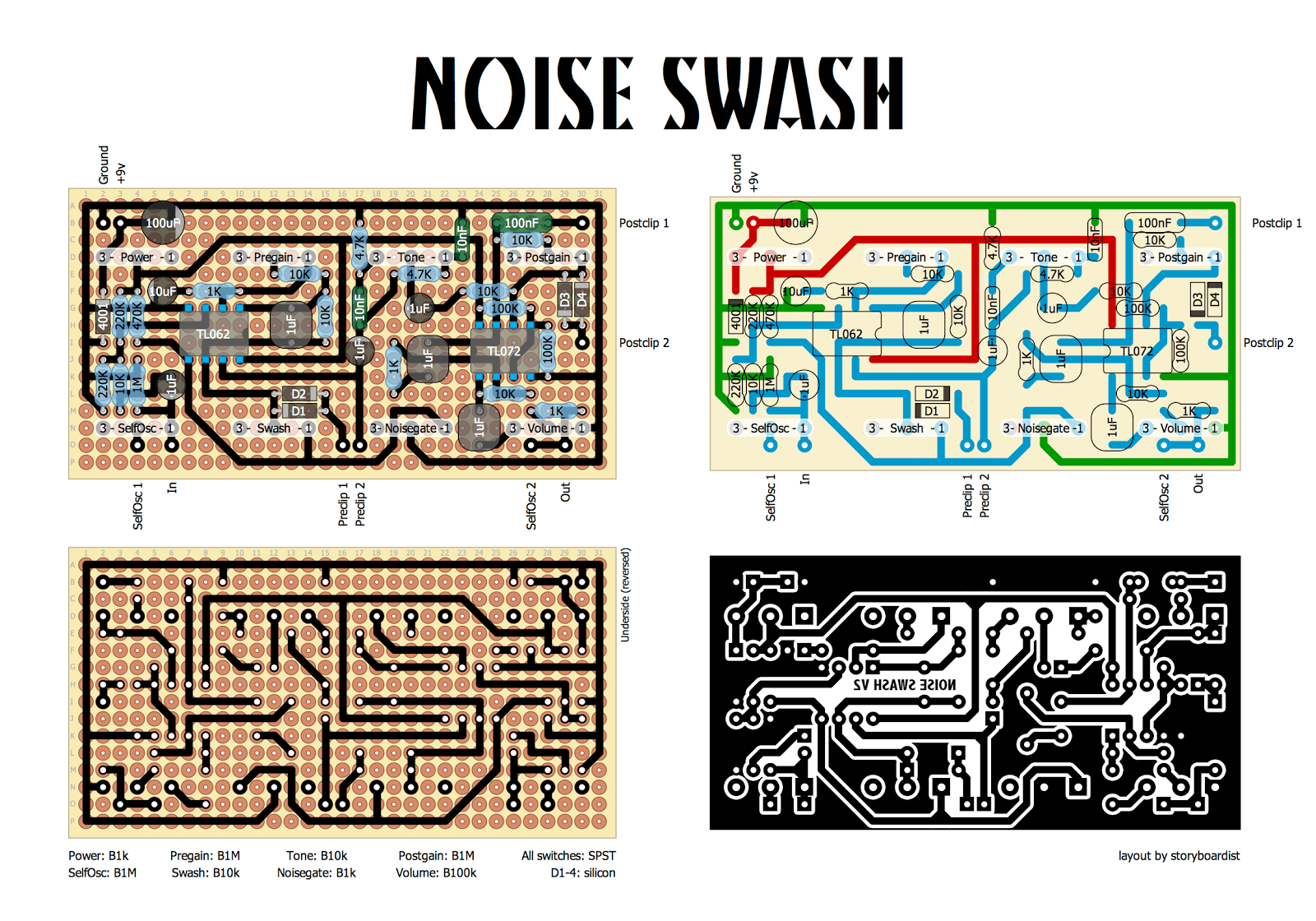

Figured with all the big layouts this week, I’d better finish it off with another big one for Fuzz Friday. This one’s great if you like flipping switches, playing with knobs and making a ton of noise. Not all that complicated really, just a lot of controls for tweak-ability. The original 4ms design says to use a switched pot for the Self Oscillation control, but you can use a regular pot and a separate SPST switch instead if you want. Here’s the schematic for reference.
