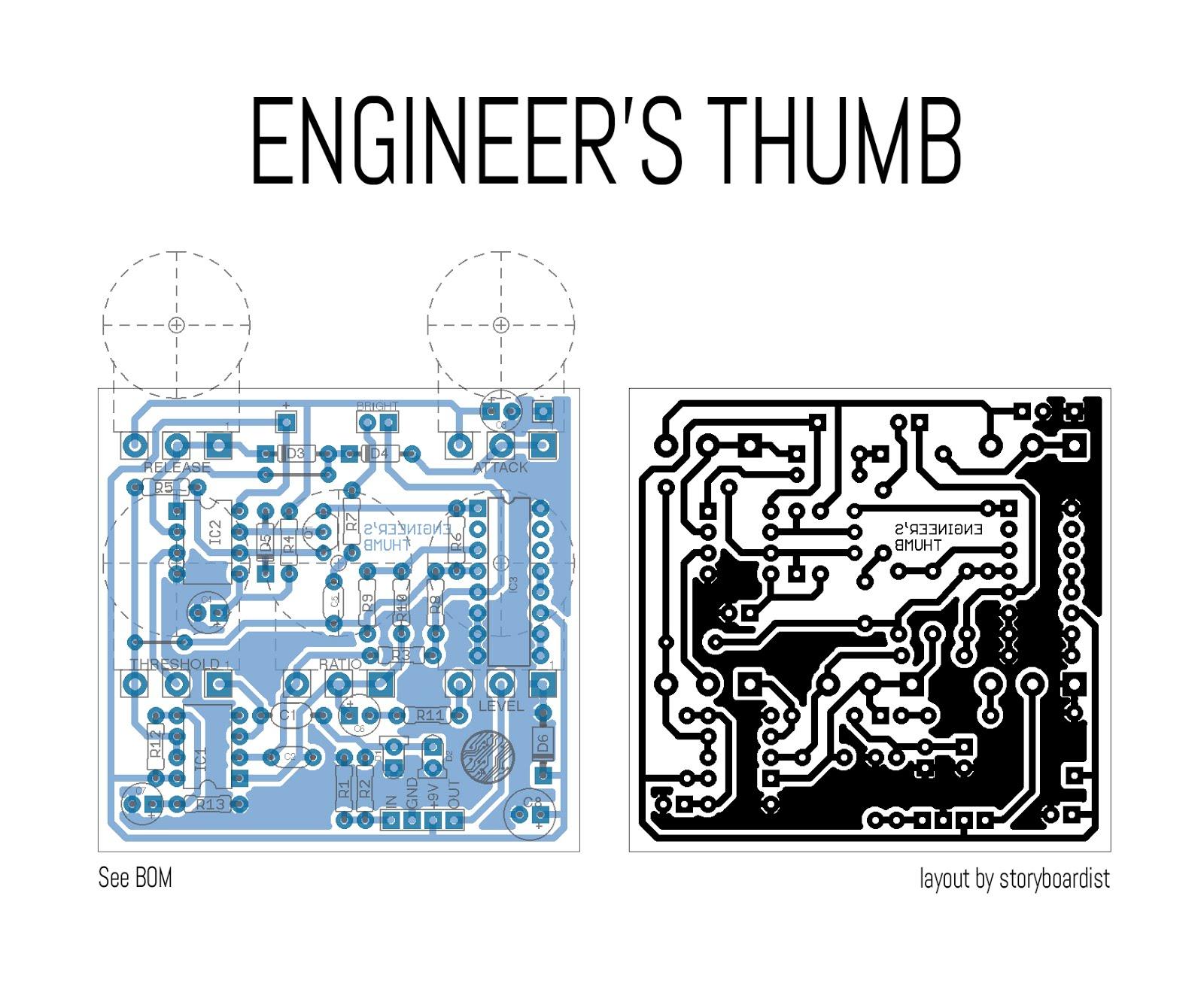

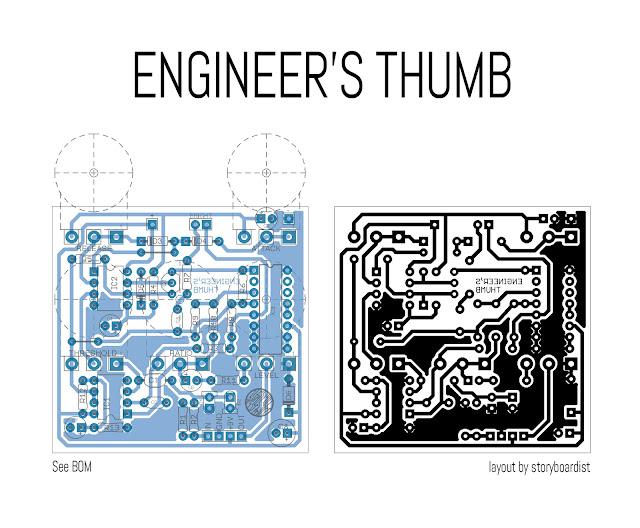

Here’s the 5-knob version of the Engineer’s Thumb compressor. Been meaning to do this one for a while and decided to do it in Eagle. It’s generally considered a Dyna-Comp/Ross Comp killer, and uses one side of an LM13700 chip in place of the old CA3080. This one will fit in a 125B with all 5 pots board mounted. The Bright switch is off board, but that’s just 2 wires. If you don’t feel like etching, you can get a board fabricated off OshPark. Original info on the circuit by the designer can be found here.
