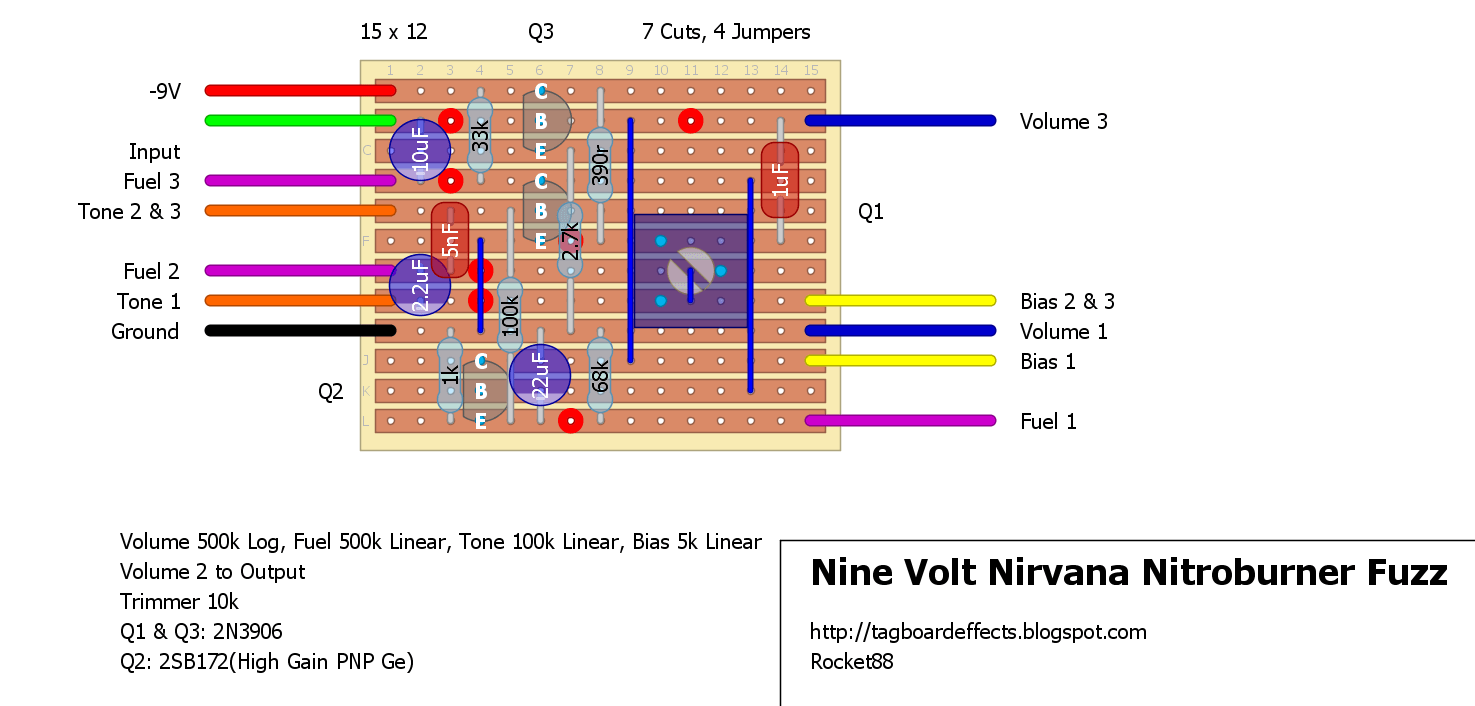

Another from the man, the myth, the legend Joe Gagan. Not much to out there as far as info go, but it’s another fuzz, based on the fuzzface with a bunch of tweaks. The only change I made is i removed the test switch, since I bought anyone wants to wire up a voltmeter in the pedal.
Here’s Joe’s notes on setting up the effect:
- Set the bias pot to 0
- Bias Q2 using the trimmer to -4.2V
- When you change the bias pot it should max out at -7.4V
Note: I put it in the notes, but Q2 should be a high gain PNP Germanium transistor
