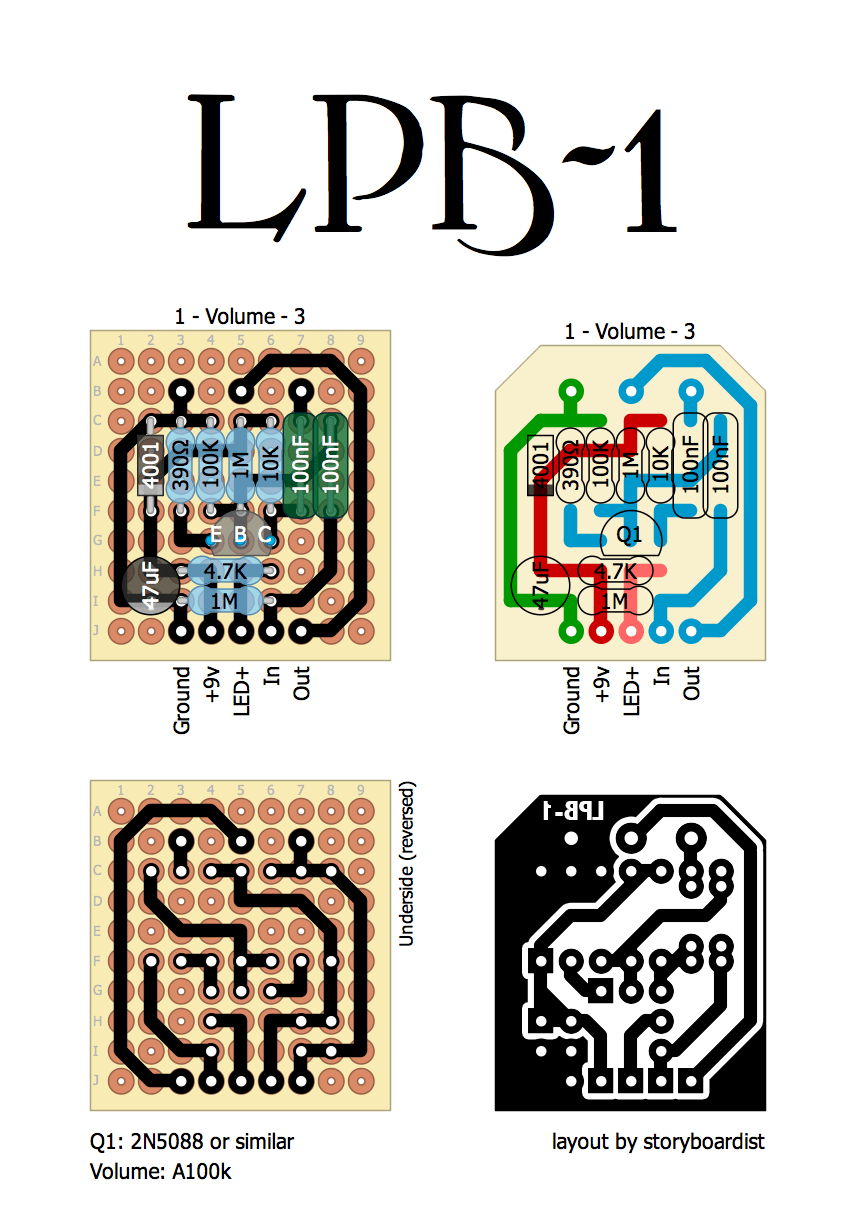

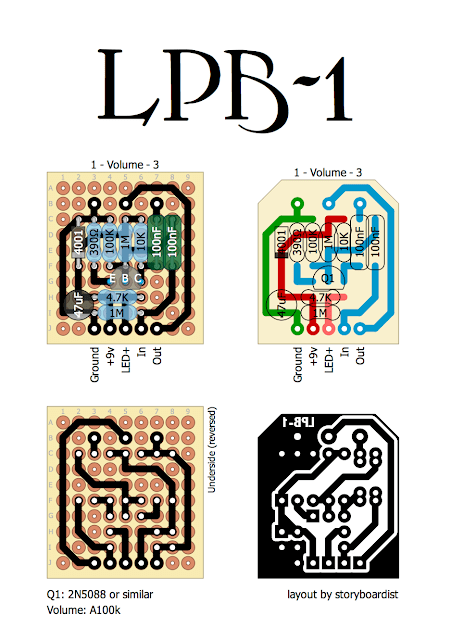

Got a request to redo the LPB-1 with the pot board mounted. Can’t say I’m opposed and it only took about 5 min to layout. 🙂 Easy fit in a 1590A. If you want to make the Screaming Bird treble booster, replace the two 100nF caps with 3.3nF.
Electro Harmonix LPB-1
