“A boutique pedal homage to the unique onboard overdrive circuit in
vintage solid state Vox Conqueror amps that George Harrison used on the
White Album and other Beatles recordings. The White Pedal has four
knobs that control volume (overdrive), gain (fuzz), treble cut, and a
bass cut knob that acts as a mid-boost, while a fifth knob (the Yoko
knob) selects the midrange frequency to boost for a parked wah sound“

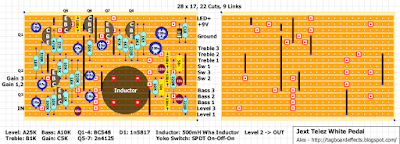

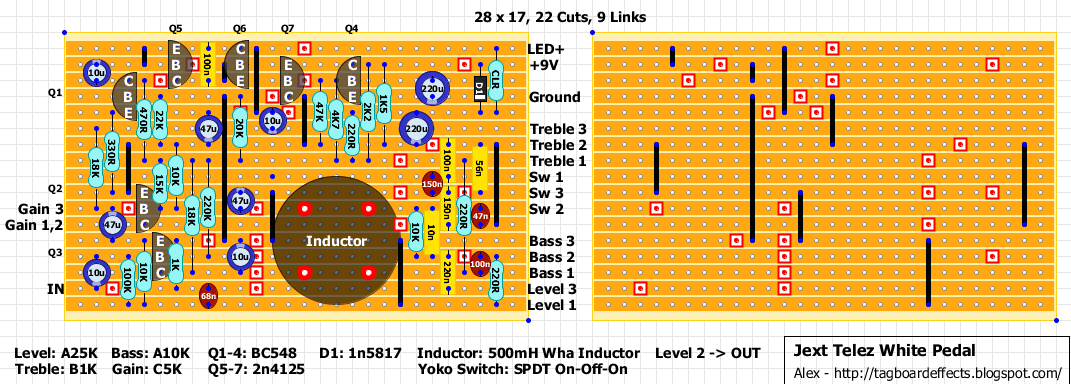

Original FSB thread and schematic available here.
Schematic should be correct but it’s not verified yet.
