Zendrive c1b2515d9bb2

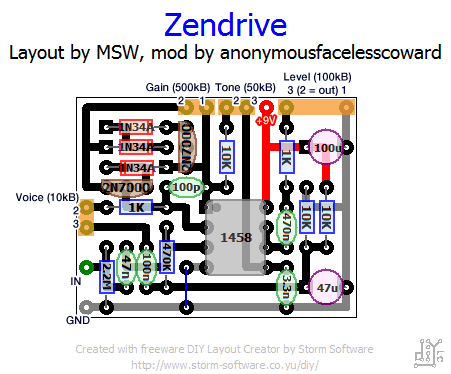

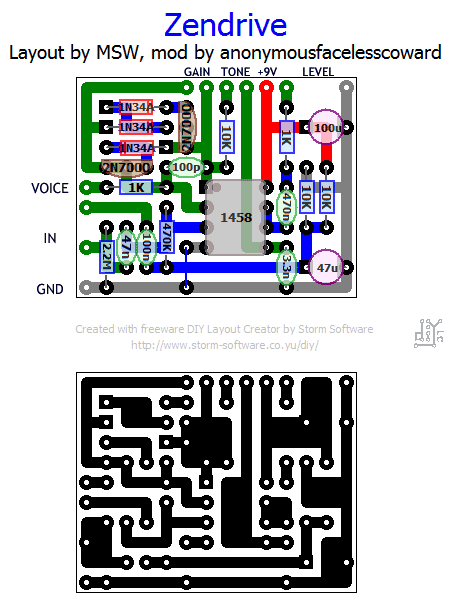

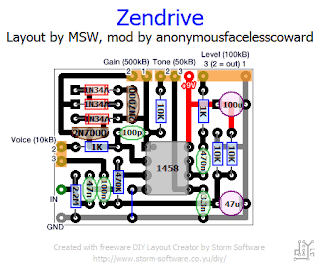

Zendrive / Zen Drive – Dumble -esq Pedal Build / Layout

2 Jun 202617 Feb 2018 by chords

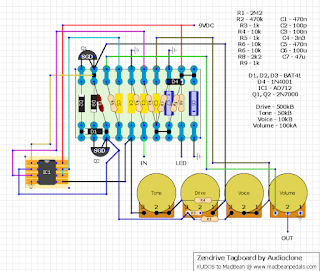

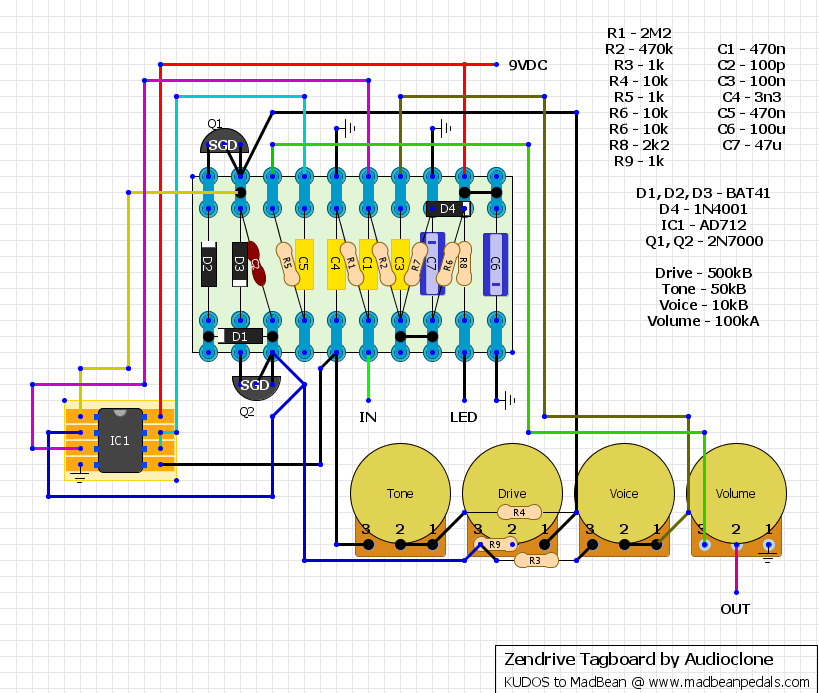

POINT TO POINT ZEN DRIVE
