Xotic BB Preamp Layout / Schematic / Tag Board

2 Jun 20265 Mar 2018 by chords

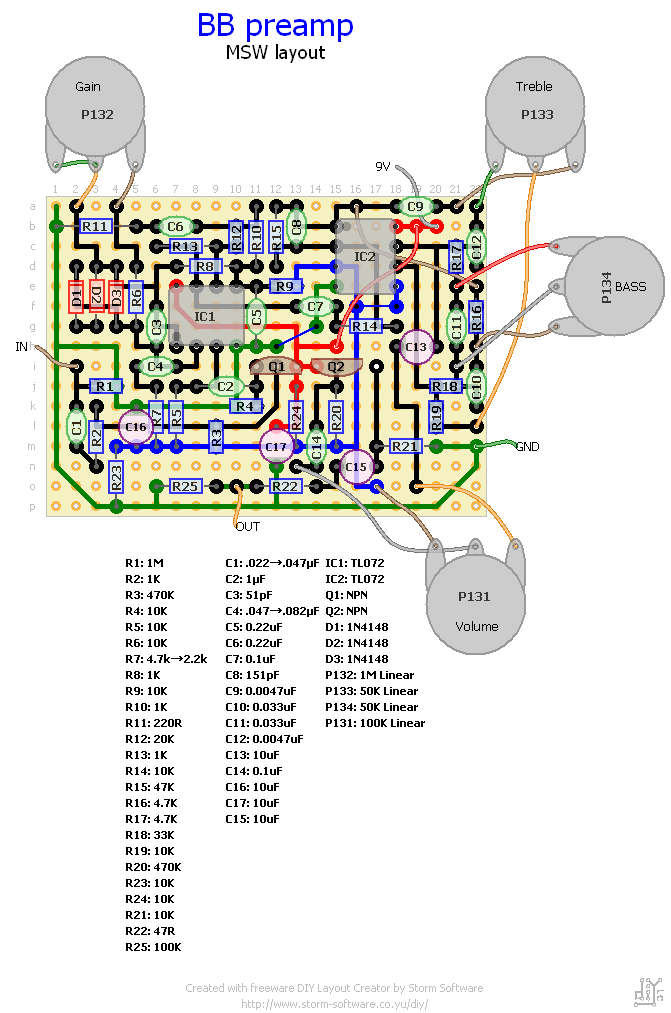

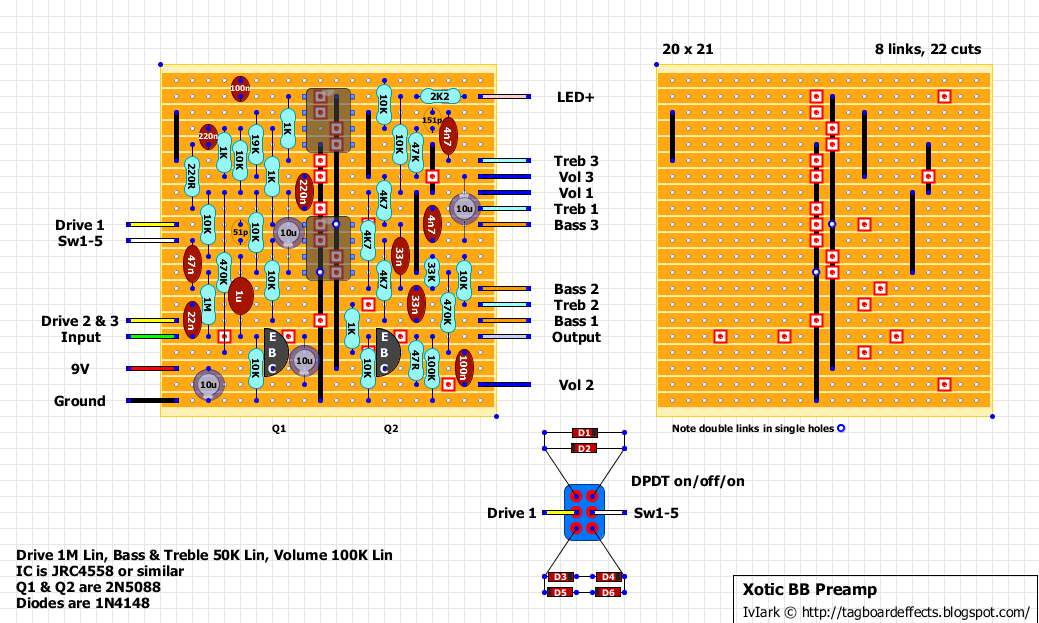

Vero Board Layout / Tag Board:

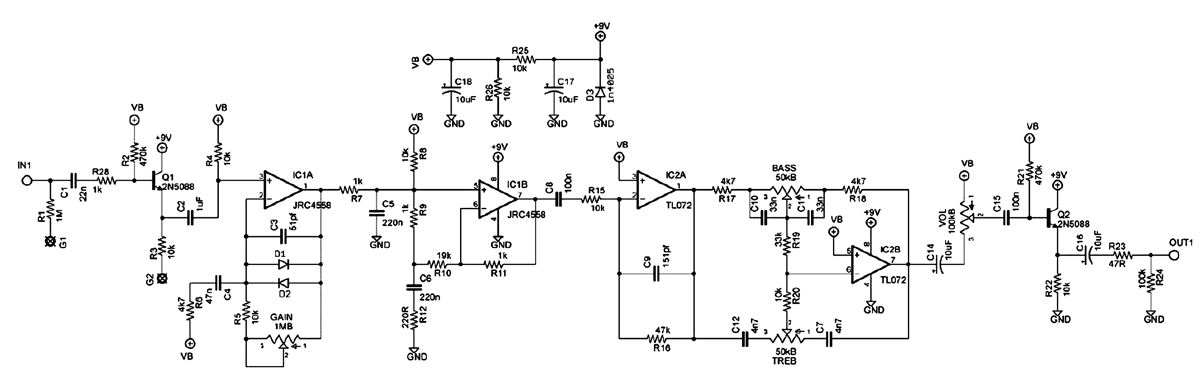

Schematic : BB Preamp / Xotic

Categories Uncategorized Tags guitarpedalbuilders
