BearFoot FX Emerald Green Distortion Machine
Unique little distortion box from Bjorn. The original uses 1A1200 diodes (which are pretty big), but other (and smaller) silicon diodes can be used. Should fit nicely in a 1590B.
Month: July 2018
Run Off Groove Whisker Biscuit
For Fuzz Friday here’s the Run Off Groove Whisker Biscuit–Big Muff meets Bazz Fuss. From the ROG site: The Whisker Biscuit is a hybrid of the Bazz Fuss and the Big Muff Pi. A single Bazz Fuss stage replaces the two clipping stages of the BMP. Smooth, super-long sustain, and good clean-up with the guitar volume knob … Read more

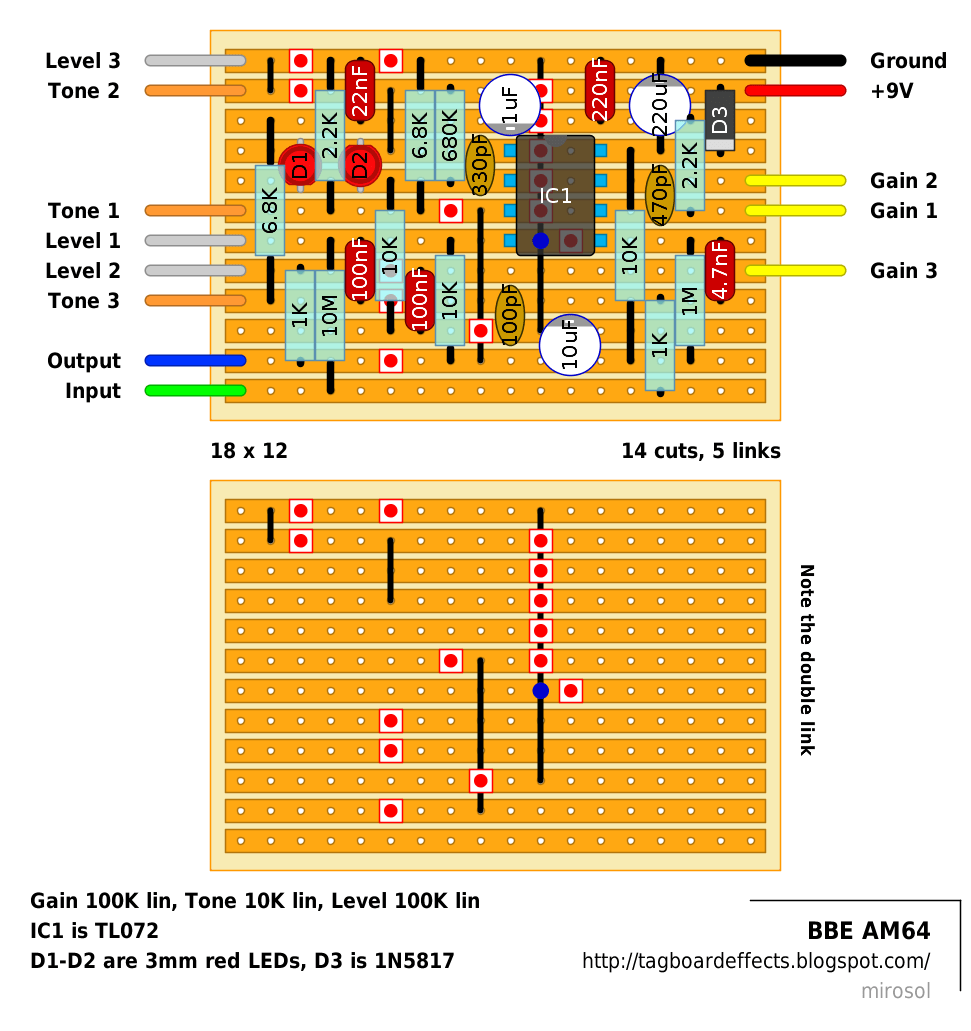

BBE AM64 ( American Metal )
The input cap (4n7) could be upped to at least 22n and there are other things one could do to this too. Clipping on a switch and so on. The power filter cap is 1000µF in the original unit, but i left it at 220µ for this layout. Both of those values are a overkill. … Read more

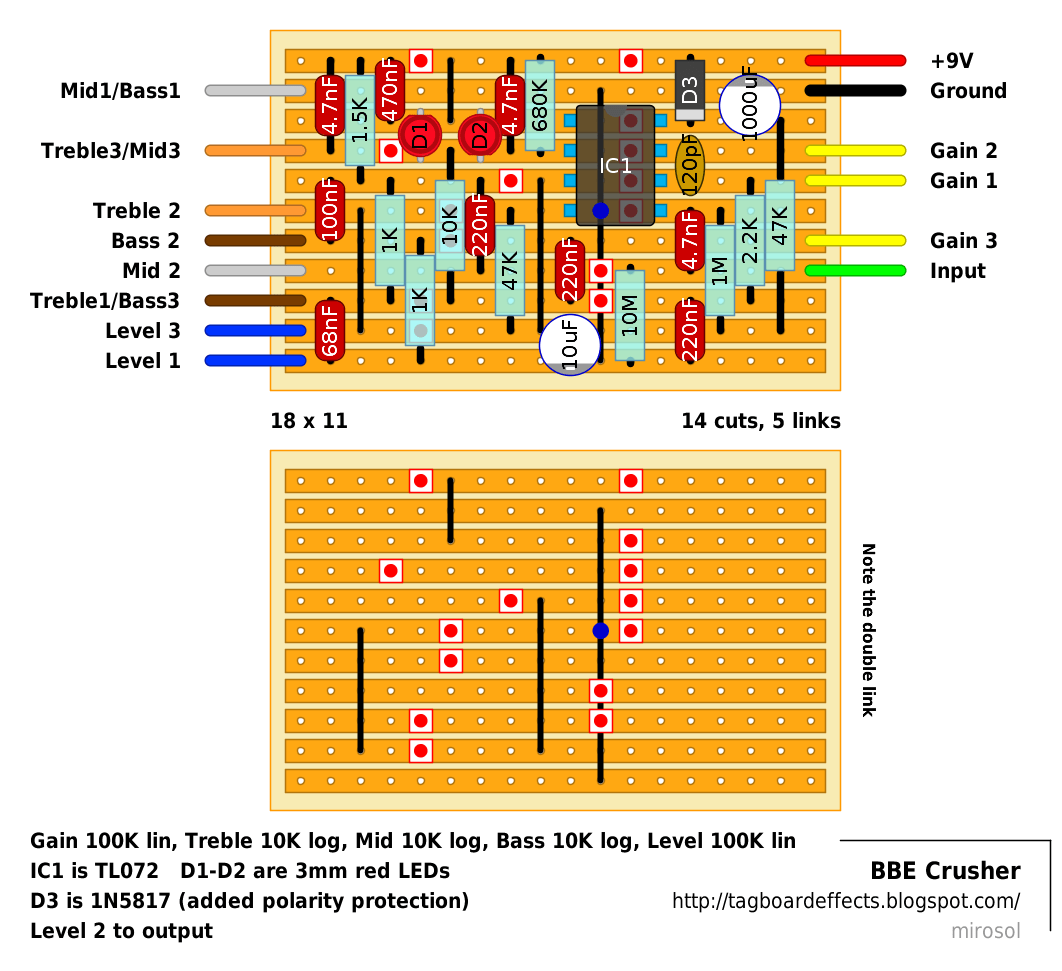

BBE Crusher ( Marshall Guv’nor variant ) Vero Layout
For Power supply cap you can also so use 47µ, 100µ or 220µ instead of the 1000µ.
