Earthquaker Devices Tentacle 8d17964f29ae

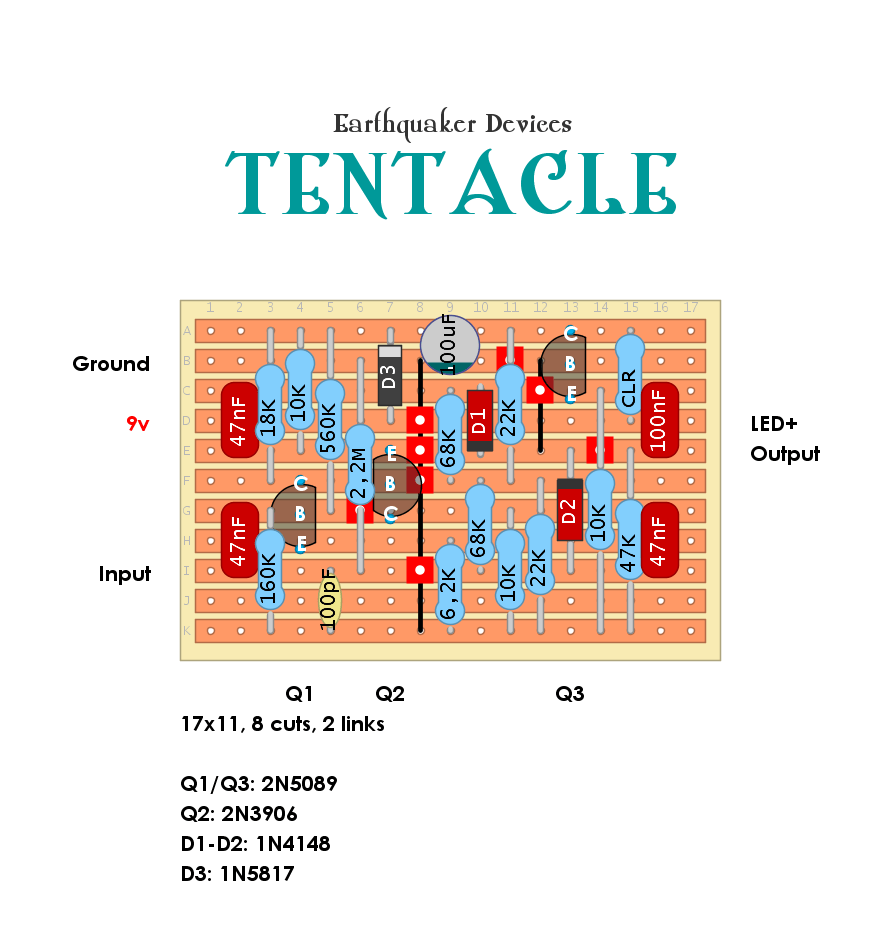

Earthquaker Devices Tentacle

4 Jun 202617 Aug 2019 by chords

Finally updated with orientation of Q2 corrected.

Categories Uncategorized Tags dirtboxlayouts, EarthQuaker Devices, Octave, Verified
