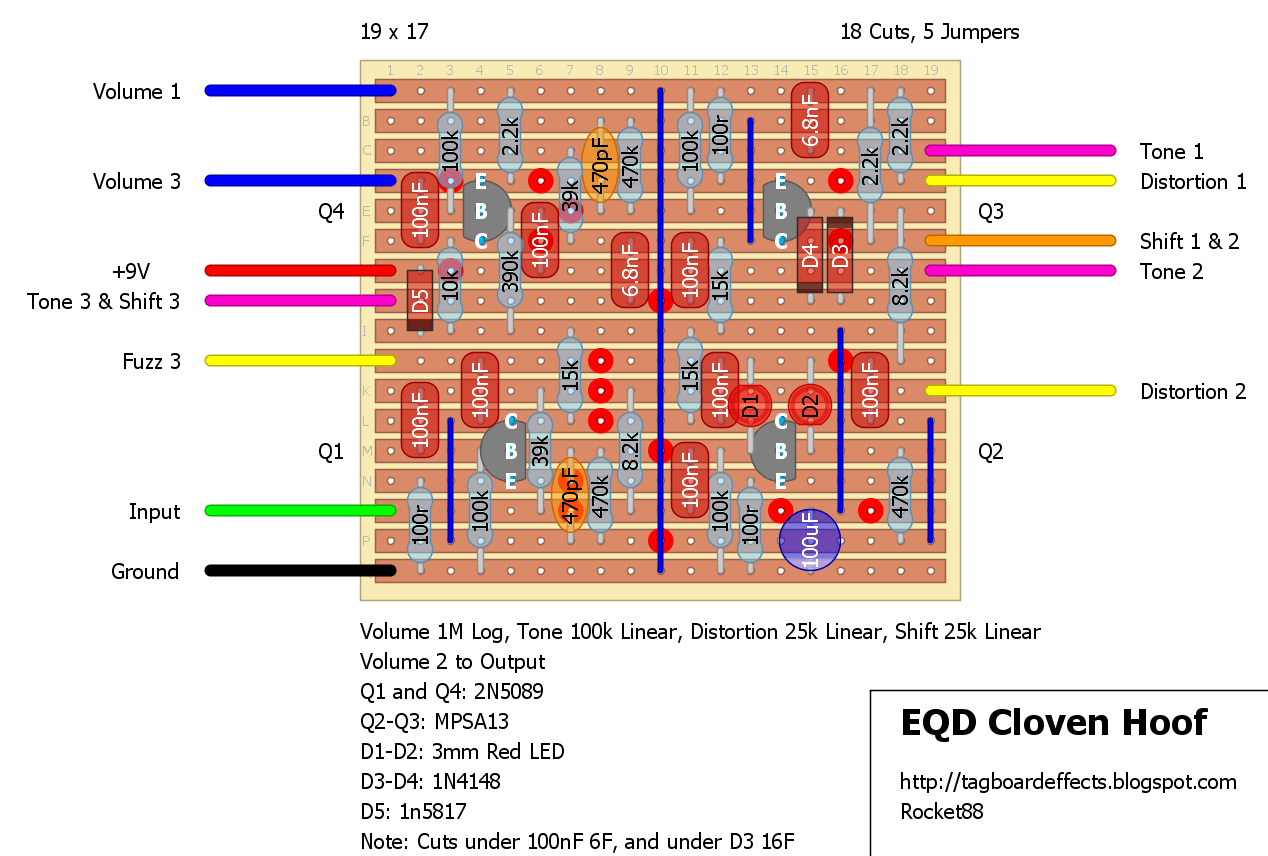

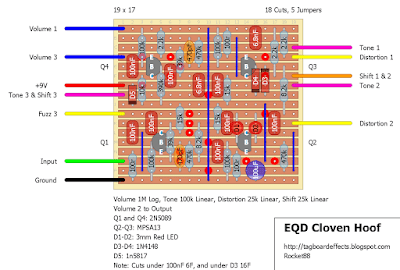

Sorry for such a long delay in publishing some new layouts, there’s been a lot of changes going of for me which has taken up a lot of my time to sit and make some new layouts. Shortened version: became a doctor, had my first child with my wife, got a new job practicing, lots of home projects around the house, and COVID. Here’s the first of many new ones from me coming at you. Figured I’d start with something familiar to all the fuzz lovers out there, as you can never have enough muffs.
From the Source:
The Cloven Hoof is an extension of Earthquaker Devices popular Hoof
fuzz, only more… cloven. Earthquaker kept the clarity of the Hoof along
with the wide range of dirt tones and redesigned everything around it.
The Cloven Hoof delivers a grittier, more bass heavy tone with more
crunch that can not be achieved with the standard Hoof. They did away
with the germanium transistors and replaced them with 4 specially
selected silicon transistors for higher gains, cleaner cleans and
improved temperature stability. The fuzz control has four times the
range of the regular Hoof, it will go from completely clean to an all
out fuzz fury with more grind at the top end of the dial. The tone
control has been refined to allow a more even sweep with enough mids to
handle all the additional low end. The shift control still boosts or
cuts the mids and there is still a TON of output on tap. The Cloven Hoof
is the perfect solution for those of you who always wished the Hoof had
more. Each Cloven Hoof is made by hand in the majestic mountain top
village of Akron, Ohio.
Controls
Fuzz: Clockwise for heavy, counterclockwise for light.
Tone: Bass to the left, Treble to the right.
Level: Use this control to make the Cloven Hoof louder or quieter.
Shift: This adjusts the mid content, clockwise for scooped mids, counterclockwise for boosted.
