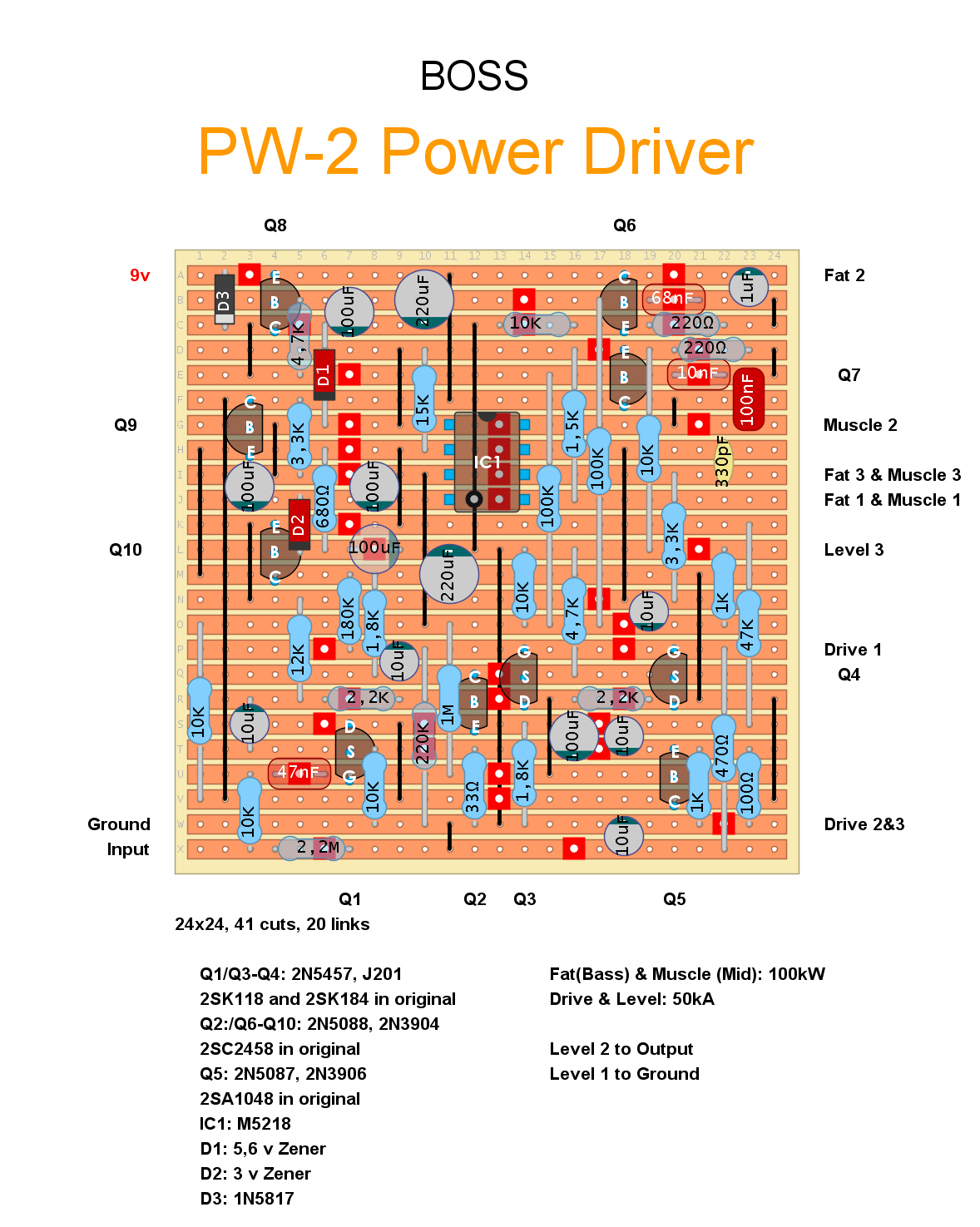

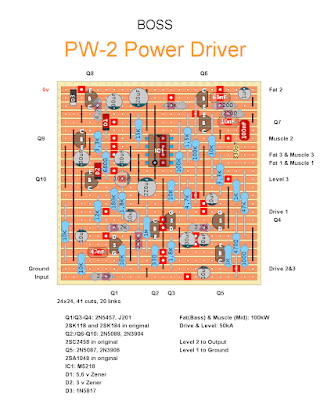

Boss PW-2 Power Driver

4 Jun 202629 Nov 2020 by chords

*Update 221110*

Corrected two resisor values and Zener diode values according to the a new schematic.

Categories Uncategorized Tags Boss, dirtboxlayouts, Distortion, Fuzz, Verified
