UNIVOX: SQ-150 Square Wave

by

I started this layout ages ago and never finished it for some reason – anyways, here it it, the Univox SQ-150 Square Wave.  Mark Hammer mods included below.


UNIVOX SQ-150 SQUARE WAVE – VERO LAYOUT

UNIVOX SQ-150 SQUARE WAVE - GUITAR EFFECT VERO LAYOUT

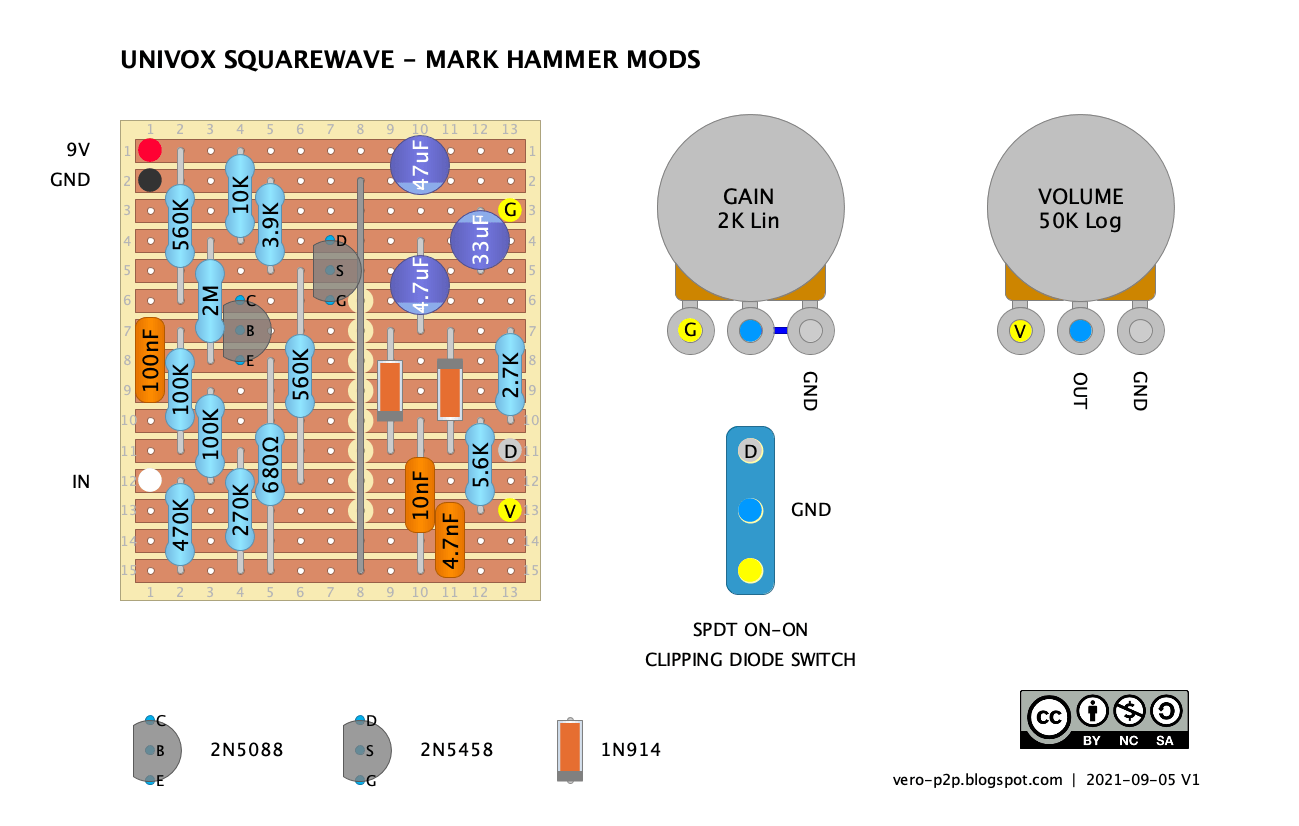

UNIVOX SQ-150 SQUARE WAVE – MARK HAMMER MODS – VERO LAYOUT

UNIVOX SQ-150 SQUARE WAVE - MARK HAMMER MODS - VERO LAYOUT

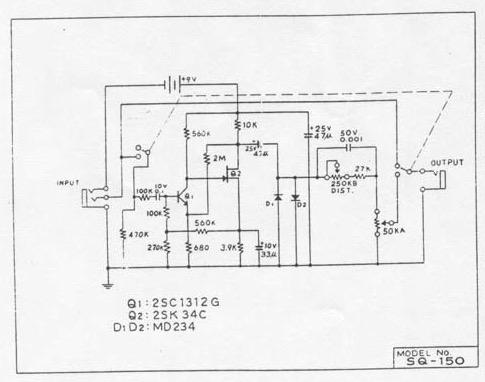

ORIGINAL SQUARE WAVE SCHEMATIC

UNIVOX SQUARE WAVE SCHEMATIC
