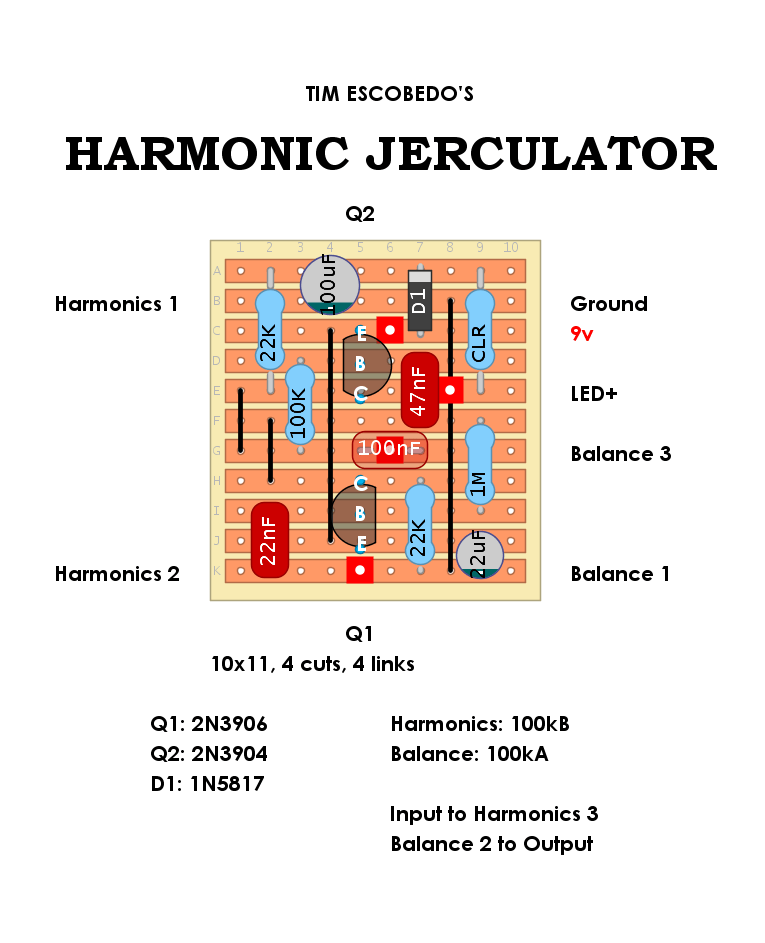

Tim Escobedo Harmonic Jerculator

13 Jun 202623 Feb 2022 by chords

Tim Escobedo’s take on the rare Harmonic Percolator. Simple with no mojo parts in sight.

Categories Uncategorized Tags dirtboxlayouts, Escobedo, Fuzz, Overdrive, Verified
