Another day, another compressor layout…  This is a Dan Coggins design, the Dinosaural OCT-201 Opticompressor, and the predecessor to the Thorpy Fat General, which was also designed by Dan.

Not many of these are around, as it was only made in a short run.

Schematic and tracing journal on Aion FX.

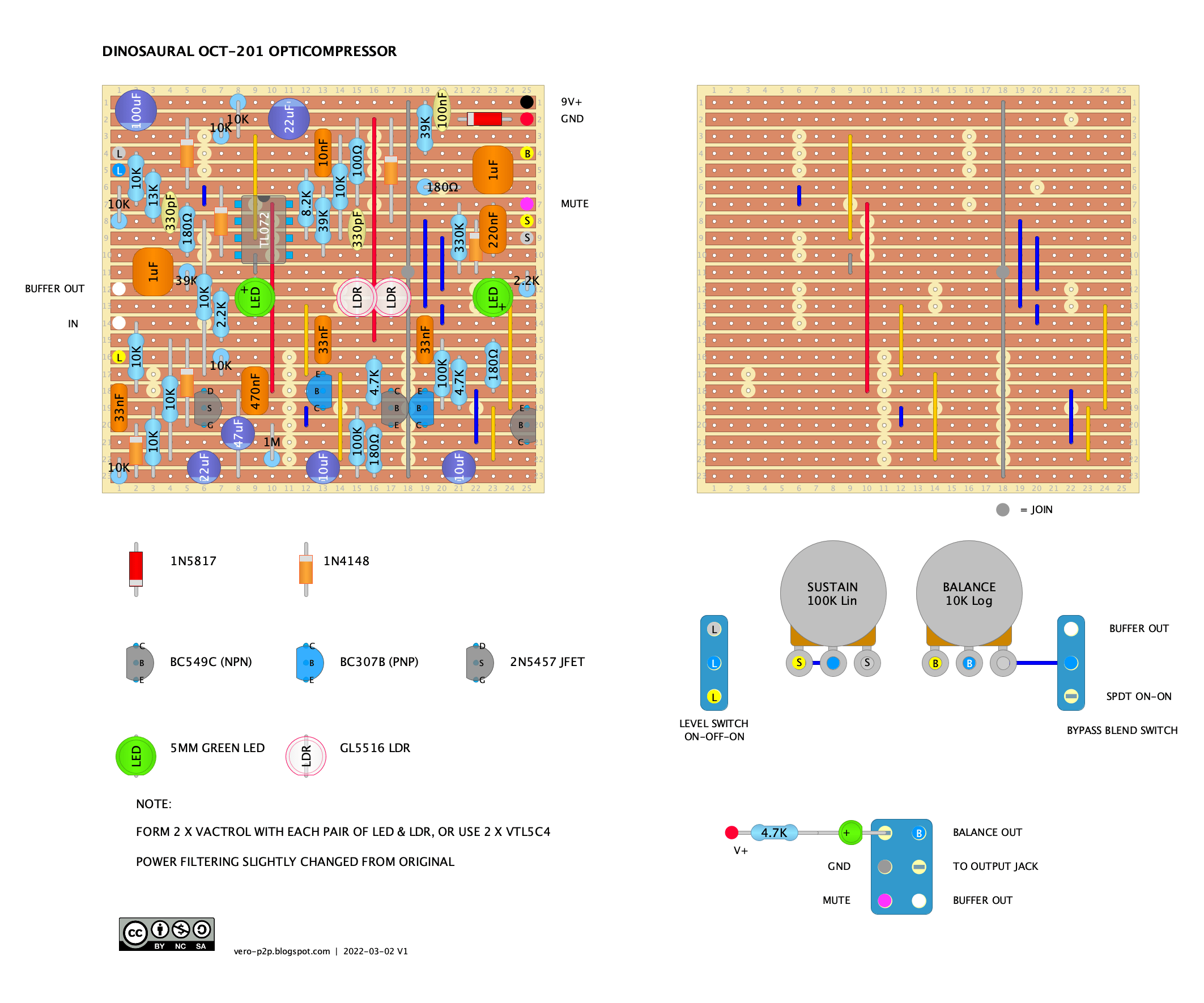

DINOSAURAL OCT-201 OPTICOMPRESSOR – VERO LAYOUT
