Fender pugilist 41afc681514d

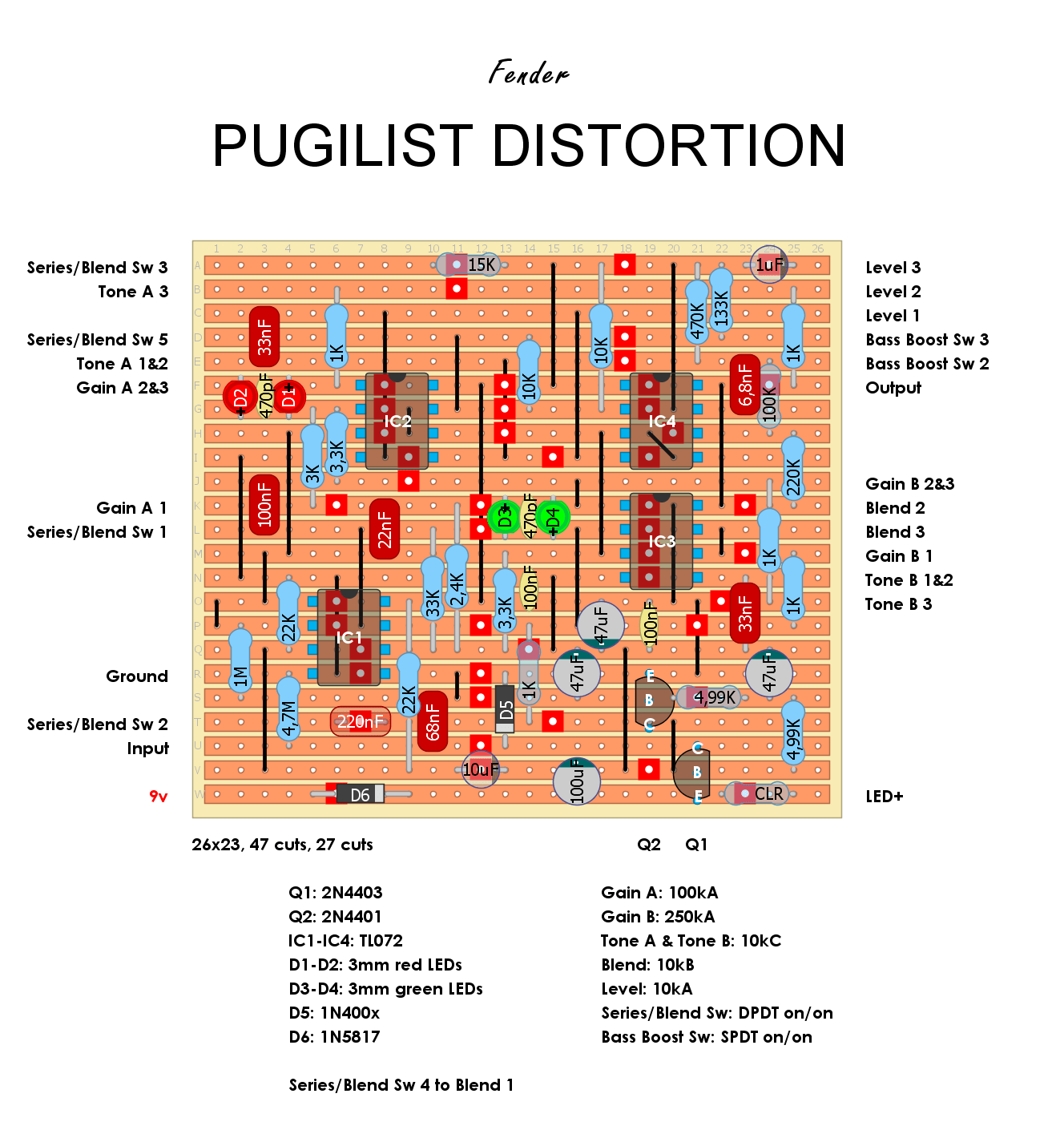

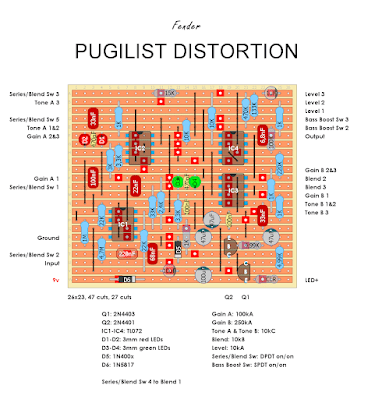

Fender Pugilist Distortion

13 Jun 20264 May 2022 by chords

Schematic and circuit description is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, Distortion, Fender, Verified
