Lastgasp Octavella 9945bf2af4bc

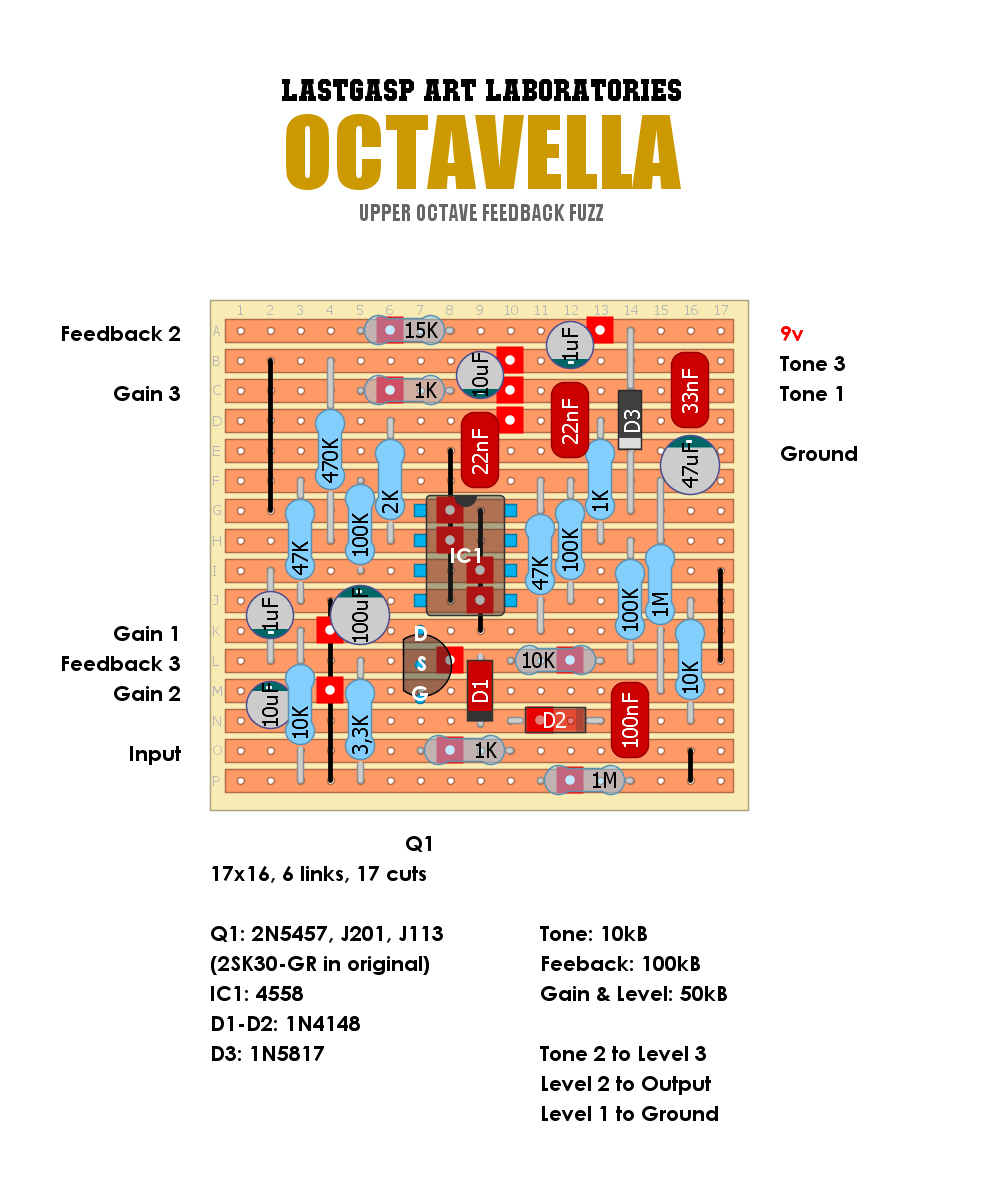

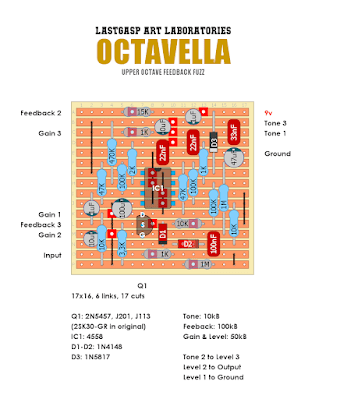

Lastgasp Art Laboratories Octavella

4 Jun 202620 May 2022 by chords

Schematic is avaiable at Deadend Fx.

Categories Uncategorized Tags dirtboxlayouts, Fuzz, Lastgasp Art Laboratories, Noise, Octave, Verified
