Bearfoot BJFe Pale Green Compressor 1212b2037992

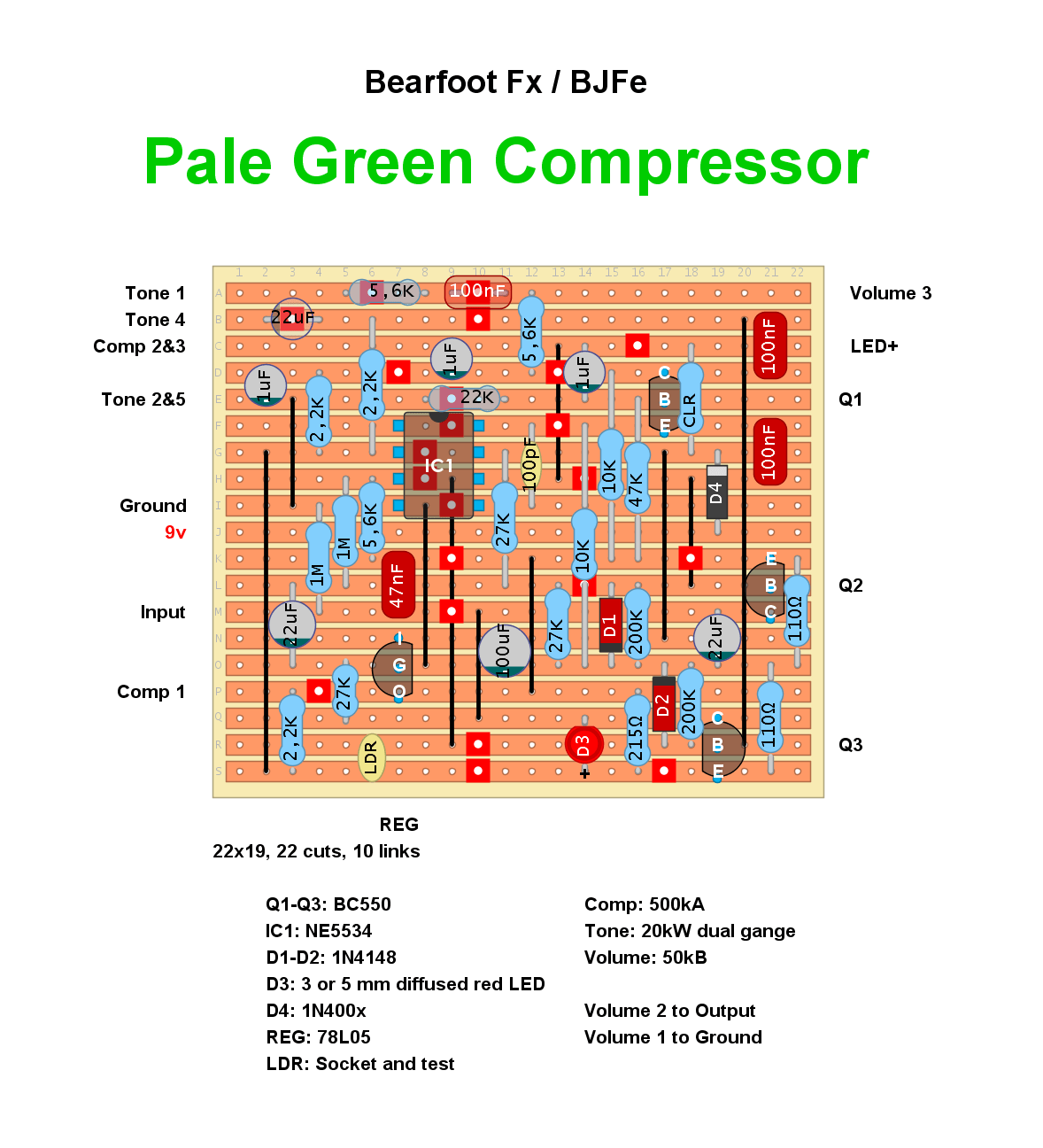

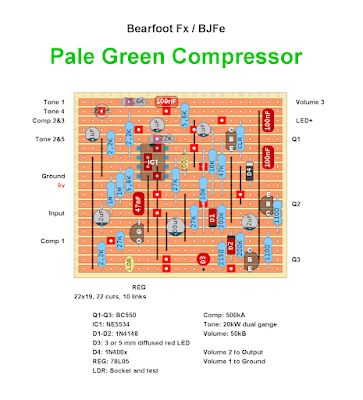

Bearfoot Fx / BJFe Pale Green Compressor

13 Jun 202610 Jul 2022 by chords

Schematic is avaiable HERE.

Categories Uncategorized Tags BJF/MP/Bearfoot, Compressor, dirtboxlayouts, Verified
