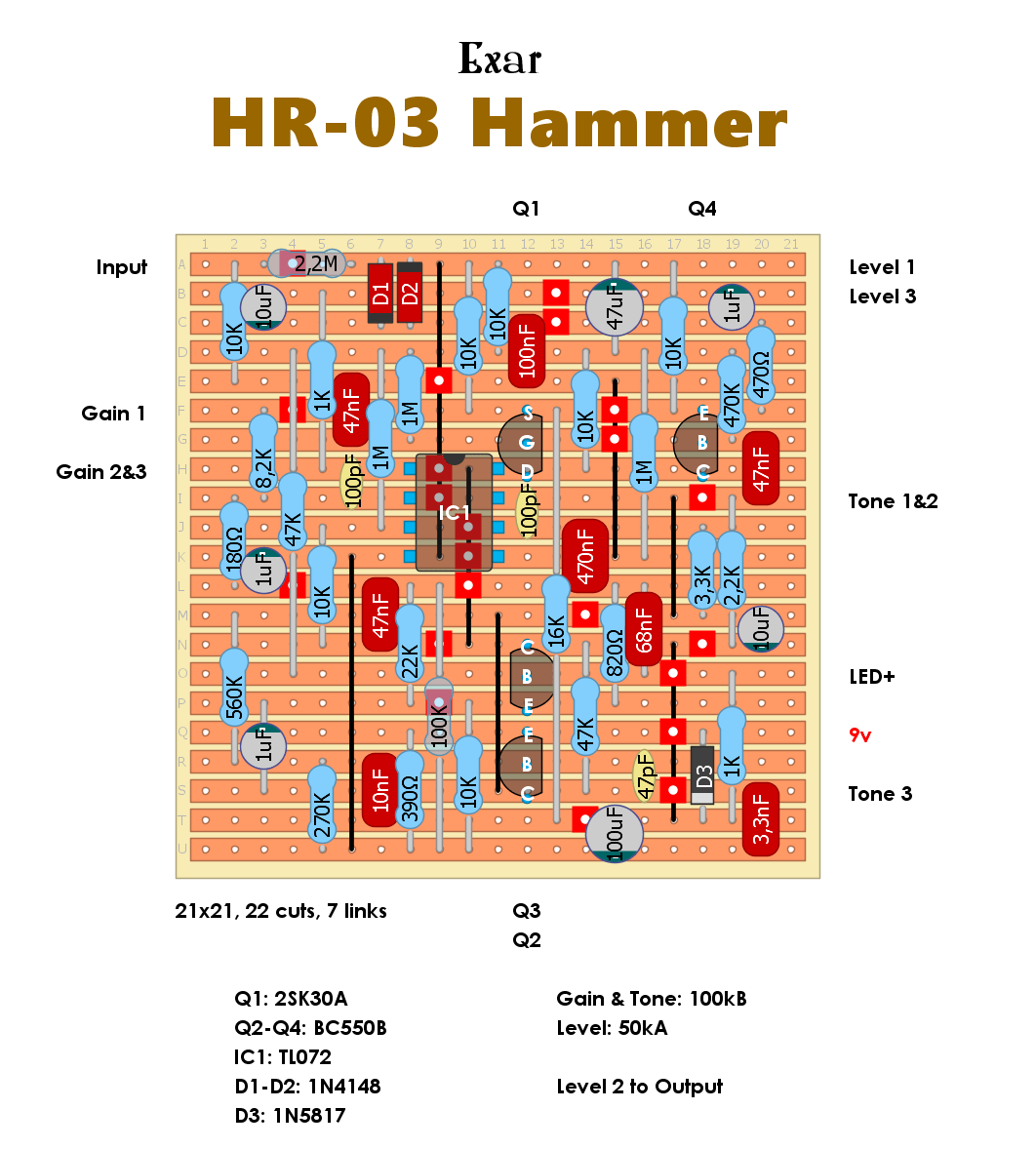

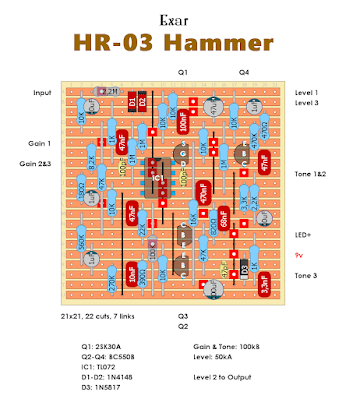

An old polish distortion which is based on Ibanez Trash Metal. Which is basically a buffered and boosted Rat circuit with an additional fixed gyrator EQ stage after the distortion circuit.
Schematic is avaiable HERE.
