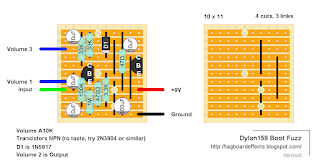

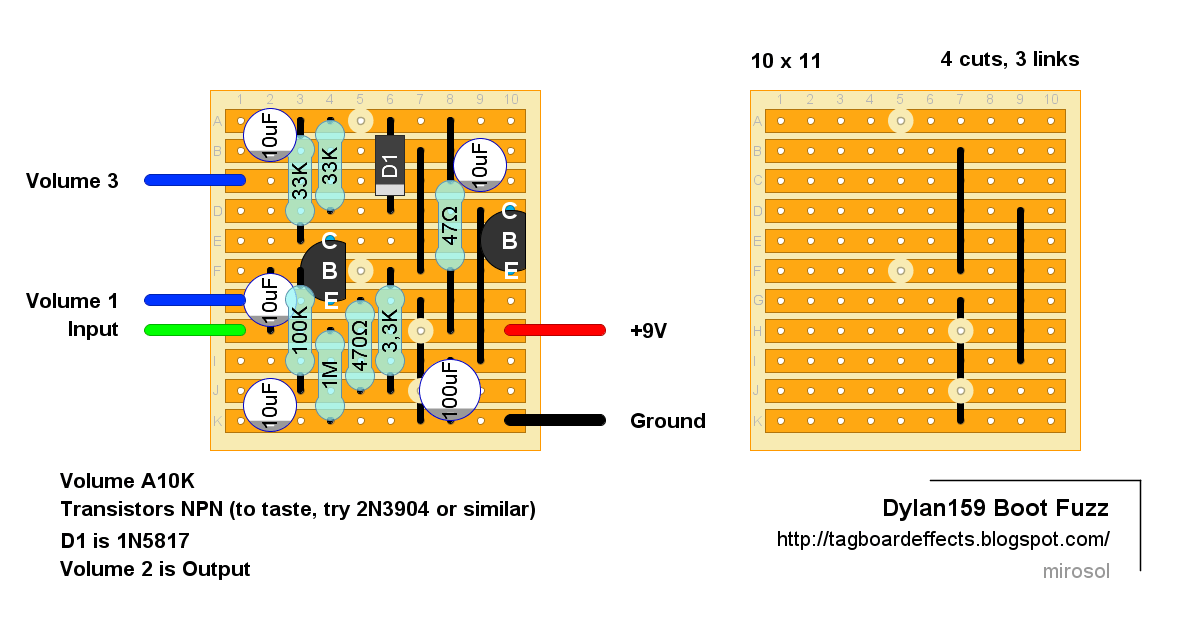

2023. How the heck are we still alive.. No matter. Let’s do another layout or two. This time, another nice, loud little circuit from Dylan159’s Unrealeased Circuits – From the source:
Boot Fuzz. I found this simple old-school microphone preamp, and noticed the similarity with the Fuzz Face, also claimed to be based around a microphone preamp, but in this case the second stage is an emitter follower bootstrapping the load of the first for big gains. So I thought why not fuzzing it up by increasing the gain? This ends up being similar to an Escobedo circuit, but with a different, more stable biasing.
