Browne Amplification Protein Blue Channel 56095281cd77

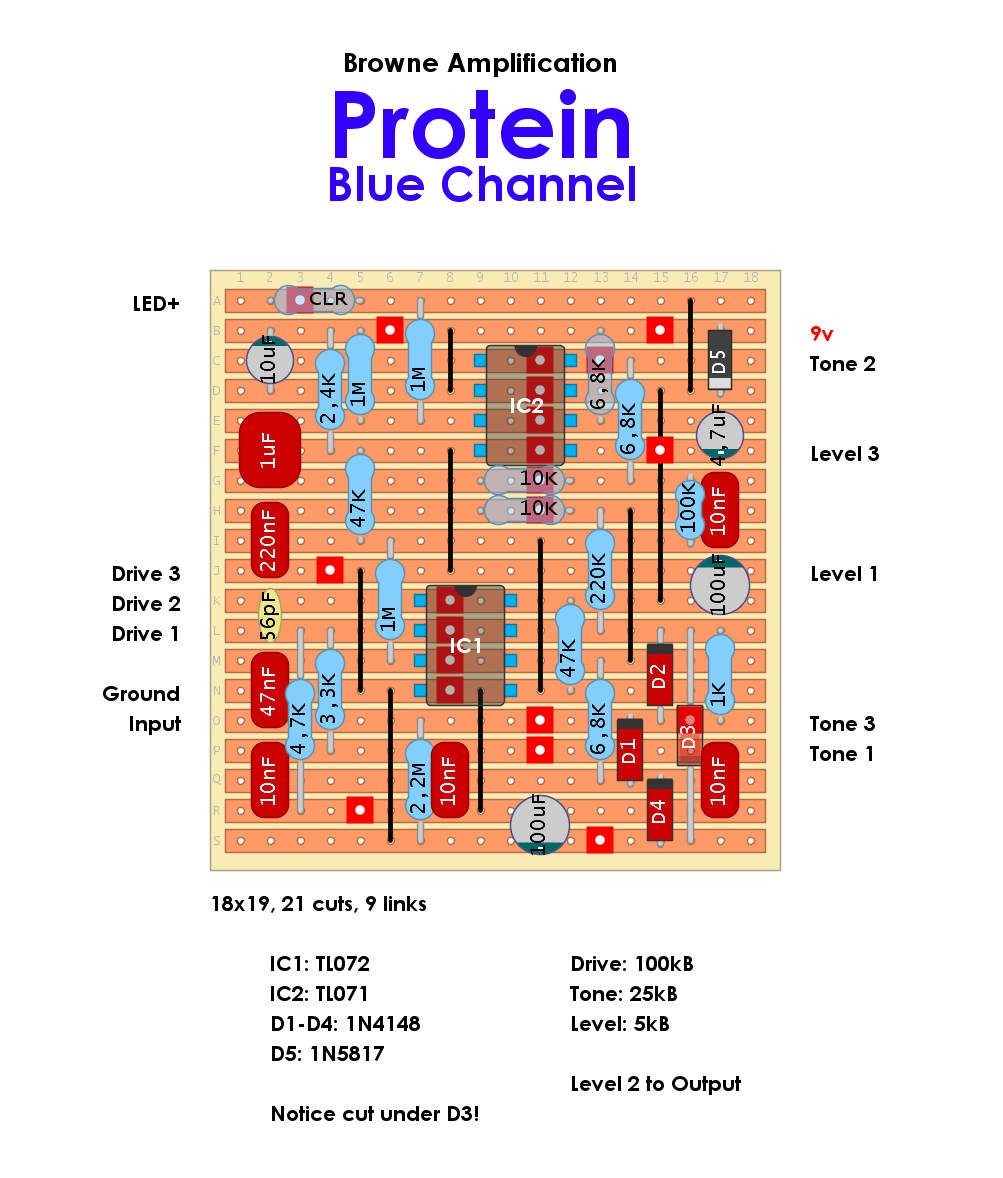

Browne Amplification Protein Blue Channel

4 Jun 202617 Feb 2023 by chords

Schematic is avaiable HERE.

Categories Uncategorized Tags Browne Amplification, dirtboxlayouts, Overdrive, Verified
