DigiTech Bad Monkey 516ea714758c

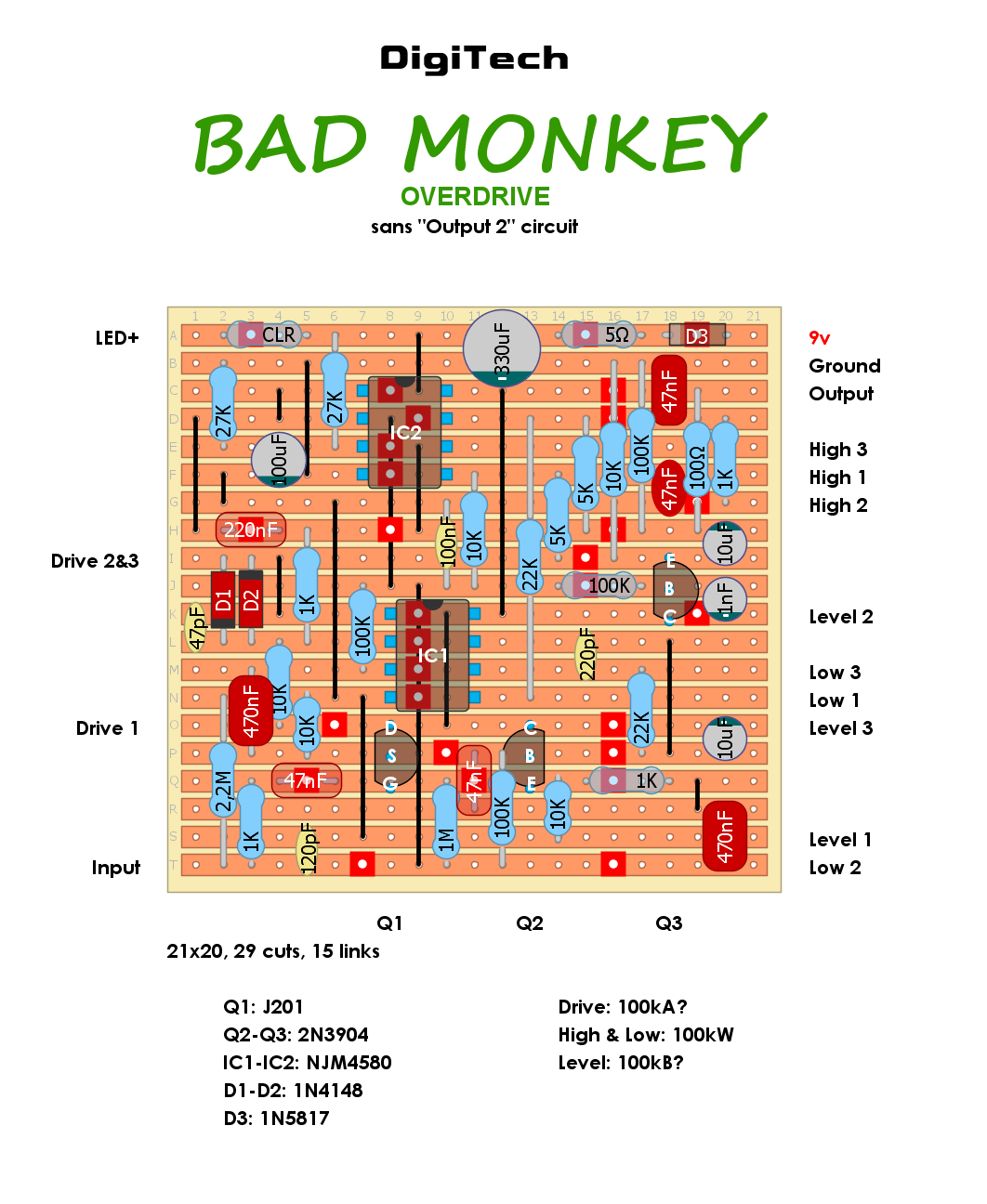

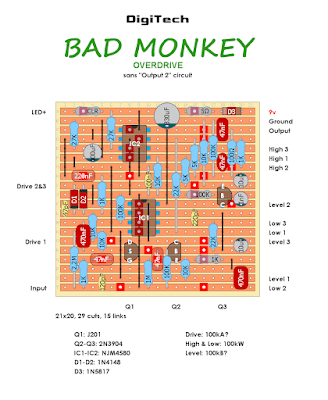

DigiTech Bad Monkey Overdrive

13 Jun 202618 Mar 2023 by chords

Schematic is avaiable HERE.

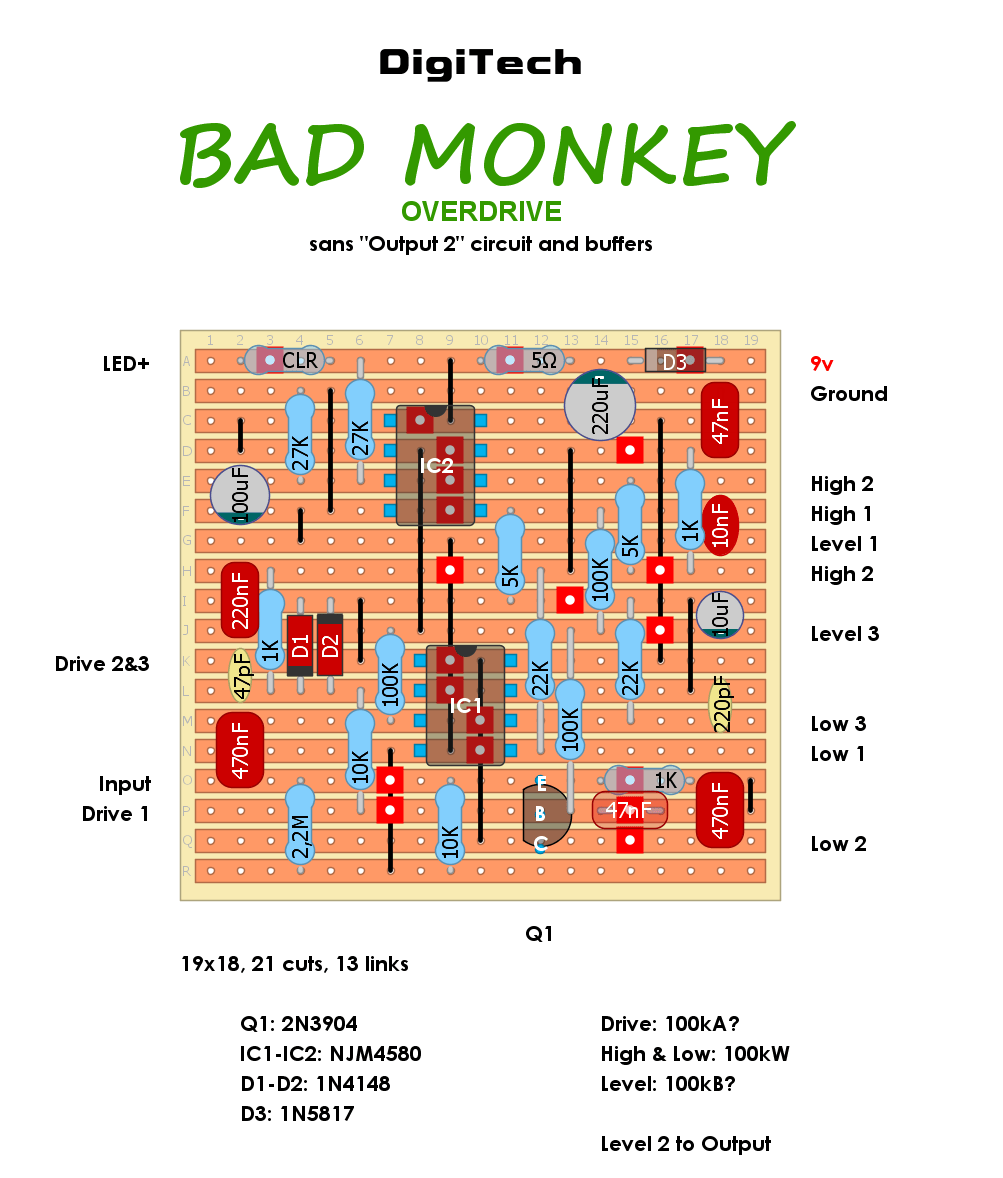

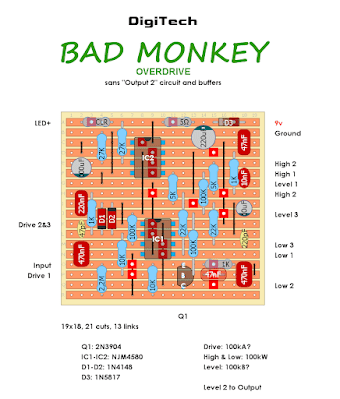

And a requested layout without input and output buffers

Categories Uncategorized Tags DigiTech, dirtboxlayouts, Overdrive, Unverified
