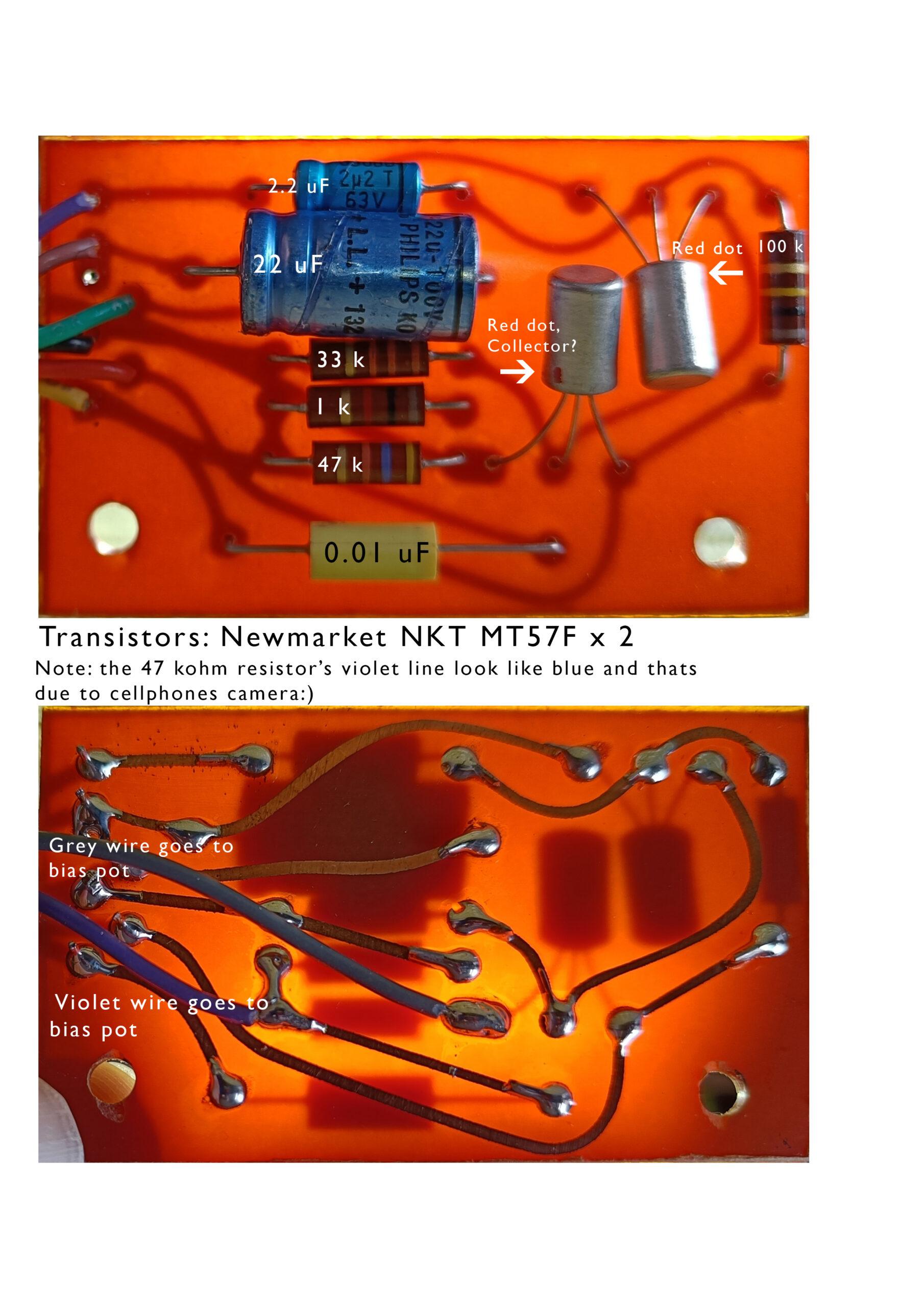

A request from Mikko, who had very kindly done all of the tracing work – very nice job by the way, and photos below.

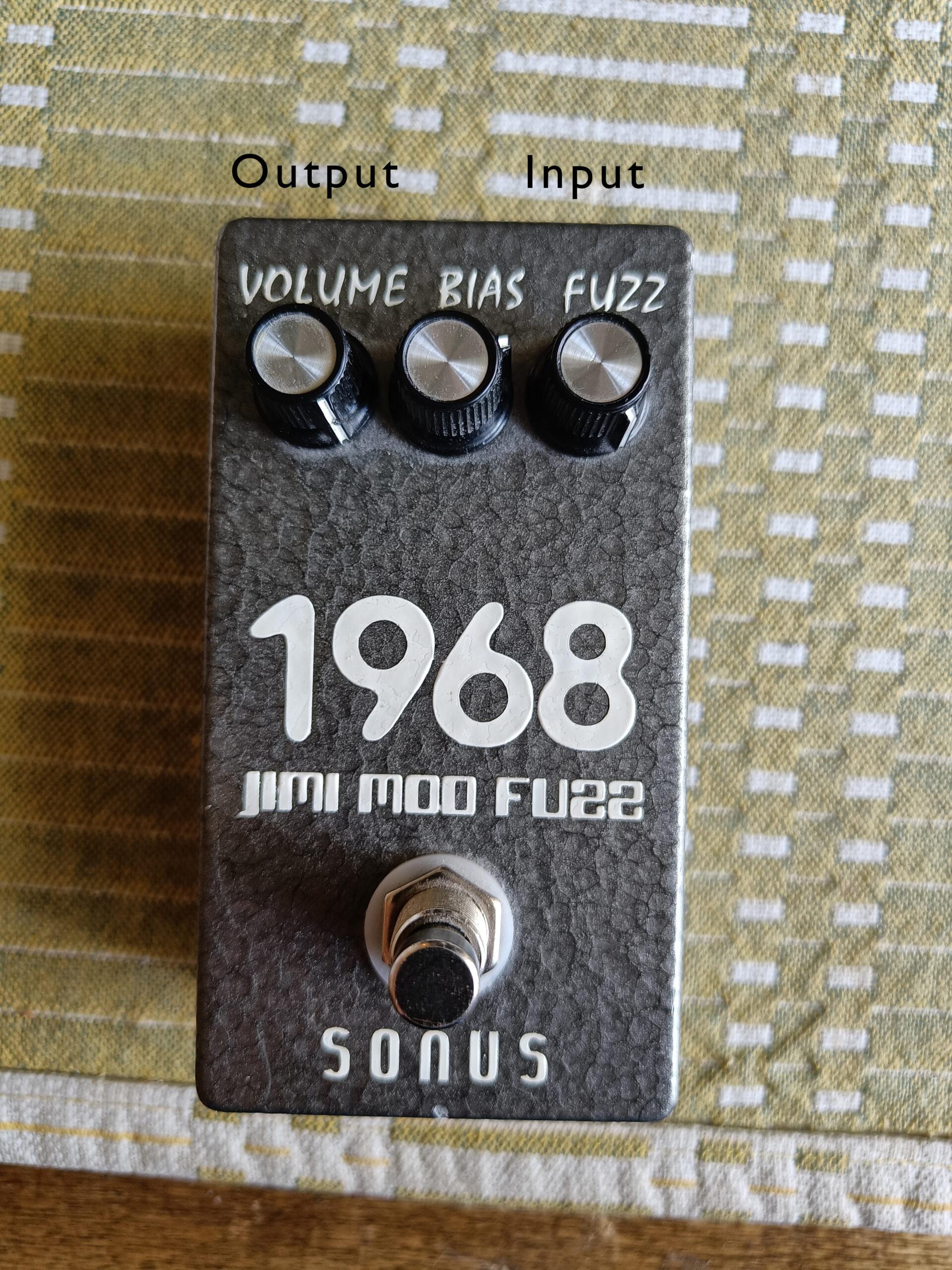

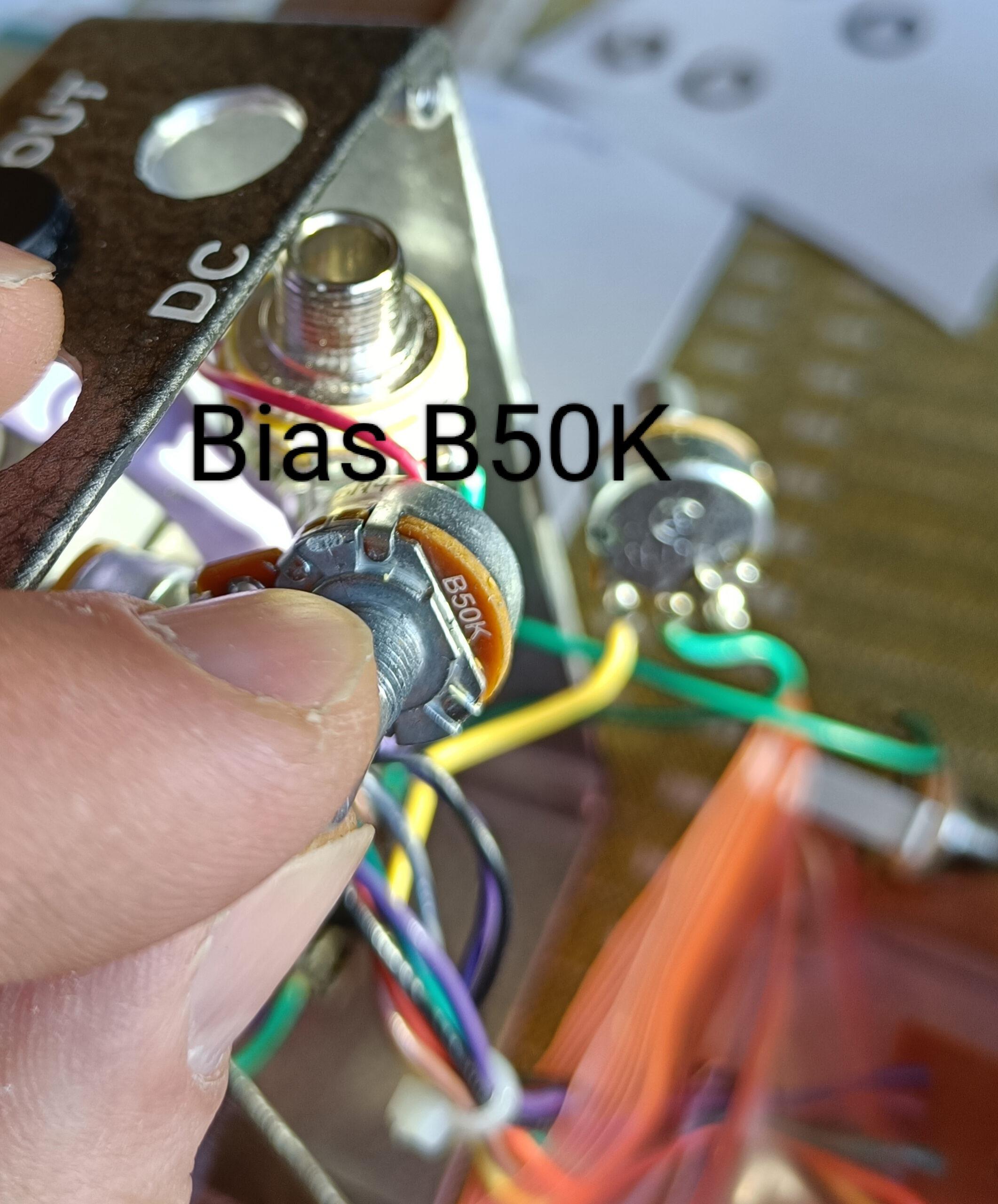

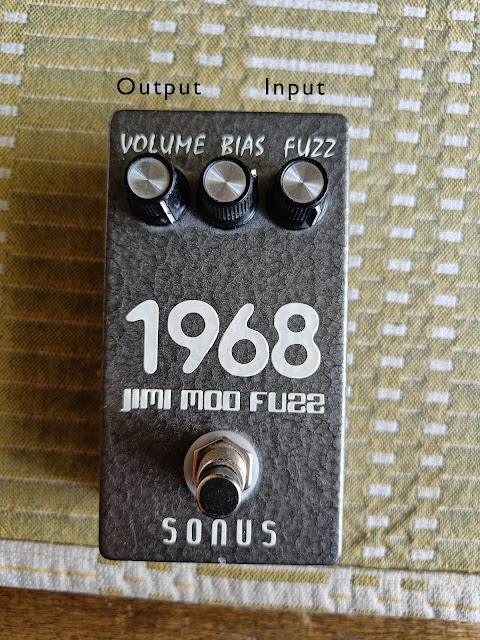

It’s a Fuzz Face from Sonus using NKT MT57 germanium transistors, with an external bias pot and a couple of different component values (Jimi mods) – 2k fuzz pot and a 1k resistor instead of 470ohm.

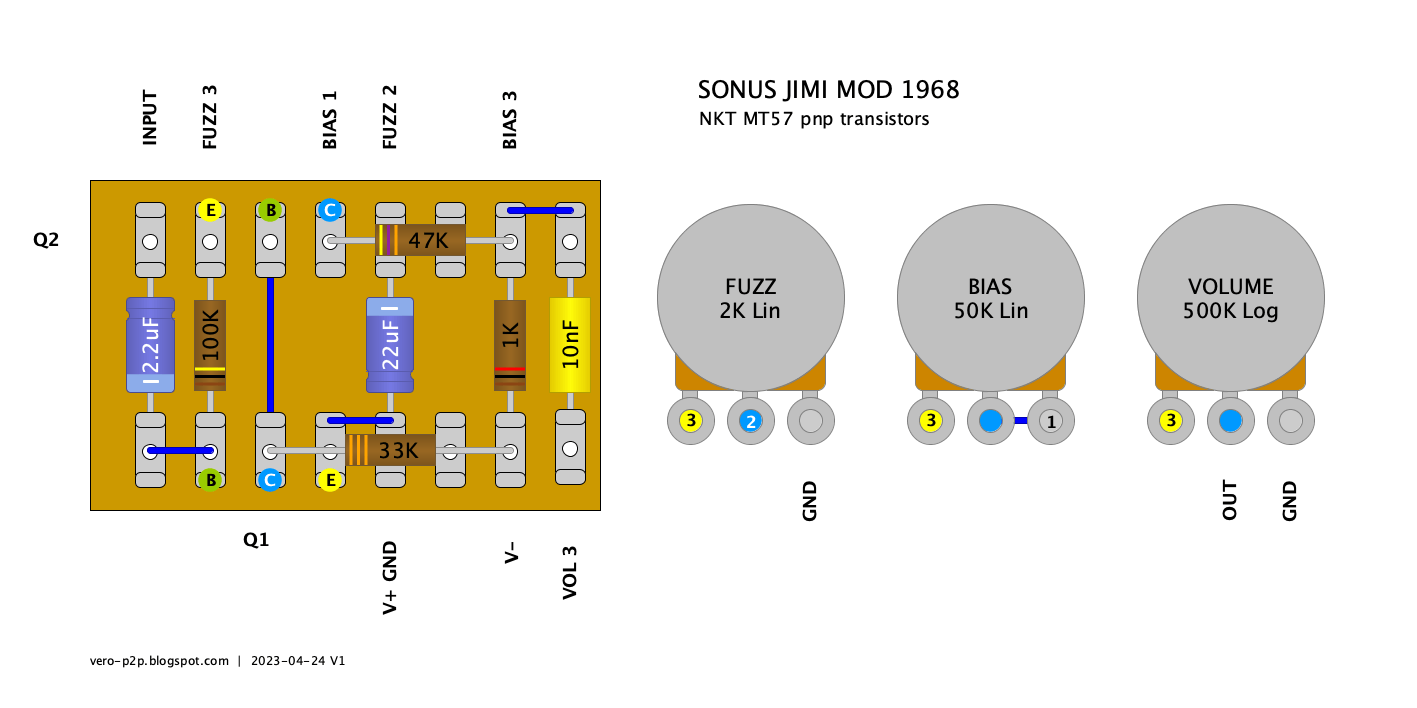

As you can see I did two versions on tag board, one a bit smaller and one with a bit more room.  Both have enough space for a mounting screw.

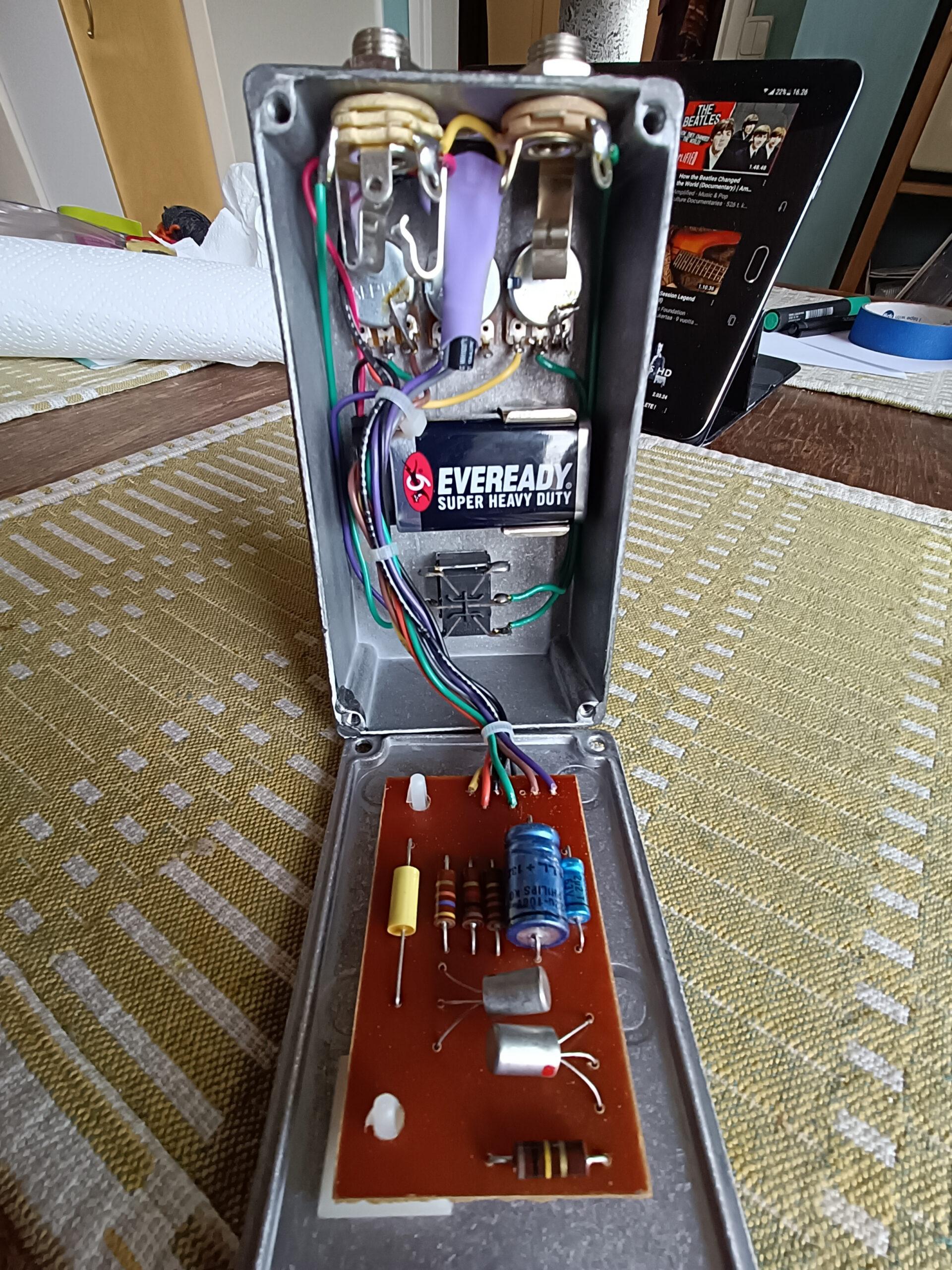

In addition to the battery, the Sonus pedal does have a DC input – I can see electrolytic poking out from shrink wrap, I’m guessing there may also be a diode hidden in there for polarity protection as well, but who knows.  Not hard to add this off board or just go without if you plan on battery only – this a positive ground effect, so for some people DC is not an option.

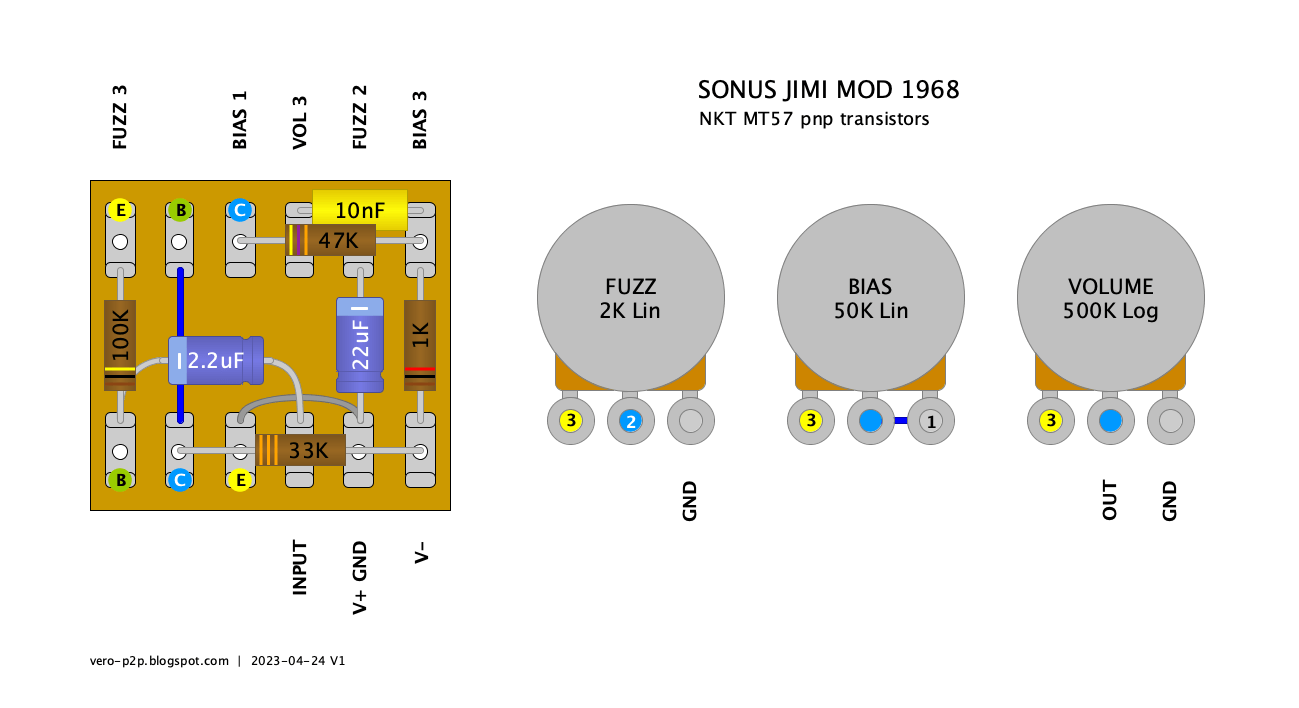

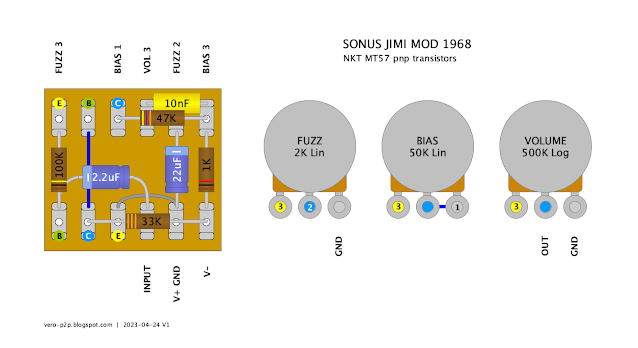

SONUS JIMI MOD 1968 – TAG BOARD LAYOUT

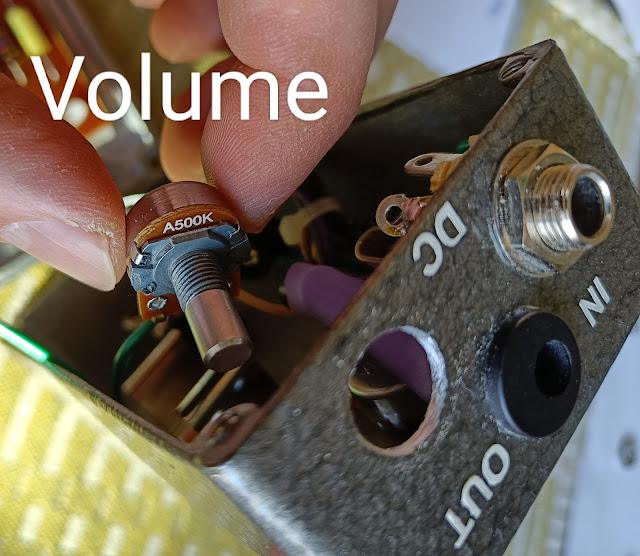

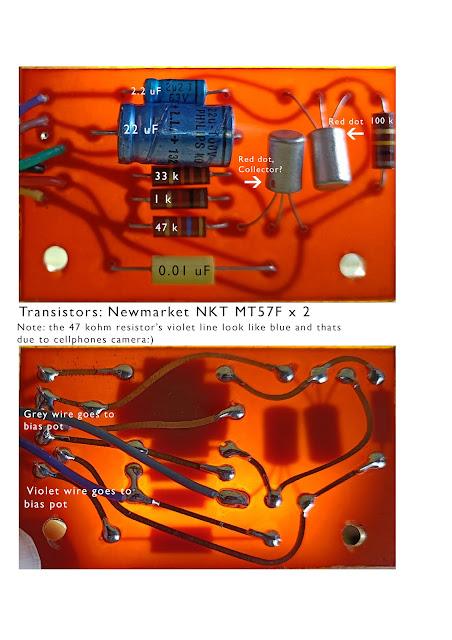

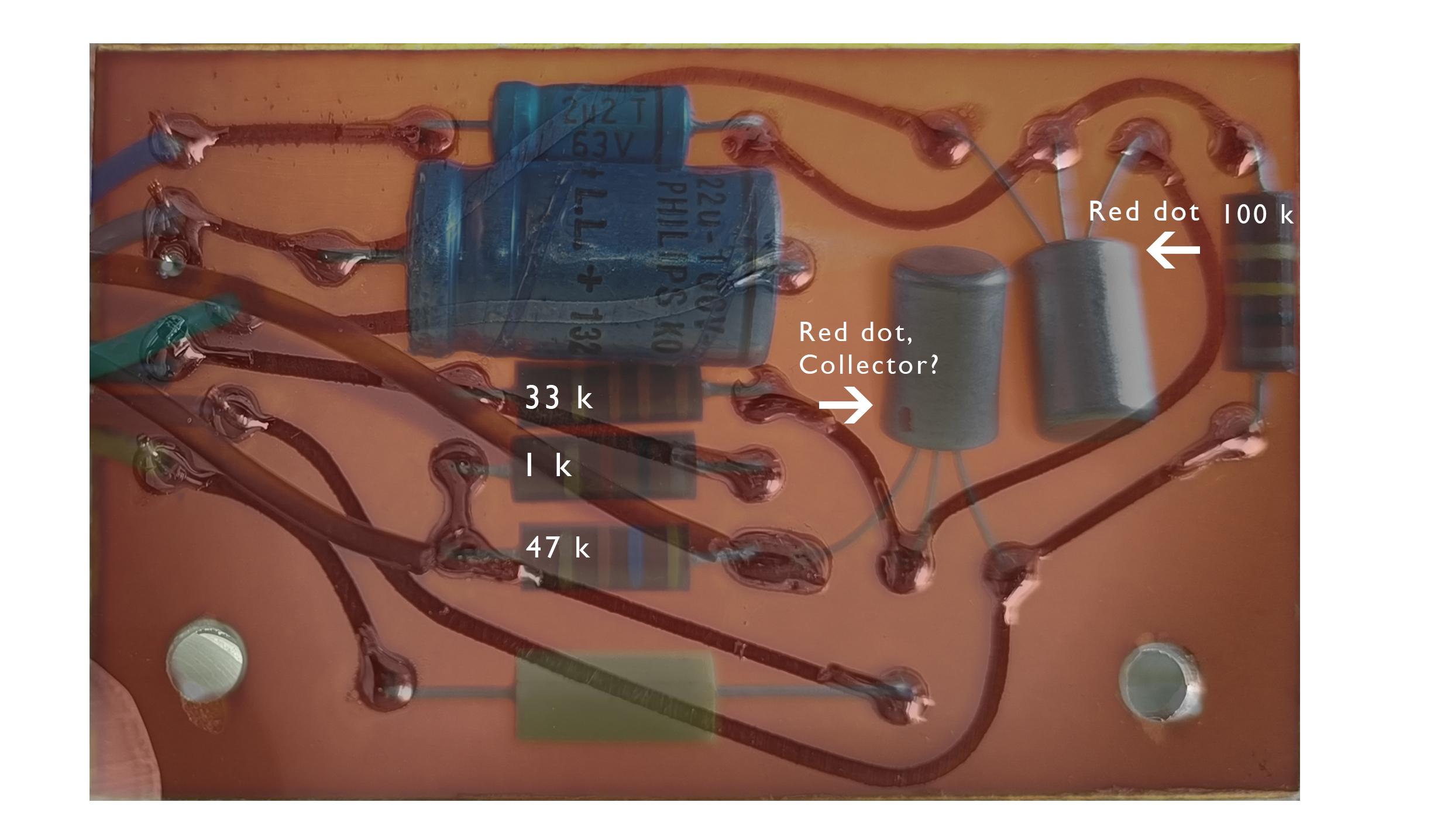

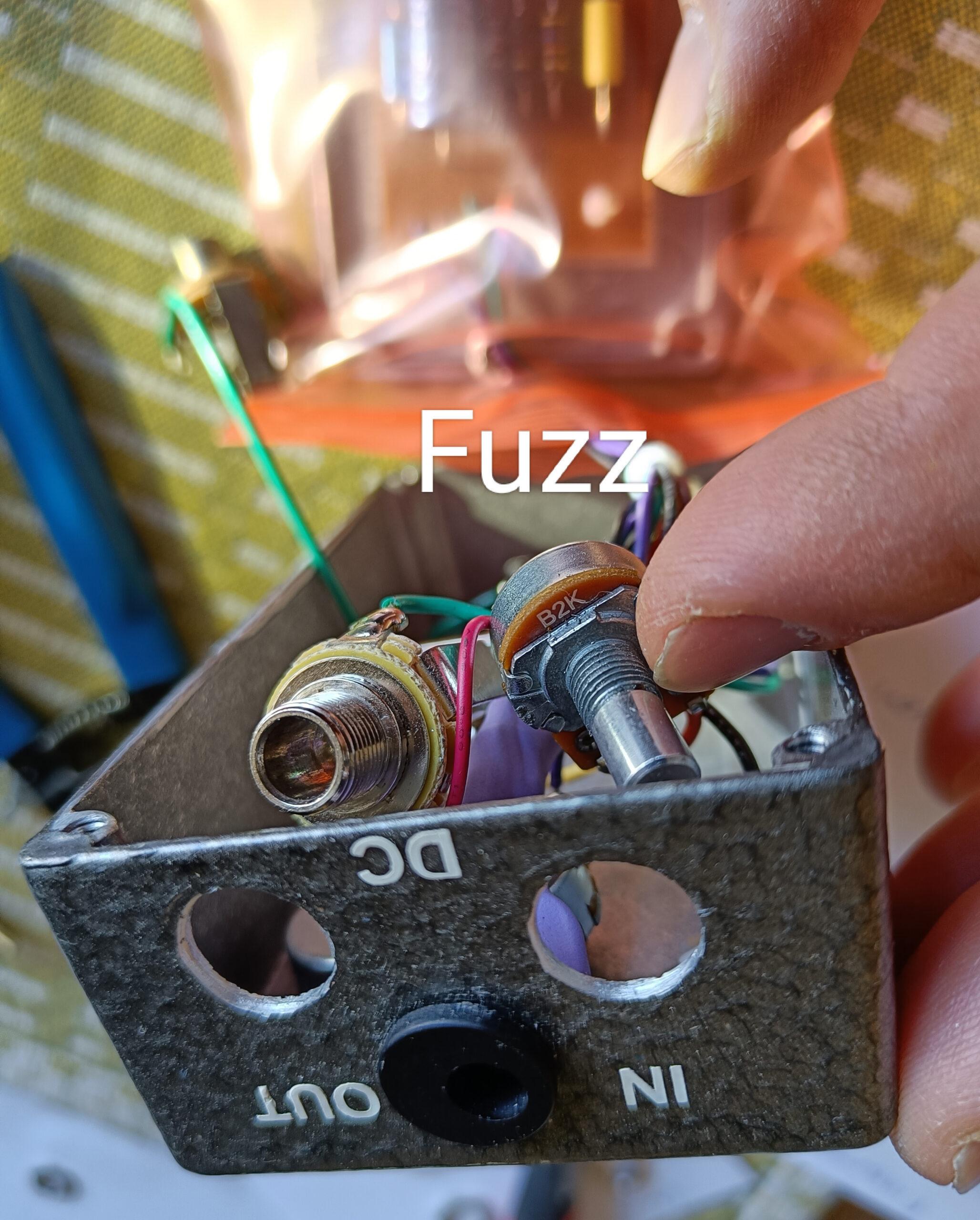

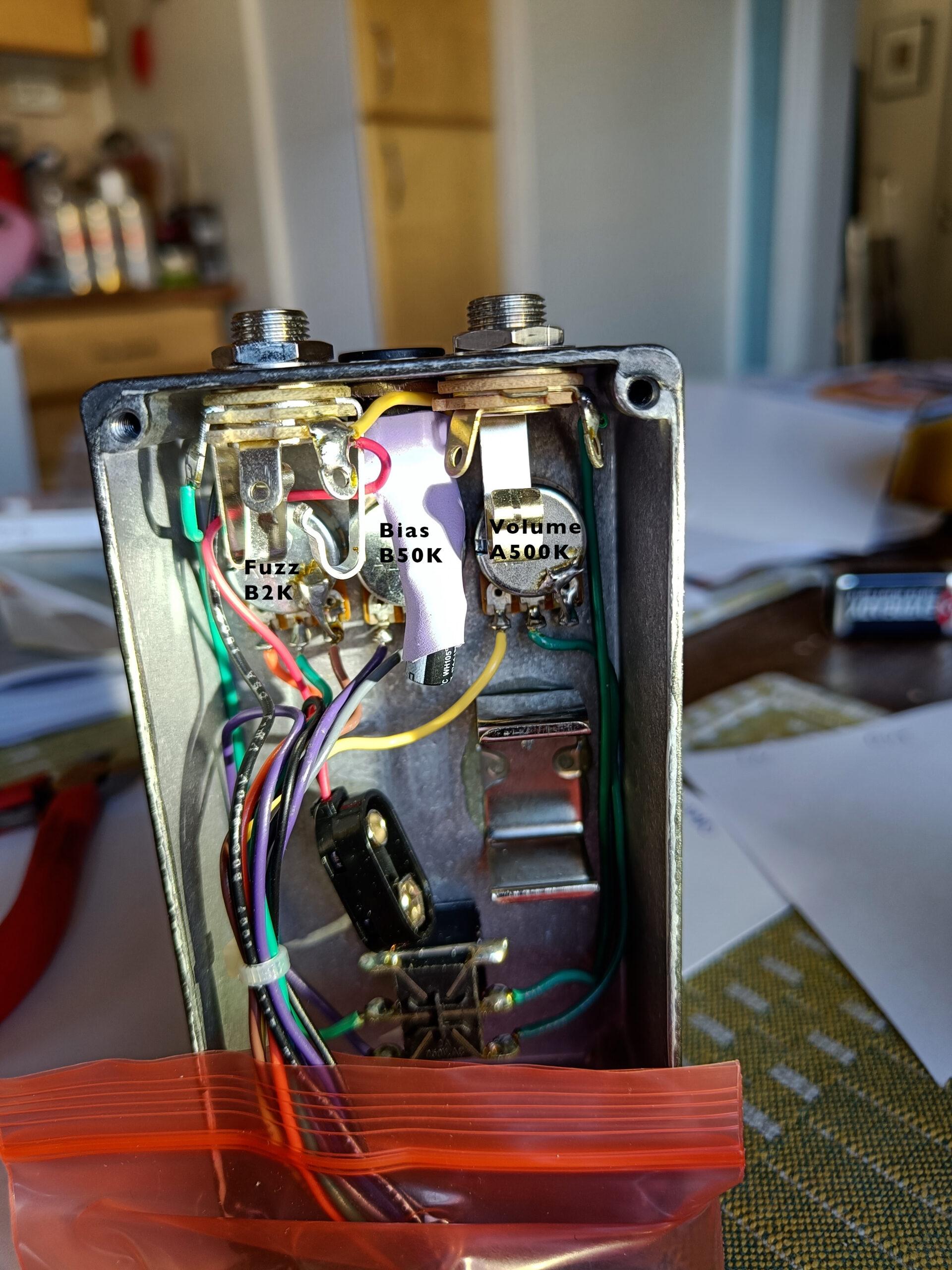

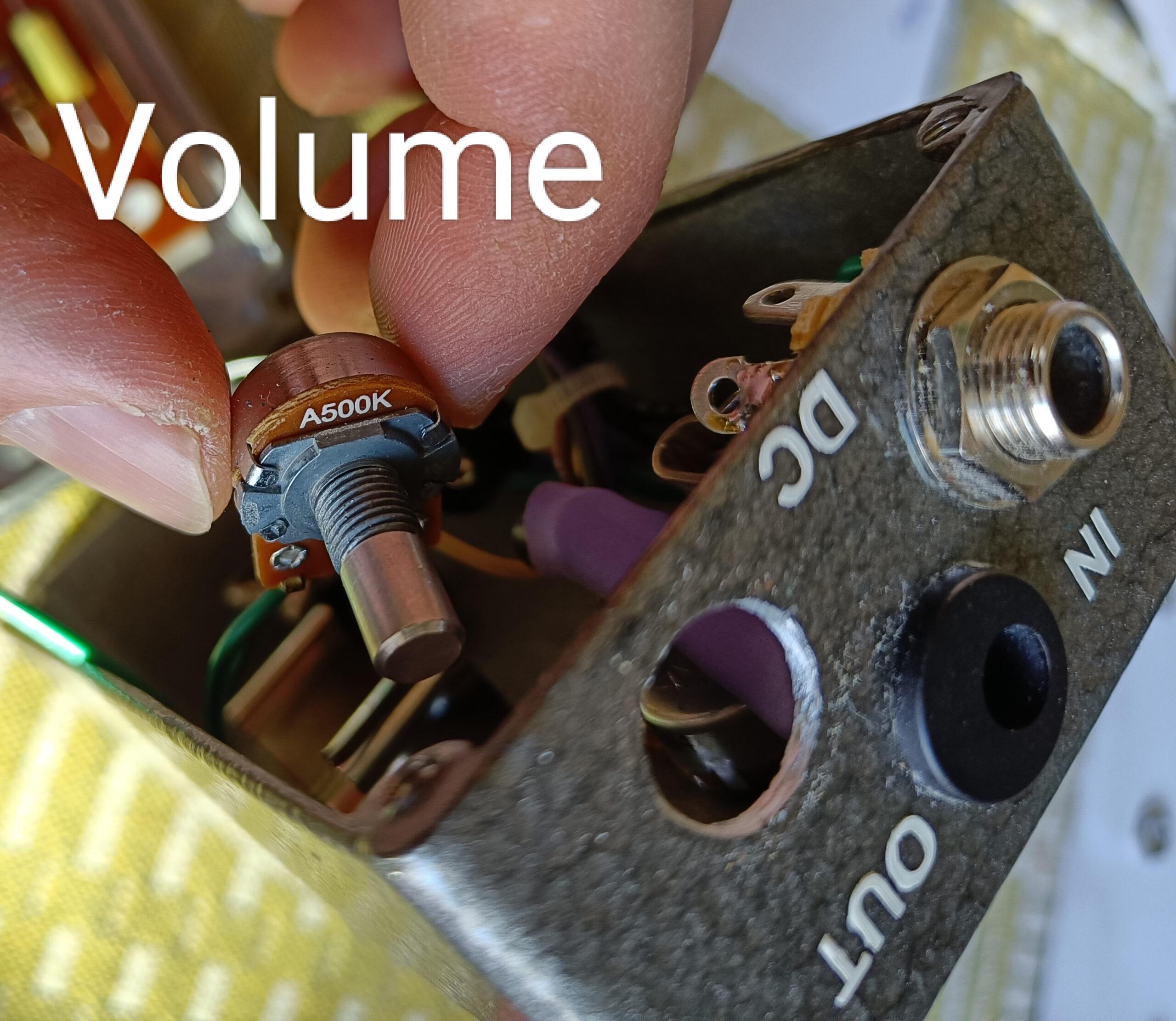

TRACING & PHOTOS SUPPLIED BY MIKKO
