Requested by Tom.

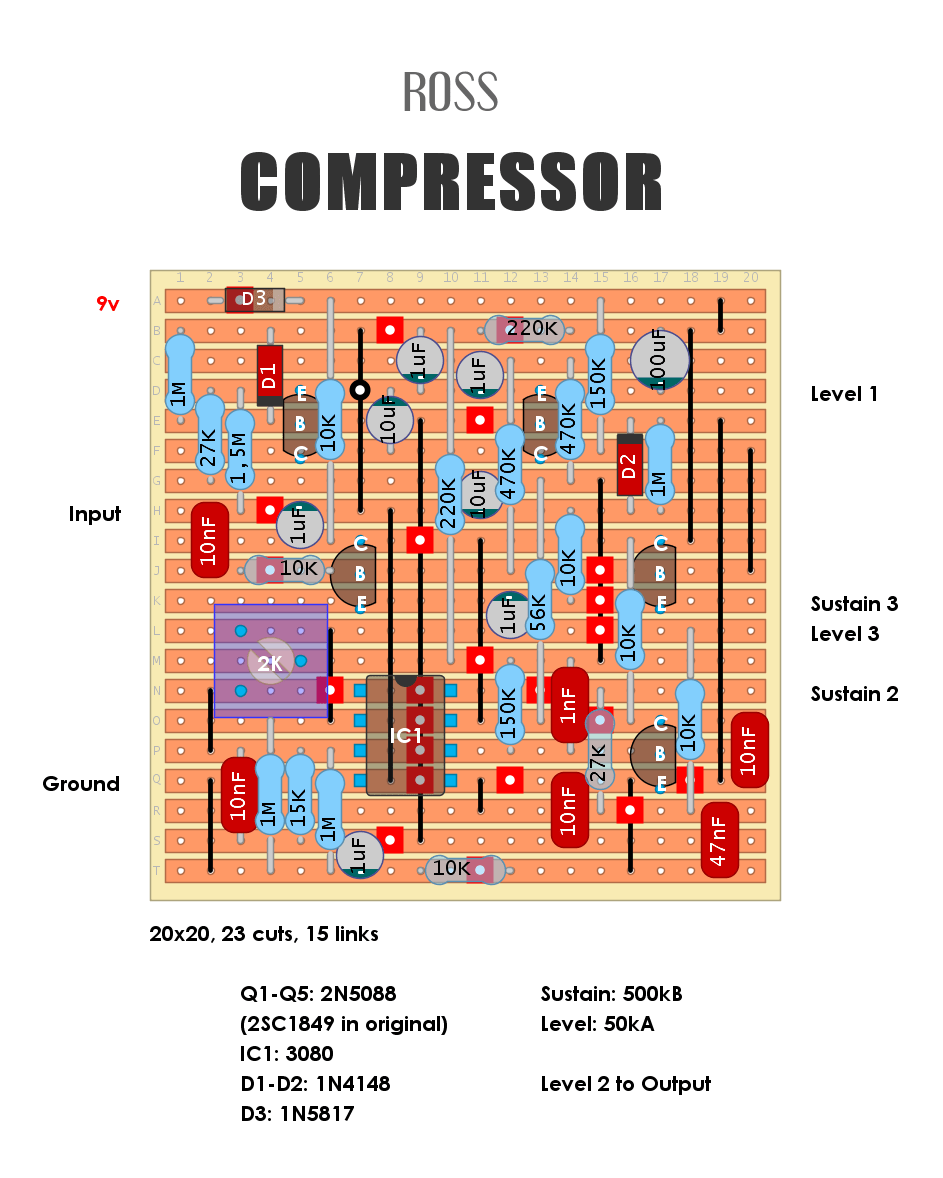

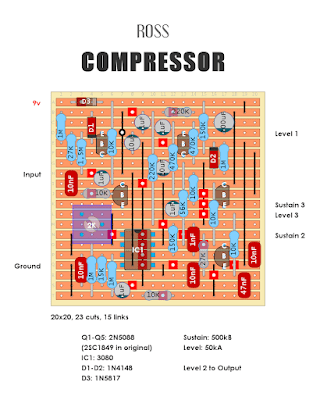

It is based on MXR Dyna Comp but has some extra bits mainly for addidtional power and Vref filtering for Q1 and the OTA IC. So I had to add two extra rows but it will still fit in a 1590b box without problem.
Ross Compressor
Tools, Tones and Toys for Guitarists
Requested by Tom.
It is based on MXR Dyna Comp but has some extra bits mainly for addidtional power and Vref filtering for Q1 and the OTA IC. So I had to add two extra rows but it will still fit in a 1590b box without problem.
