Schematic is avaiable HERE.
I added a 100ohm protection resistor across the trimpot and the lamp driver transistor (Q1).

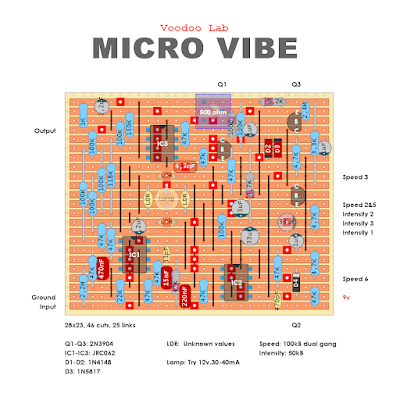

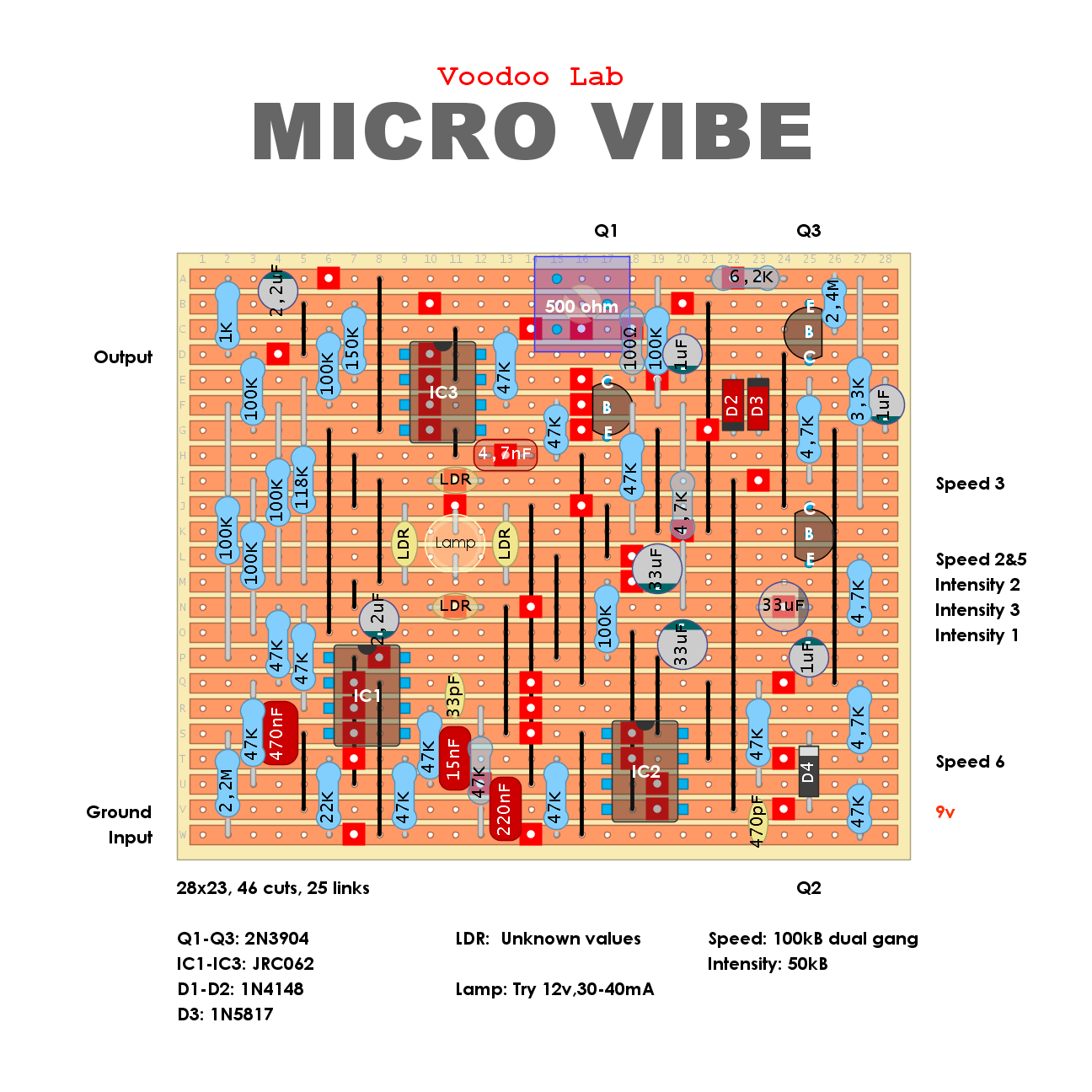

Voodoo Lab Micro Vibe
Tools, Tones and Toys for Guitarists
Schematic is avaiable HERE.
I added a 100ohm protection resistor across the trimpot and the lamp driver transistor (Q1).
