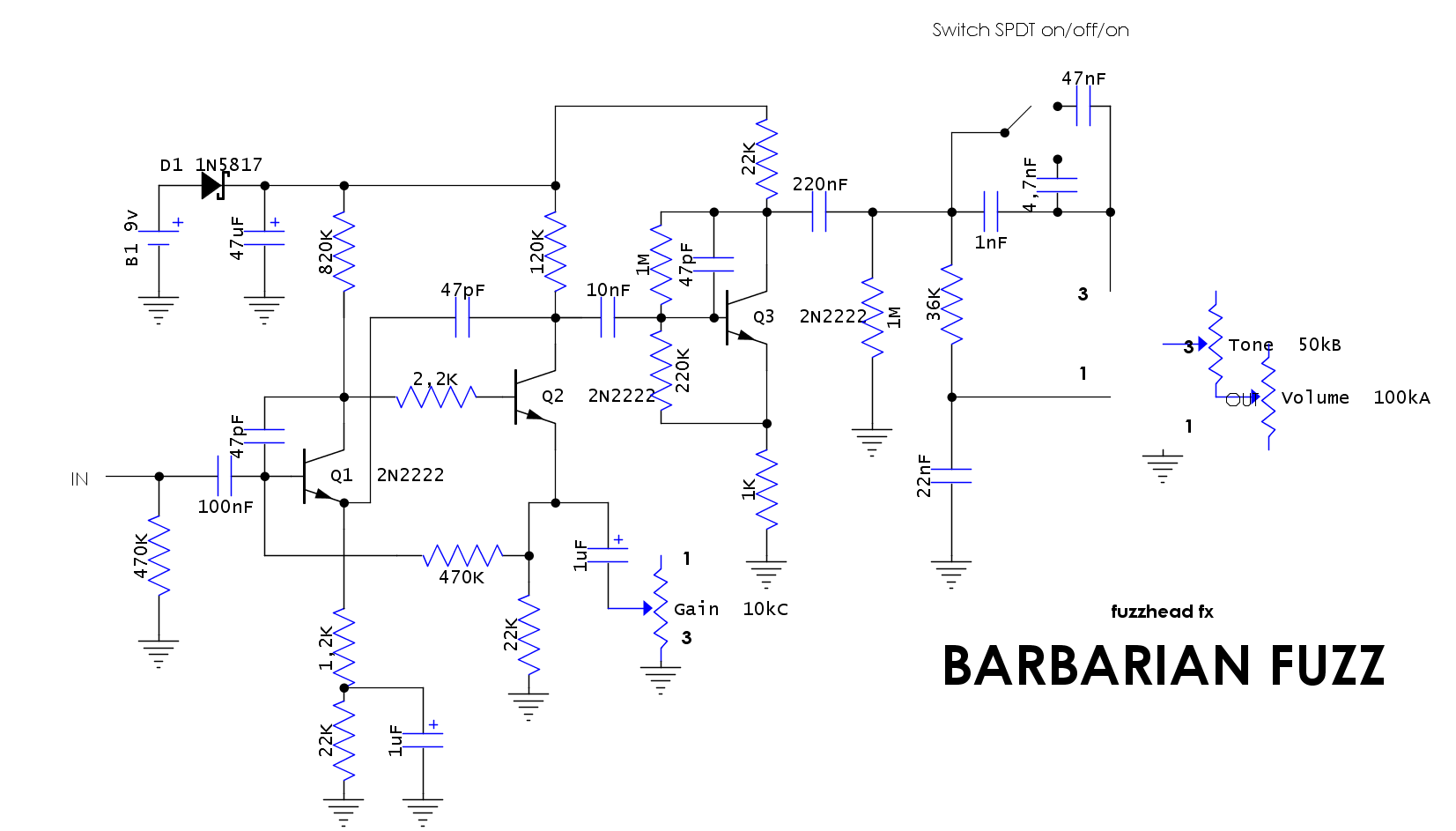

I dug out my breadboard to clear some thoughts and played around a bit. Well, I ended up with one of my top 3 fuzz circuits, Roland Double Beat. It is perfect as is, just added some minor filtering here and there. But the stock Double Beat rotary switch tonestack sucked IMO so I just tacked on the tonestack from Apocalypse Audio H Fuzz which very versitale and simple. Now this is a angry doom machine.
Got no name for it but listened to some Electric Wizard tune Barbarian the other day so…let’s call it Barabarian Fuzz, ok?

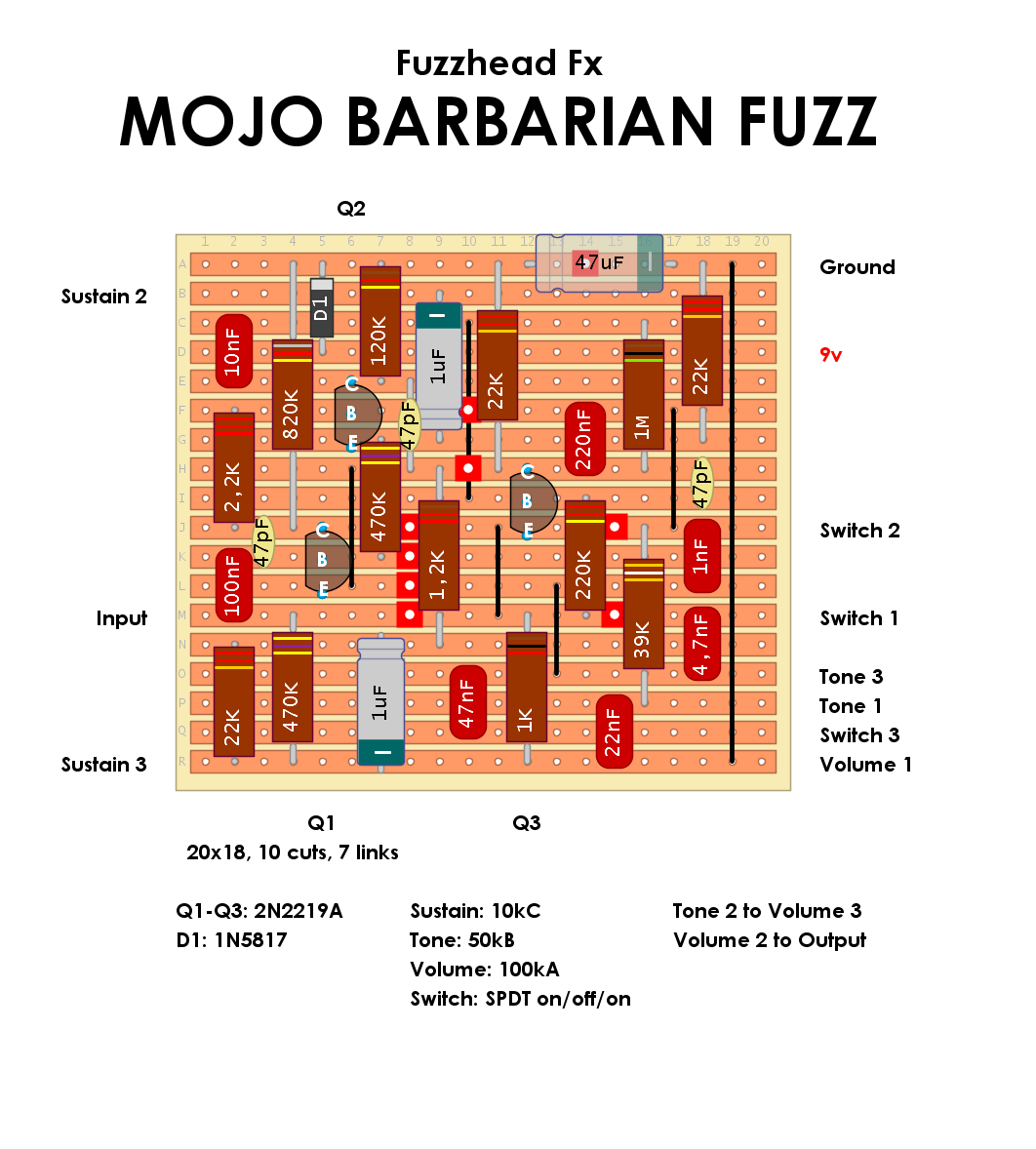

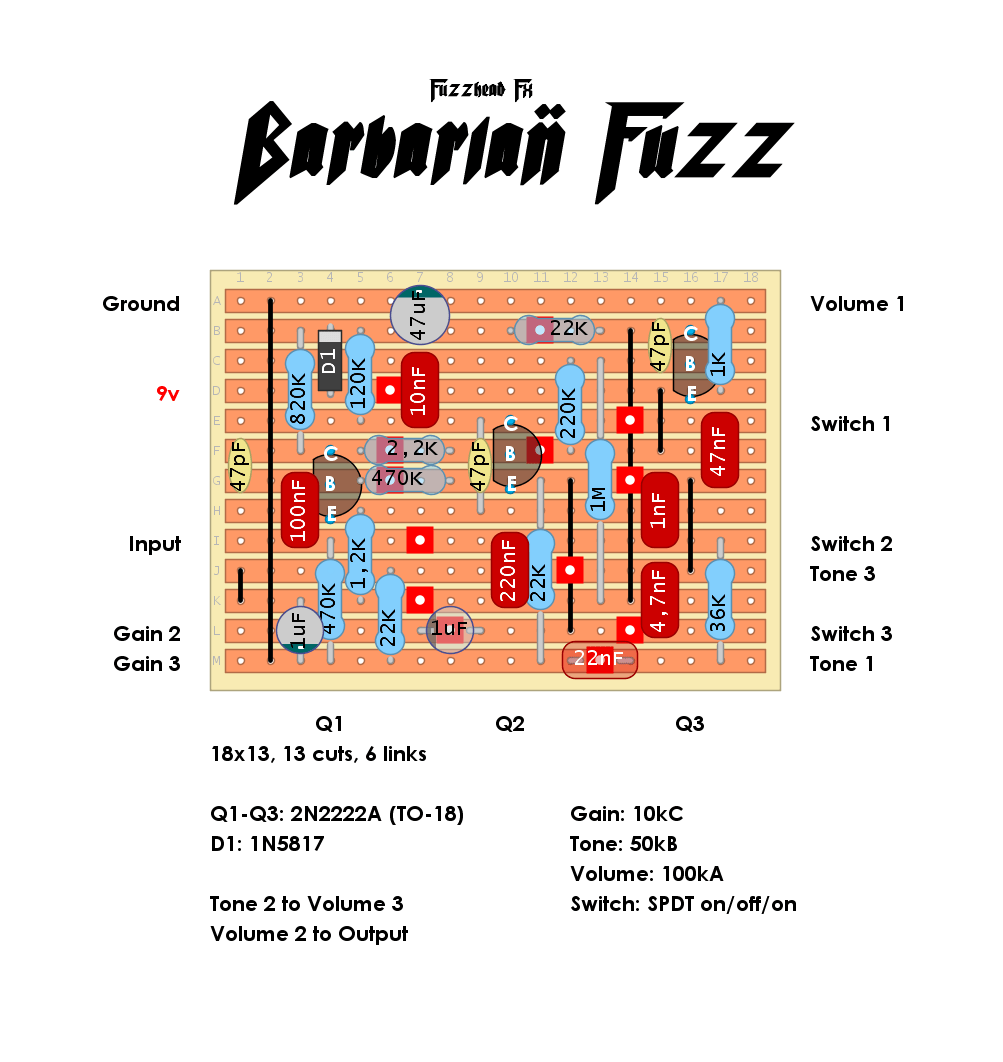

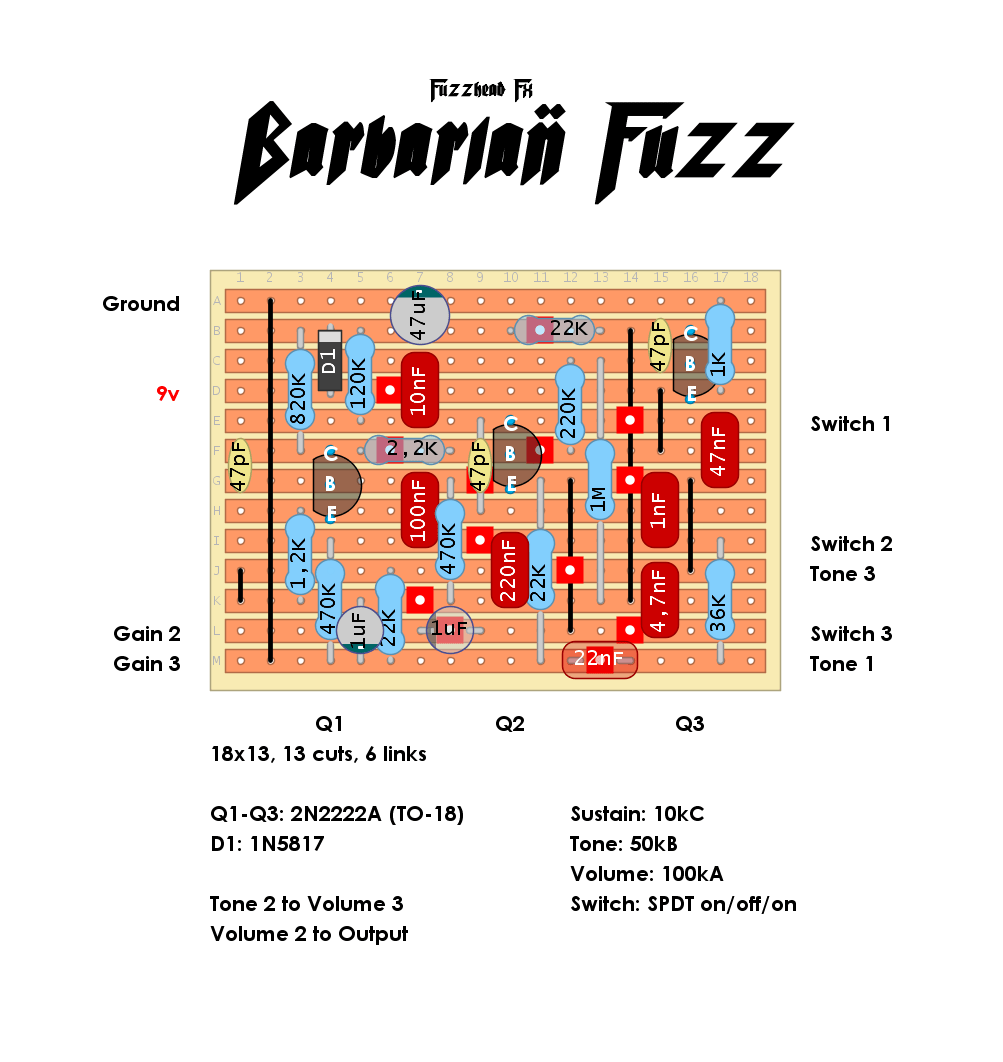

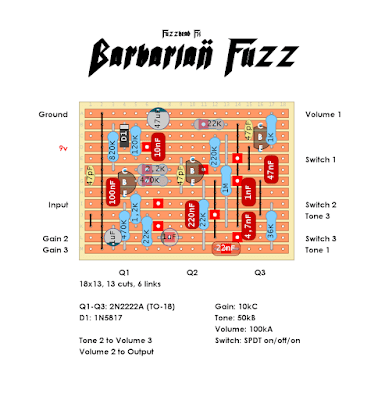

ATM, the MOJO layout is verified but not the small one.
