Acorn MIGFET d57eaa0a37b8

Acorn Amplifiers MIGFET 50p Preamp

13 Jun 202623 Nov 2023 by chords

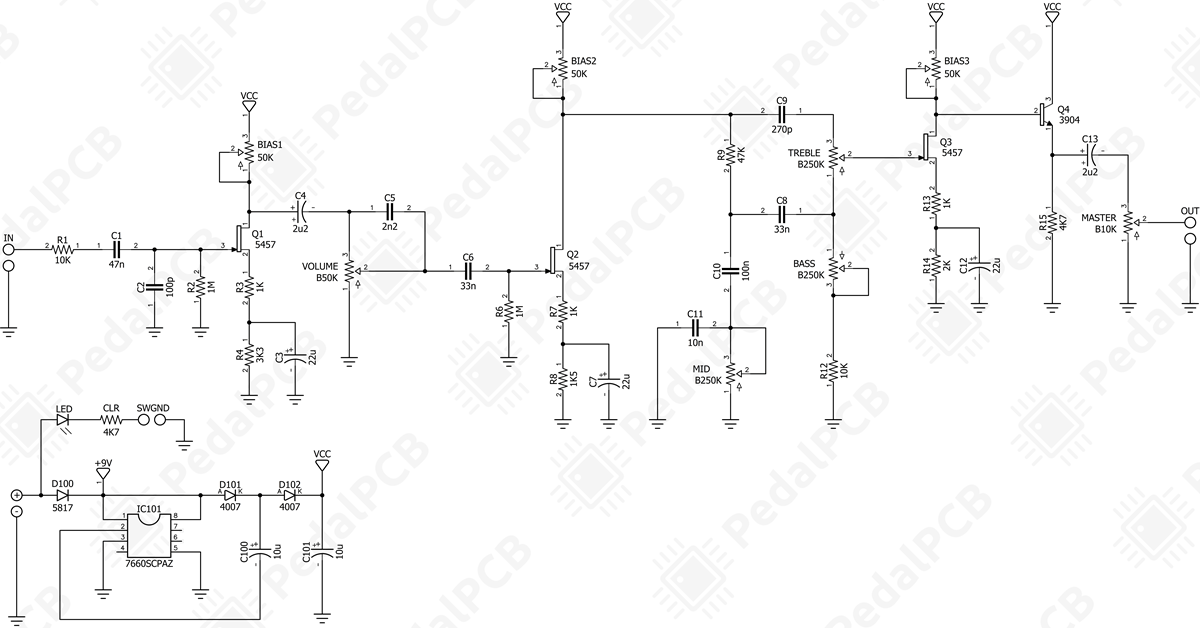

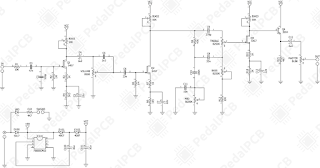

A big thanks to Chris Stelloh for the schematic!

Categories Uncategorized Tags Acorn Amplifiers, Amp Emulator, dirtboxlayouts, Pre-amp, Sovtek, Verified
