EAE Steiner VCF b048cda9df82

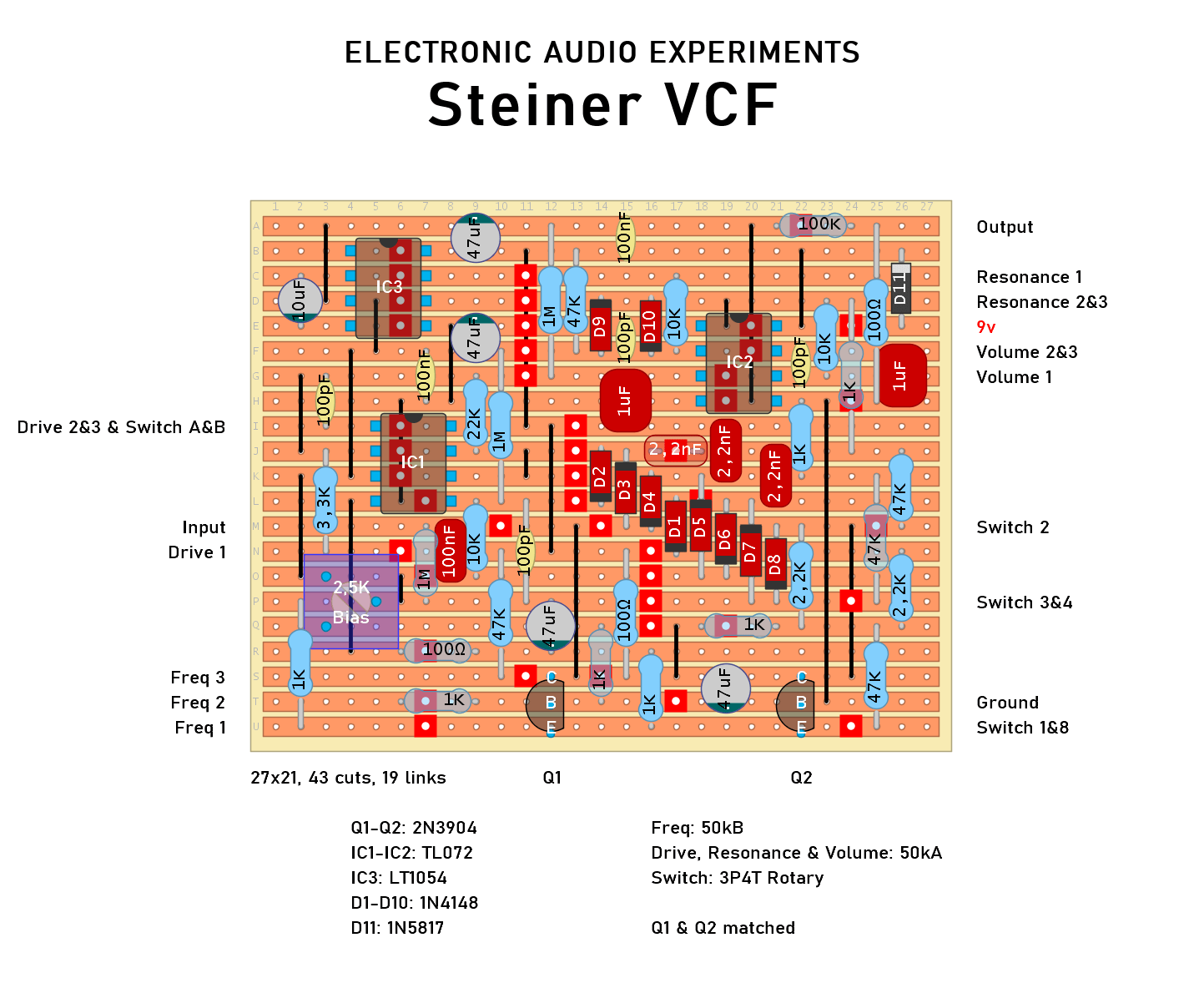

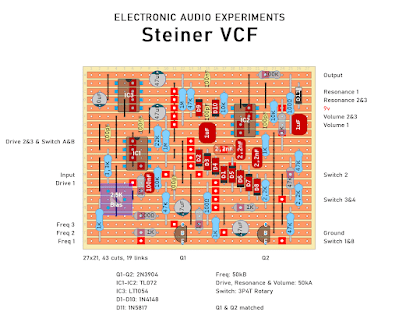

Electronic Audio Experiments Steiner VCF

4 Jun 202617 Nov 2023 by chords

Description is avaiable HERE.

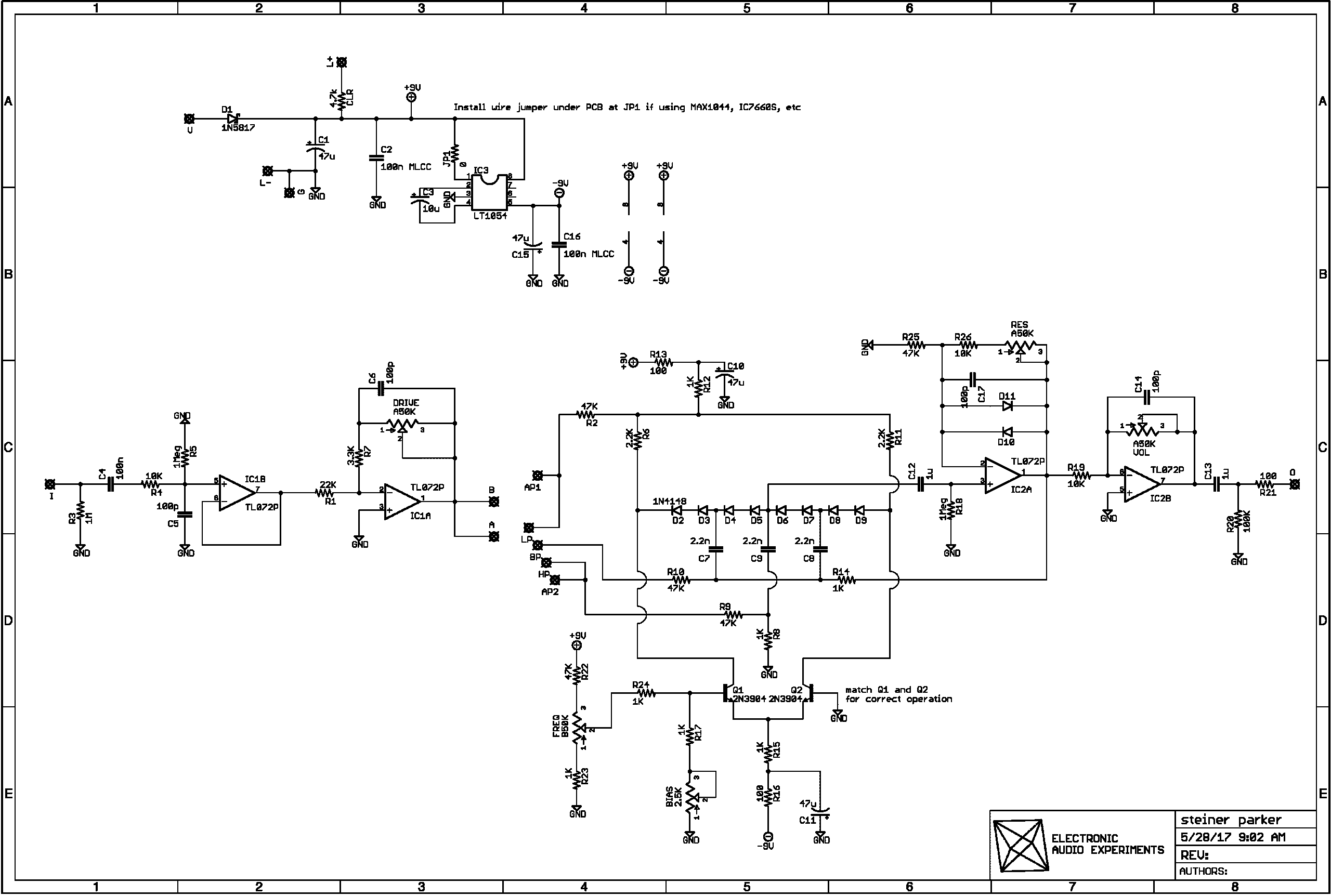

Schematic is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, Electronic Audio Experiments, Filter, Unverified
