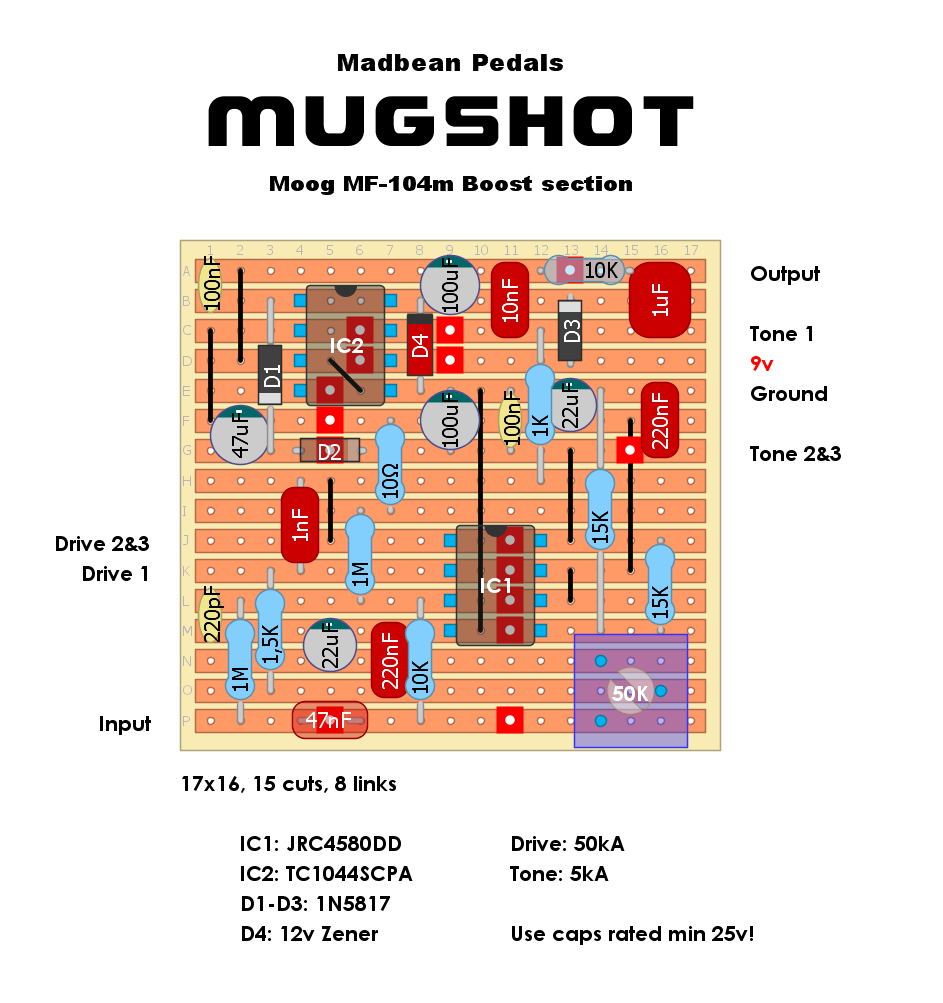

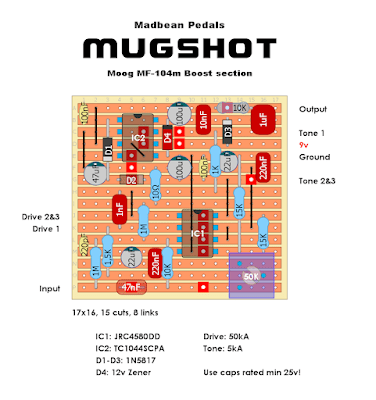

Booster section from a Moog MF-104m Delay

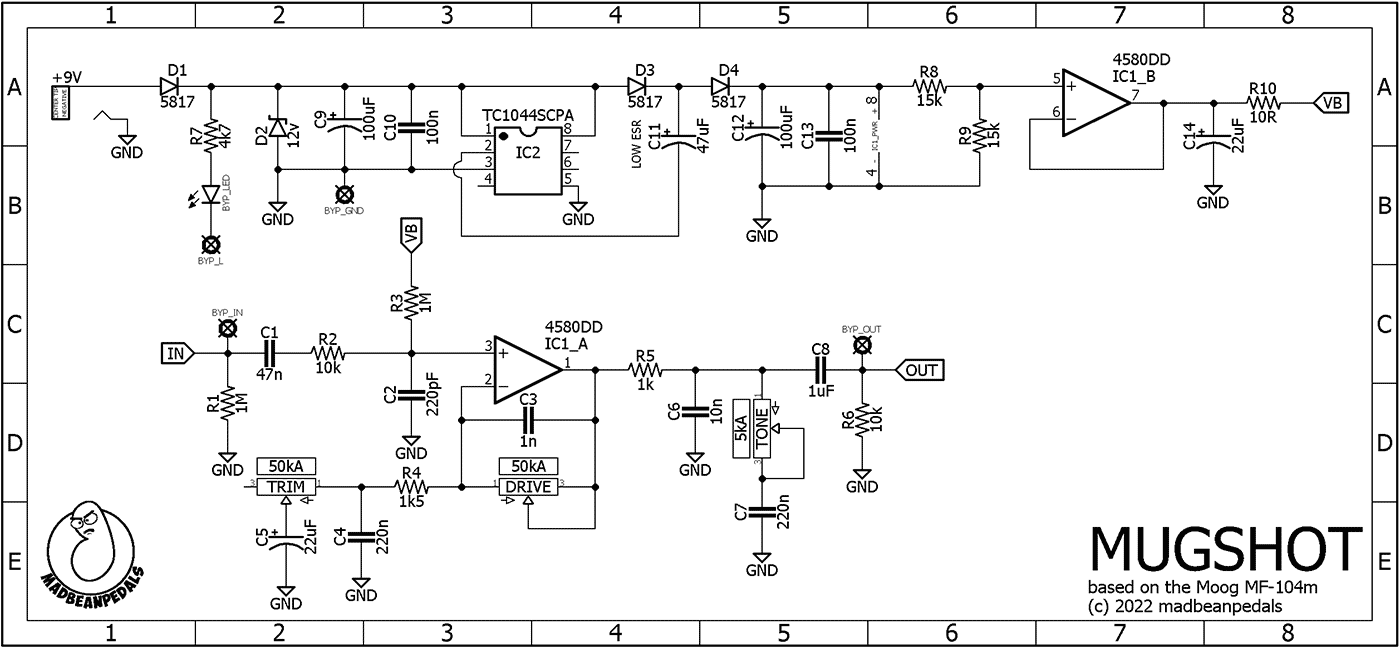

Schematic is avaiable HERE.

Categories Uncategorized Tags Booster, dirtboxlayouts, Madbean, Moog, Verified
