Electro Faustus Guitar Disruptor 4bd97f361927

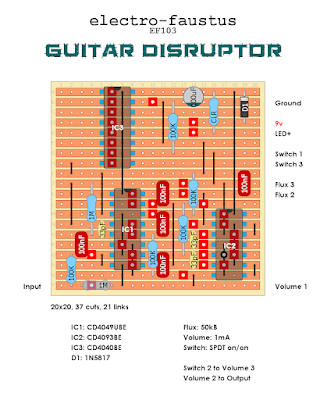

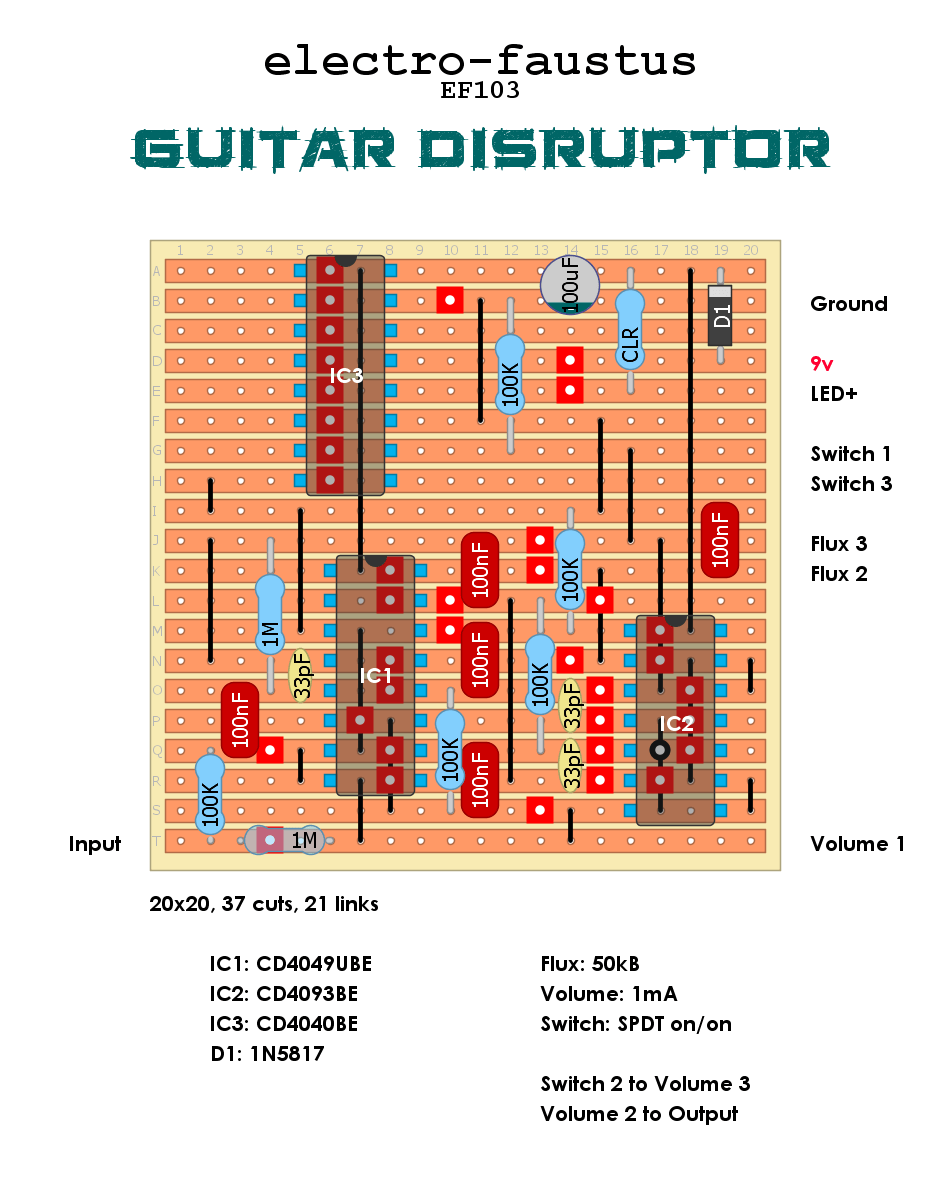

Electro-Faustus EF103 Guitar Disruptor

13 Jun 202623 Dec 2023 by chords

The perfect device for some X-mas tunes…😃

Schematic is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, Electro Faustus, Fuzz, Noise, Octave, Unverified
