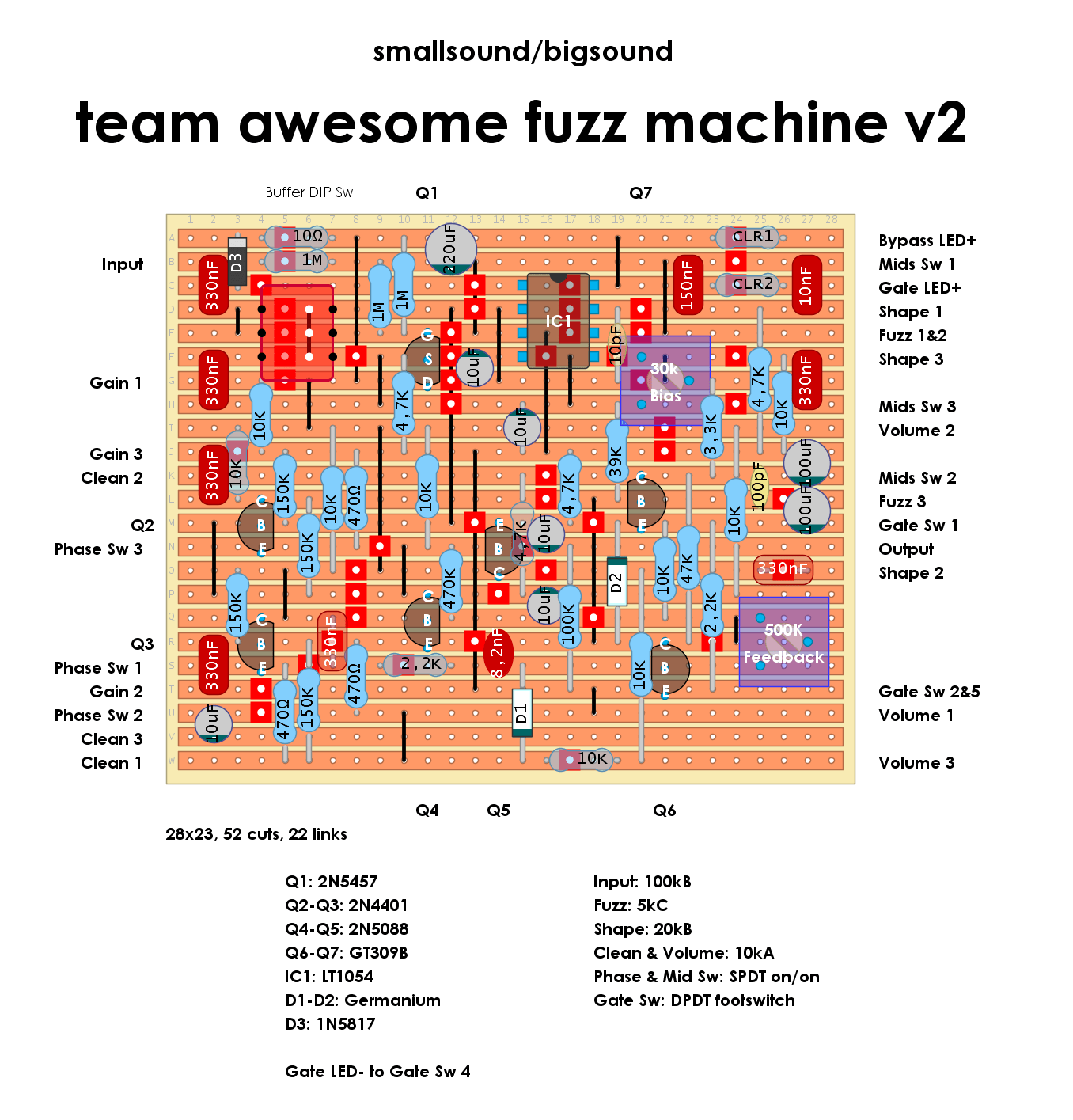

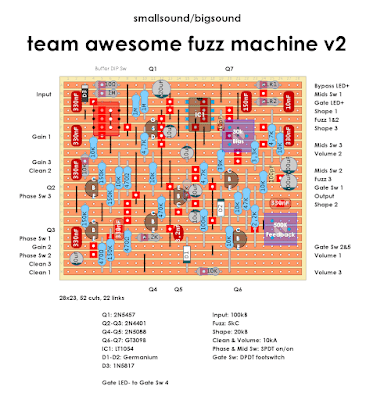

Smallsound / Bigsound Team Awesome Fuzz Machine V2

4 Jun 202620 Jan 2024 by chords

Schematic is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, Fuzz, smallsound/bigsound, Unverified
