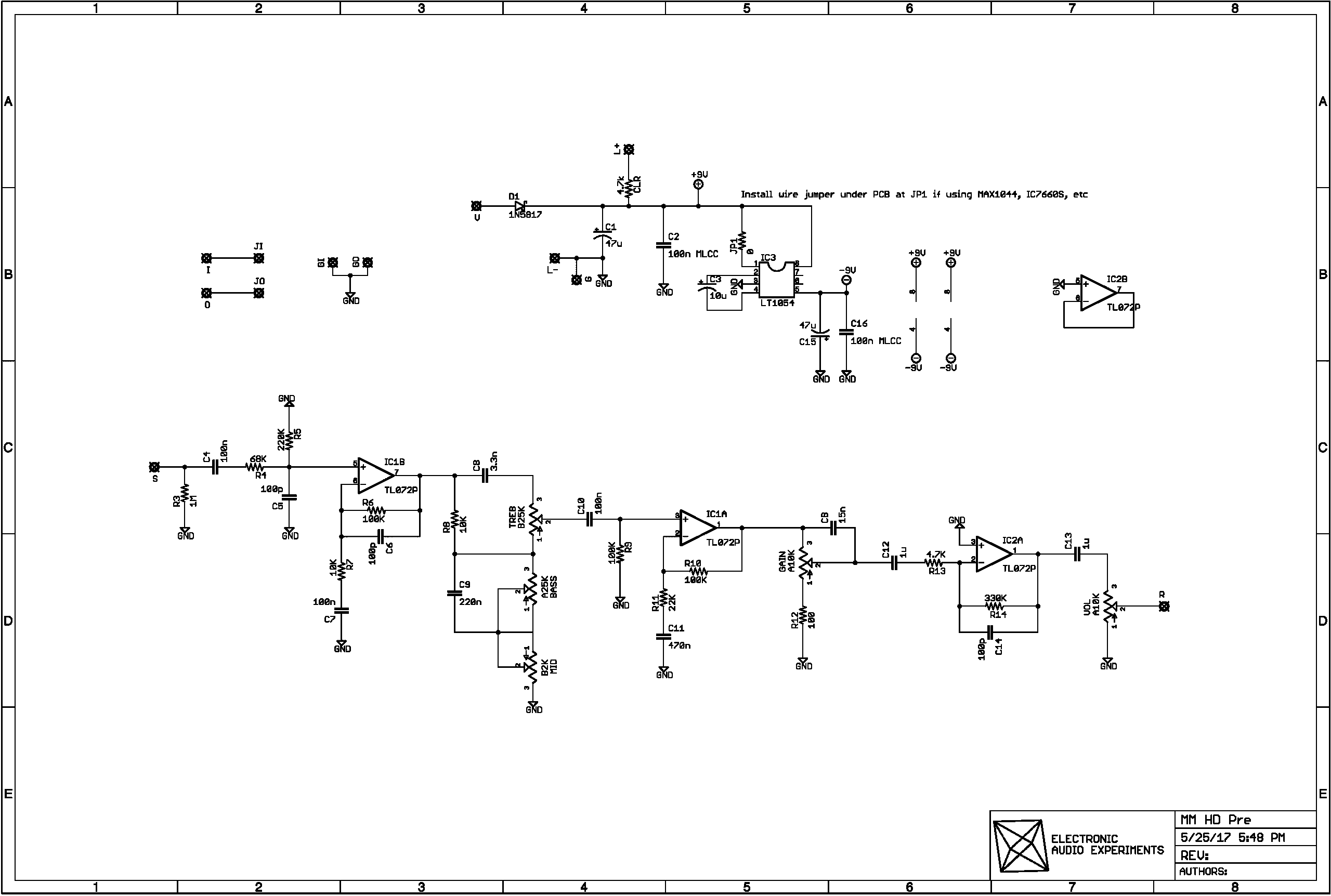

Schematic is avaiable HERE.

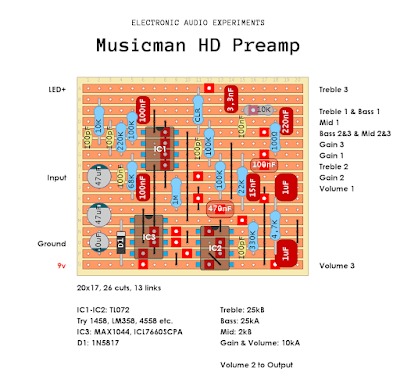

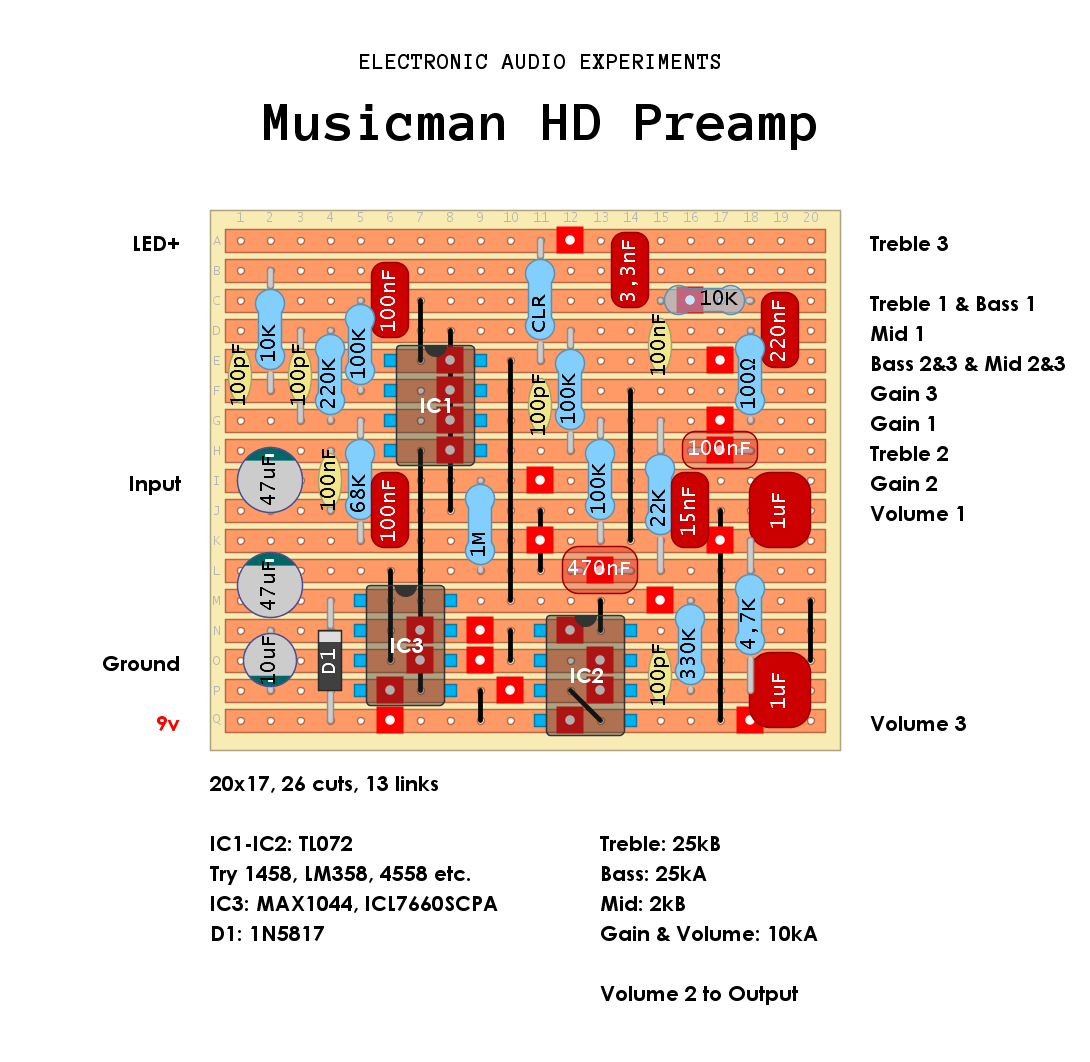

*Edit 240216* wyongroadelelectroncs verified this layout. He also noticed that the Bass and Mid pot connections was is incorrect in the linked schematic. The Layout is updated and tagged.
Electronic Audio Experiments Musicman HD Preamp
