Demonic Machines Fishbones 2929b3beb2db

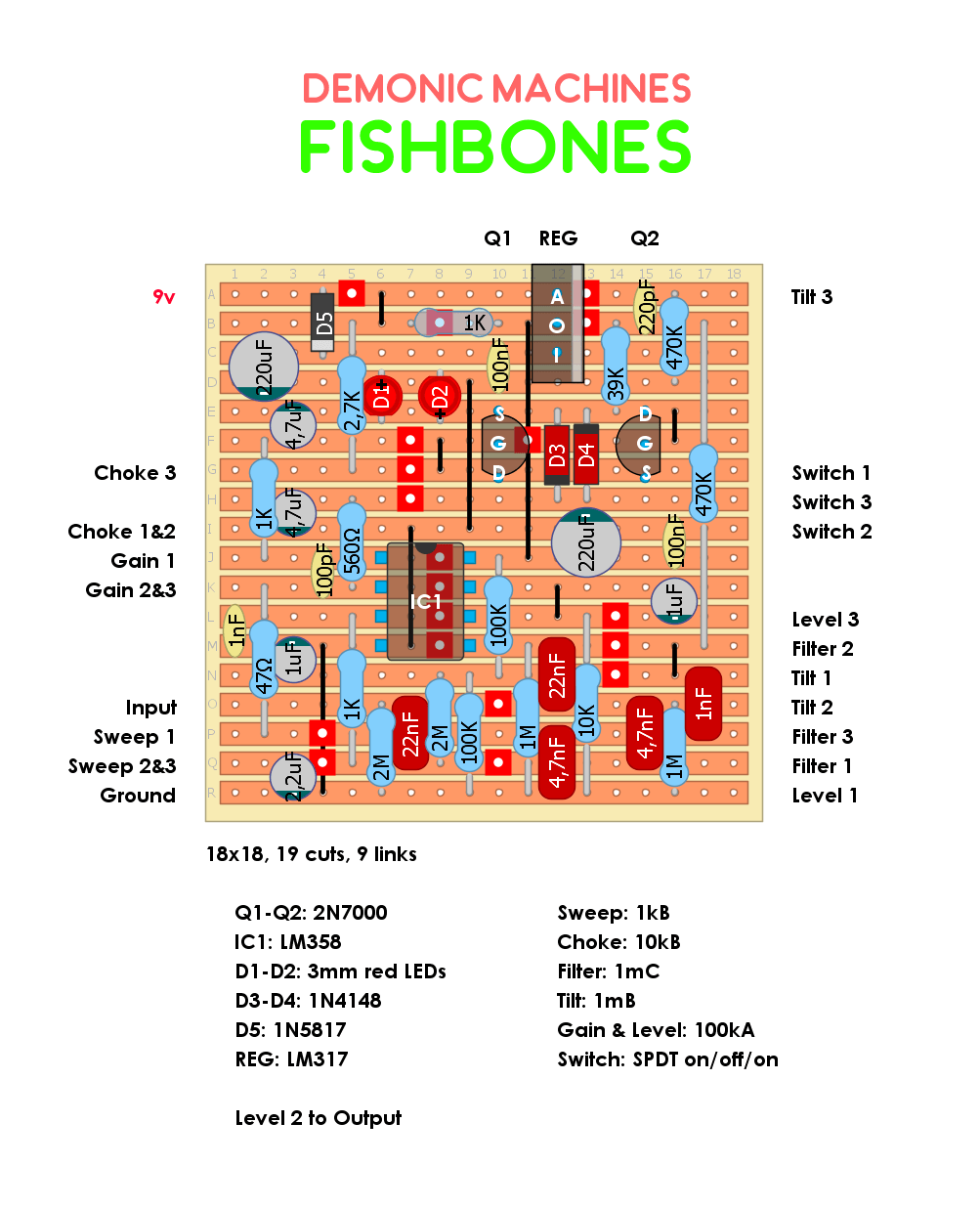

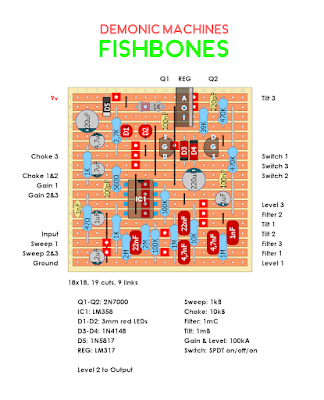

Demonic Machines Fishbones

13 Jun 202618 Jun 2024 by chords

Schematic and a small writeup is avaiable HERE.

Categories Uncategorized Tags Demonic Machines, dirtboxlayouts, Distortion, Fuzz, Verified

Adventure Audio Fuzz Peaks V2

Demonic Machines Dragonaut
