PedalPCB Decadence 2e09f387ce49

PedalPCB Decadence Preamp

13 Jun 202630 Jul 2024 by chords

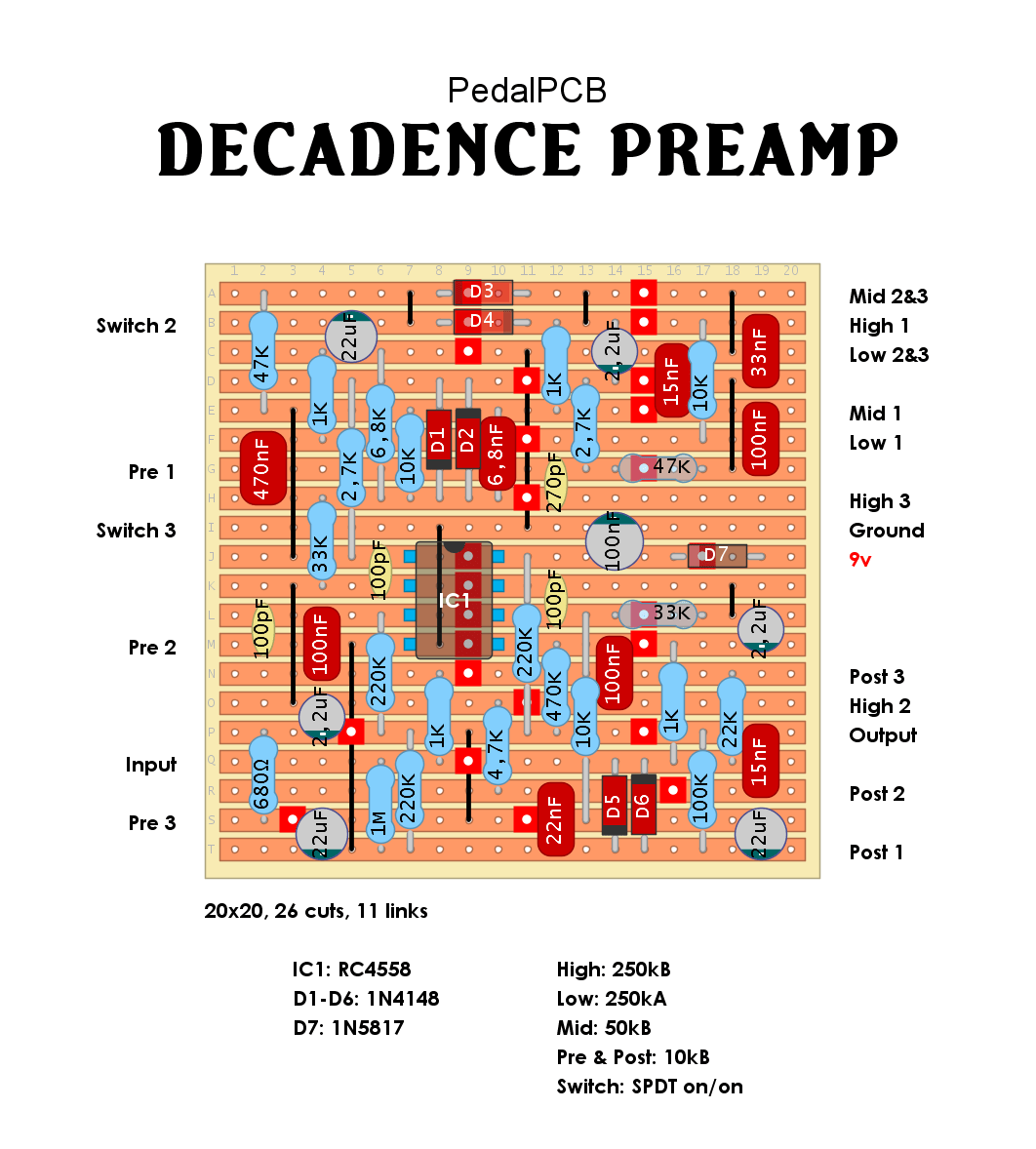

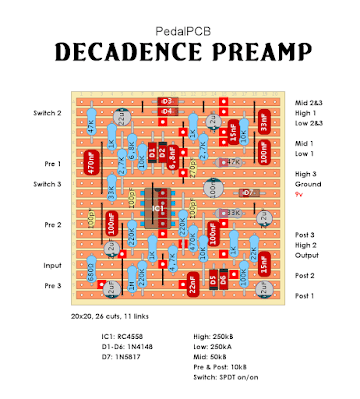

PedalPCBs take on the preamp section of Peavey Decade amp.

Schematic is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, Overdrive, Peavey, Pedalpcb, Pre-amp, Verified
