SUPRO: Super Six, Model S6606 Valve Amplifier

by

Valco made, Supro single-ended valve amp, very much the same as the Gretsch 6150 / 6151

SUPRO SUPER SIX, MODEL S6606

12AX7, 6V6, 5Y3
8″ Jensen speaker, 3.2 ohm
OT 2640
PT 3036
B+ 300v
4.5w

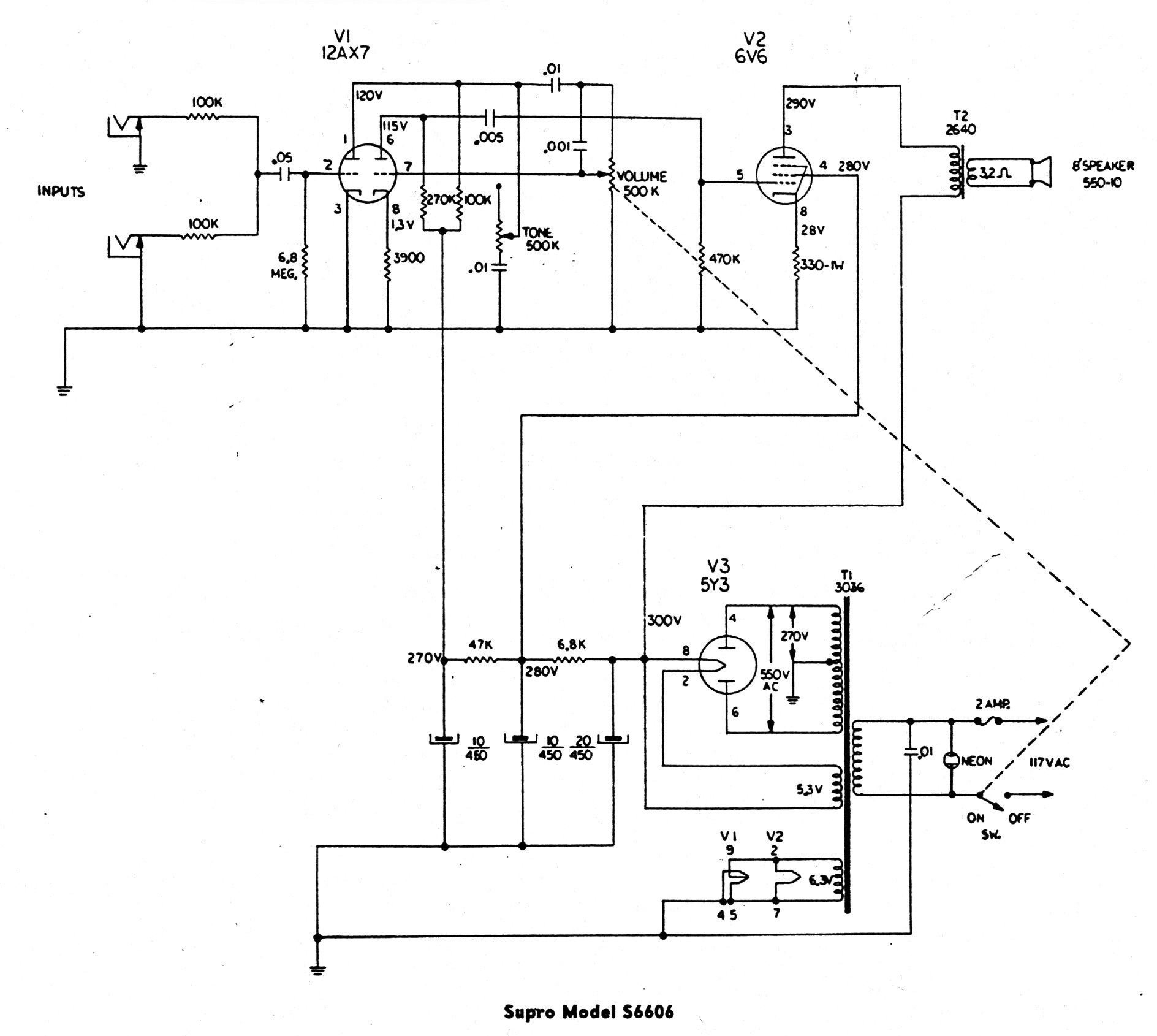

Supro S6606 single-ended valve amp schematic

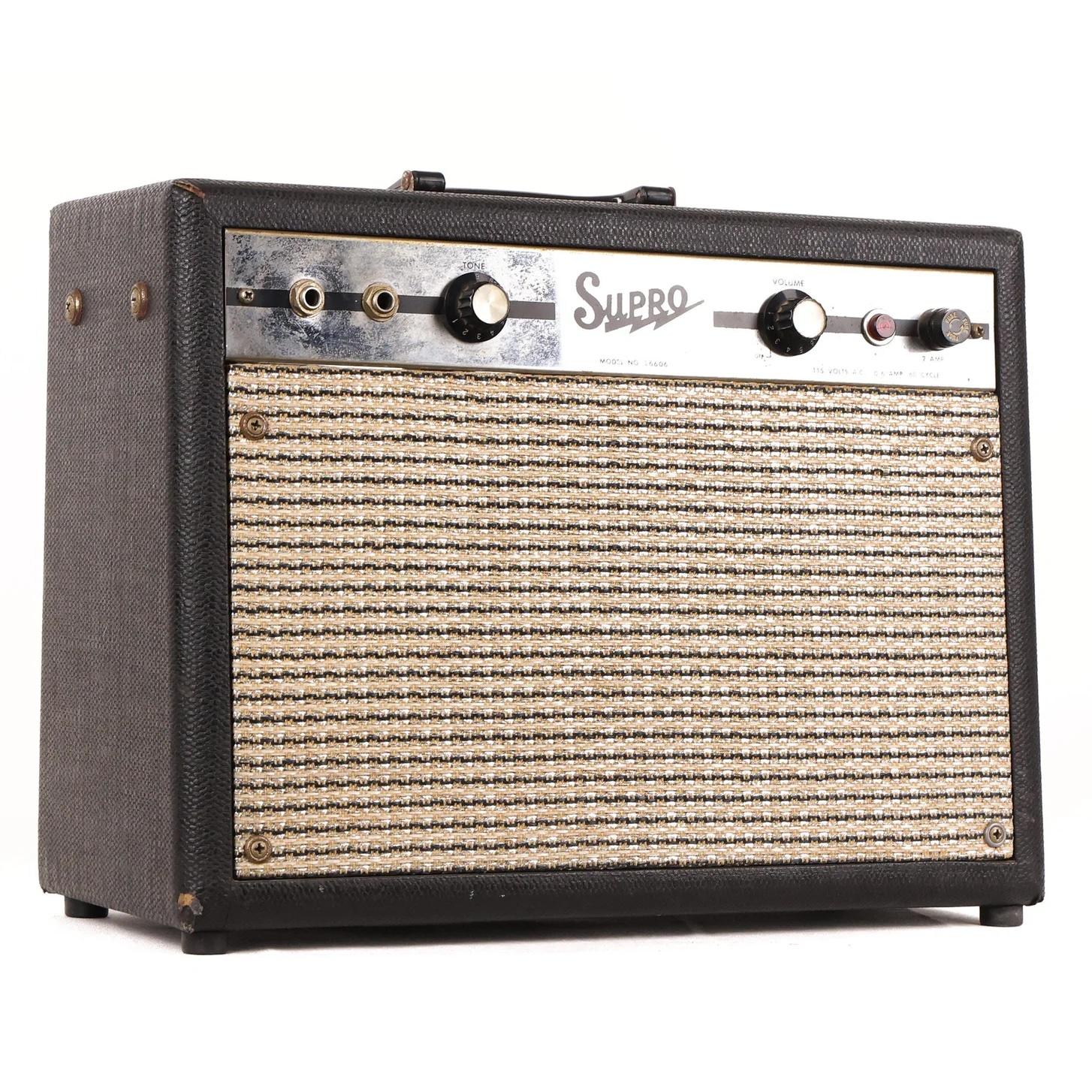

SUPRO S6606 amplifier
