PedalPCB Super 65 8b9e4c906c5b

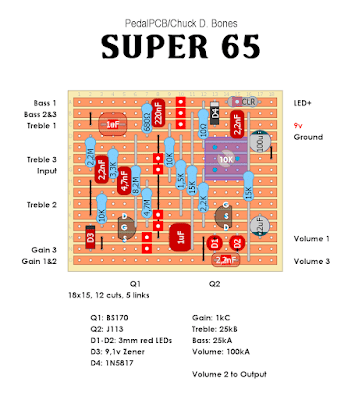

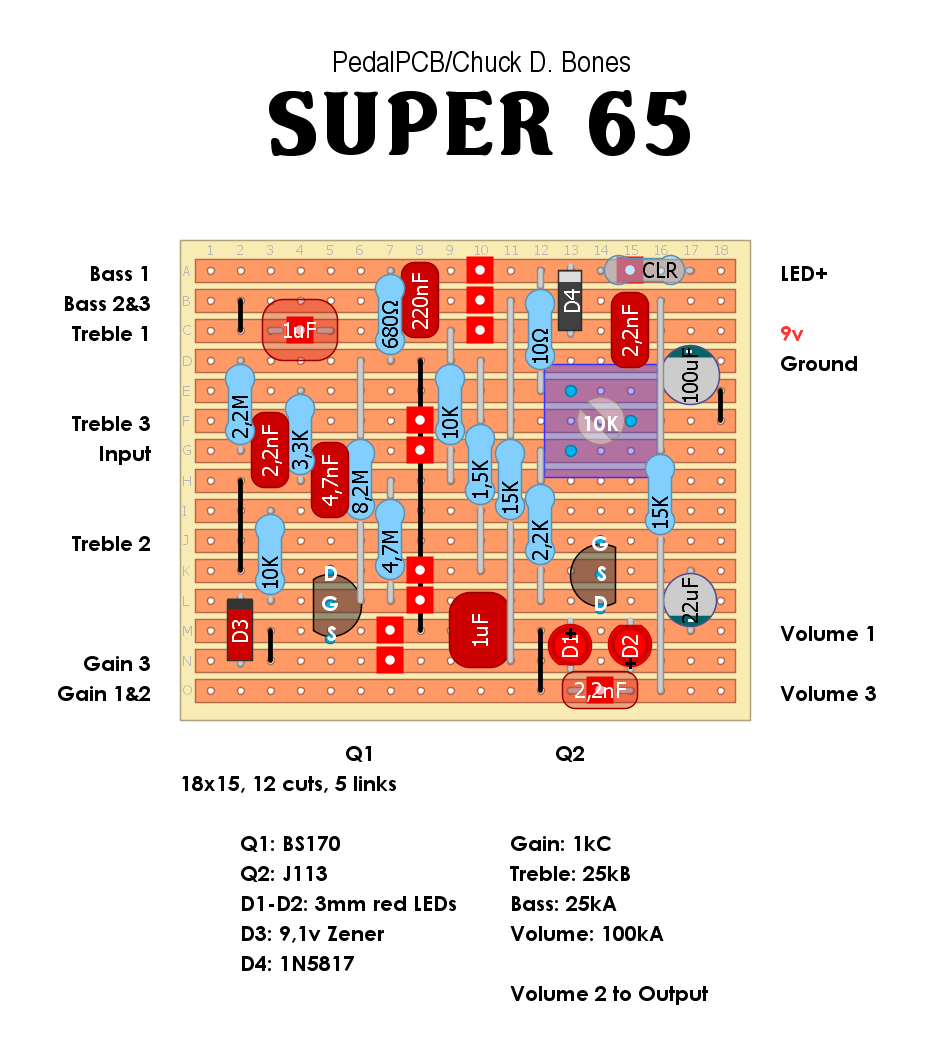

PedalPCB / Chuck D. Bones Super 65

13 Jun 202616 Aug 2024 by chords

Schematic and more info can be found HERE.

Categories Uncategorized Tags Booster, Chuck D Bones, dirtboxlayouts, Overdrive, Pedalpcb, Pre-amp, Verified
