PedalPCB Celestial Screamer b87a9c262a74

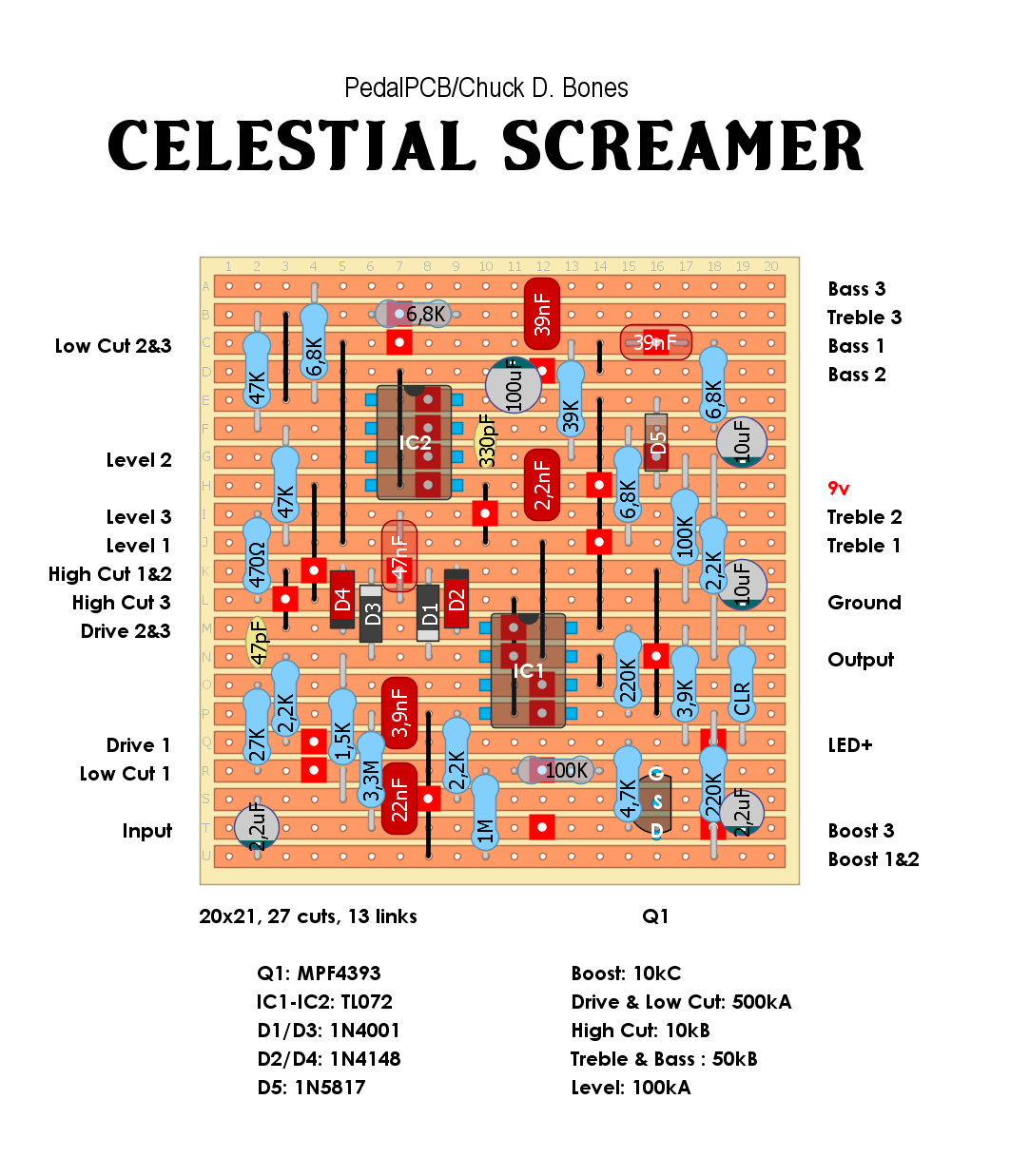

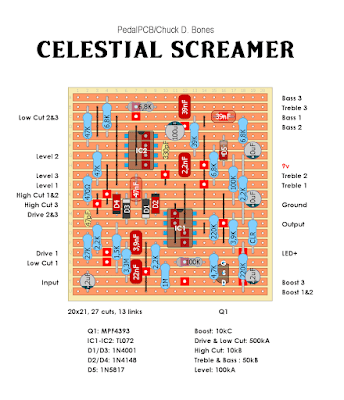

PedalPCB / Chuck D. Bones Celestial Screamer

13 Jun 202627 Aug 2024 by chords

Schematic is avaiable HERE.

Categories Uncategorized Tags Chuck D Bones, dirtboxlayouts, Overdrive, Pedalpcb, Unverified
