PedalPCB CMOS Raincoat 9c39ee12a489

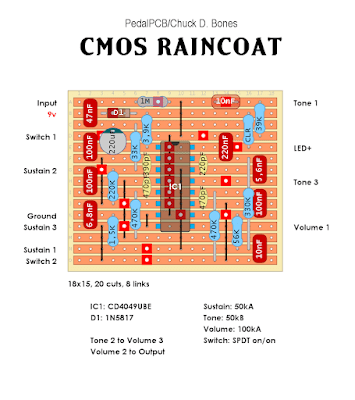

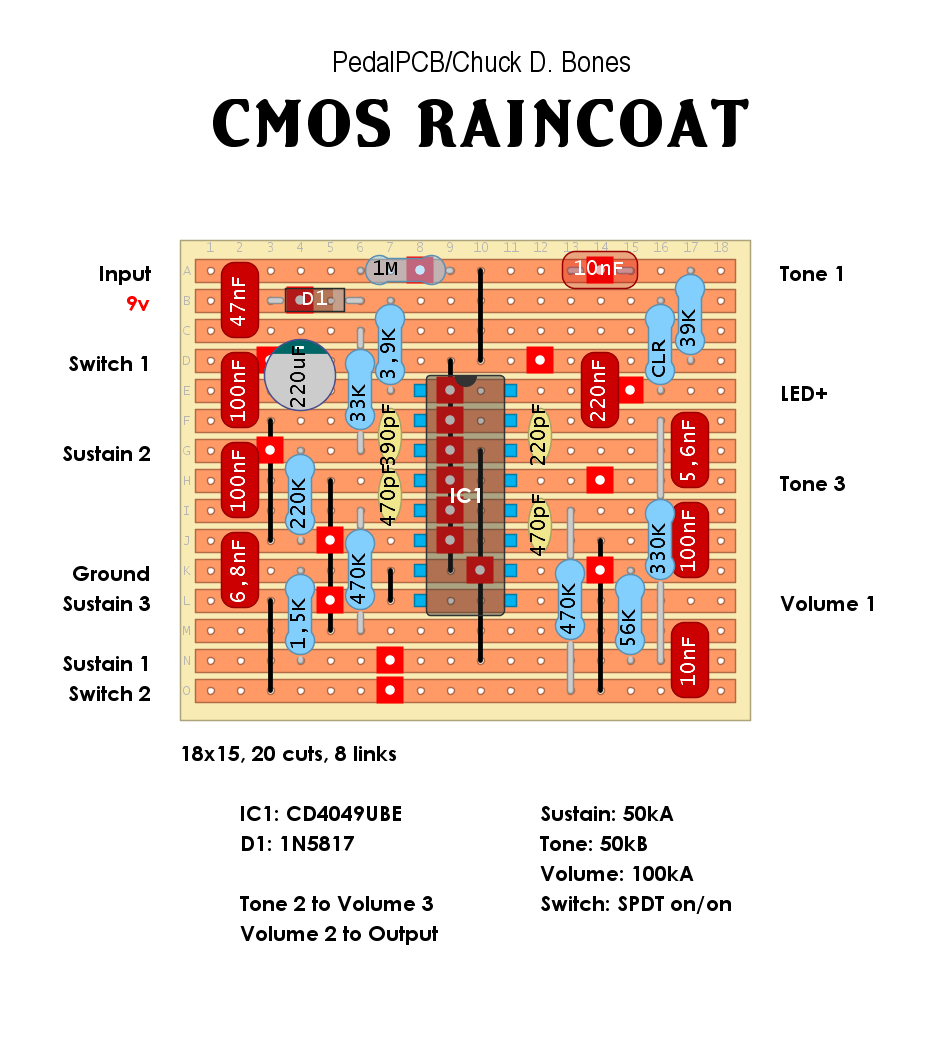

PedalPCB / Chuck D. Bones CMOS Raincoat

13 Jun 202615 Aug 2024 by chords

Schematic and more info is avaiable HERE.

Categories Uncategorized Tags Chuck D Bones, dirtboxlayouts, Distortion, Overdrive, Pedalpcb, Unverified
