PedalPCB Suburban Decay Maniac 8e4c3b14f9db

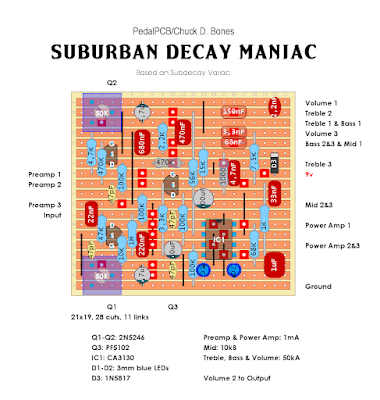

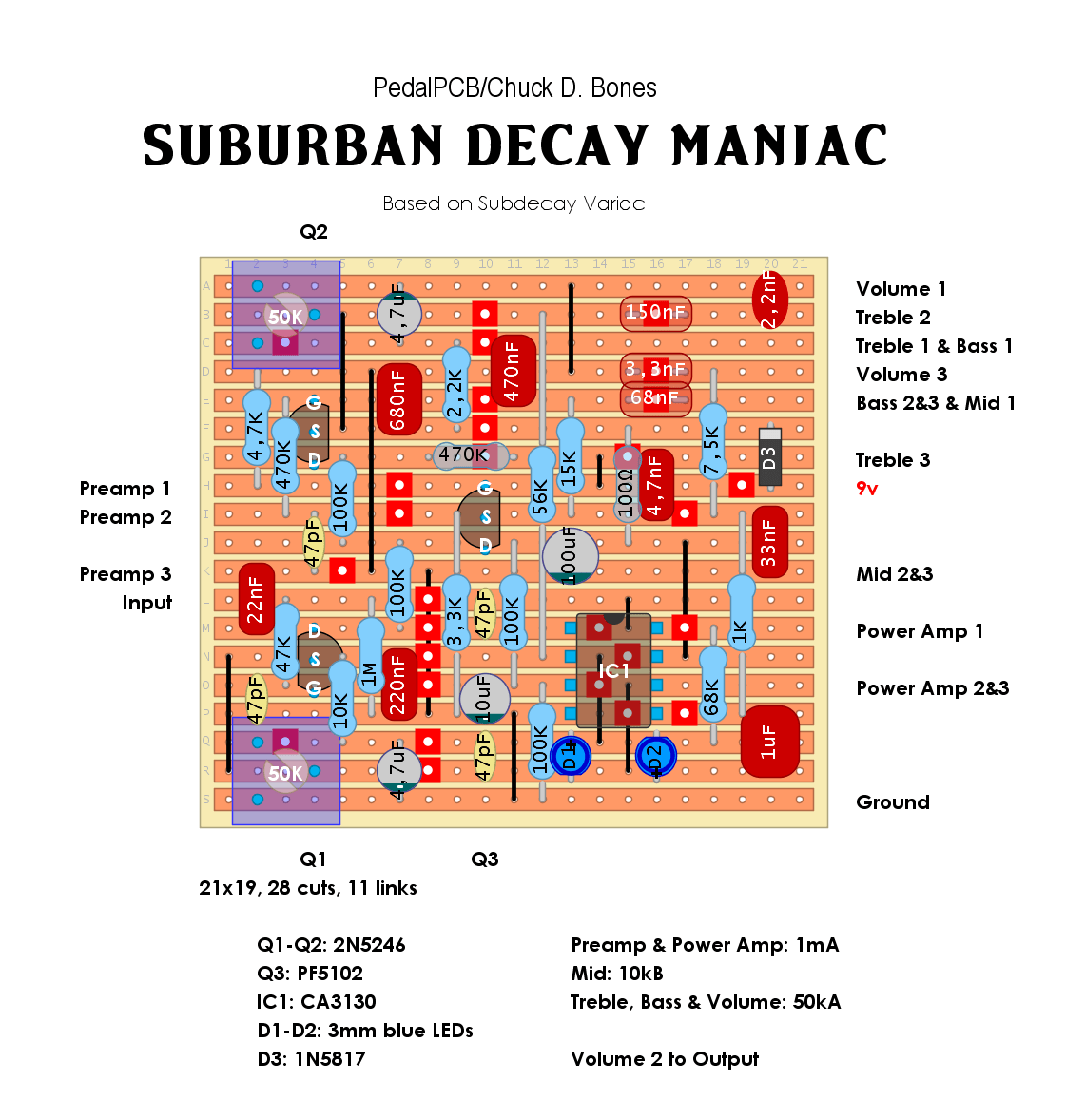

PedalPCB / Chuck D. Bones Suburban Decay Maniac

13 Jun 202630 Aug 2024 by chords

Schematic is avaiable HERE.

Categories Uncategorized Tags Chuck D Bones, dirtboxlayouts, Overdrive, Pedalpcb, Pre-amp, SubDecay, Unverified
