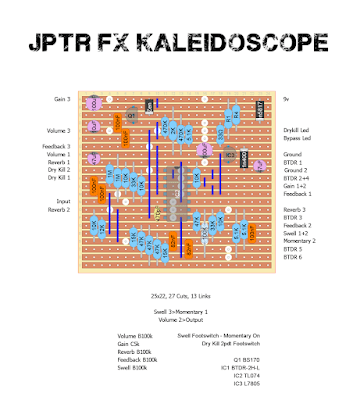

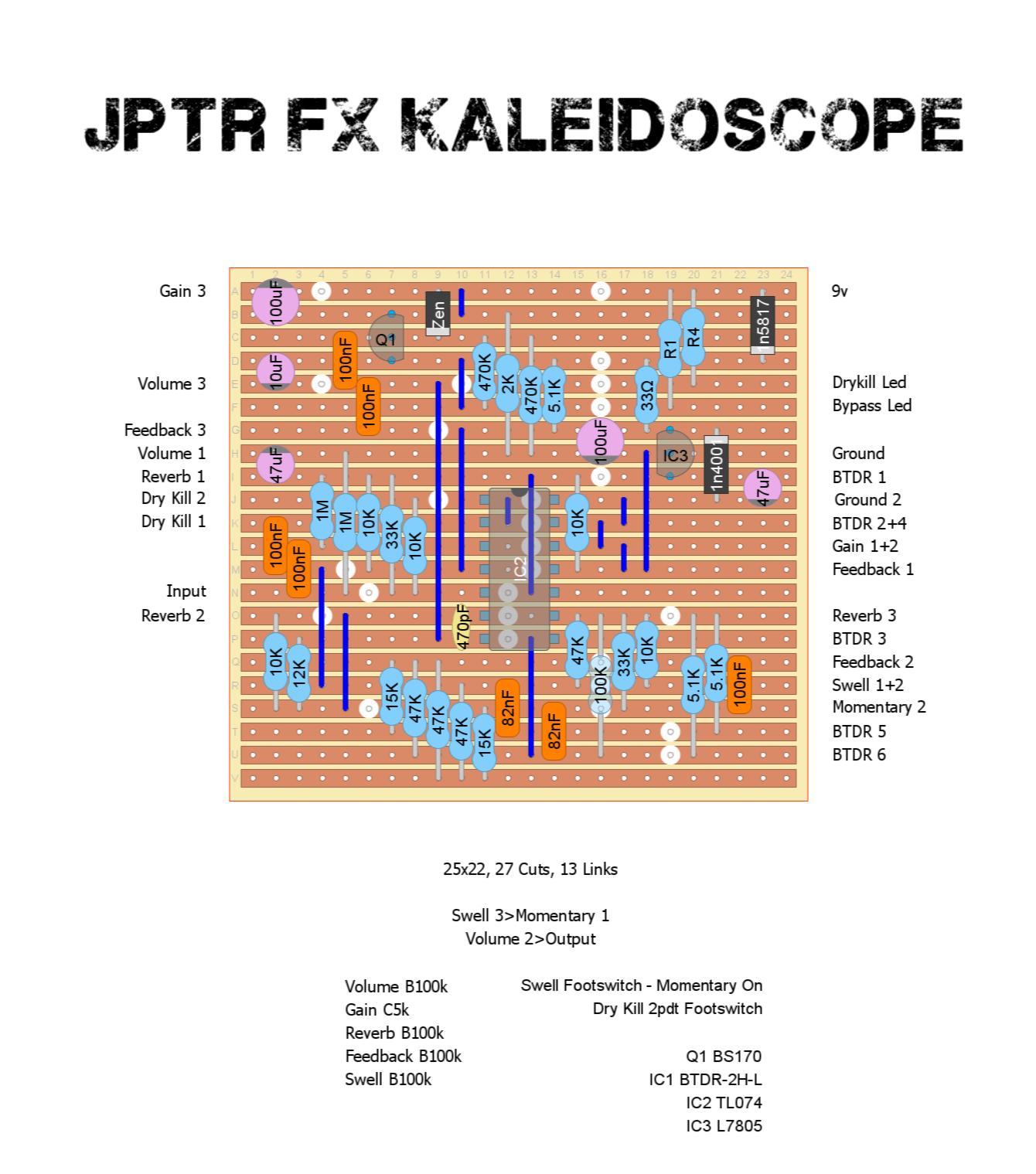

JPTR FX Kaleidoscope

13 Jun 202625 May 2025 by chords

Traced by Jordan Fontaine.

Schematic is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, iJordan Fontaine, JPTR FX, Reverb, Verified
