VOX: AC2 & AC30 Schematics, EL34 based

 The little-known EL34 Vox amps from the late fifties, one of which is fixed bias.   https://www.voxac30.org.uk/vox_ac2_30_1957.html.

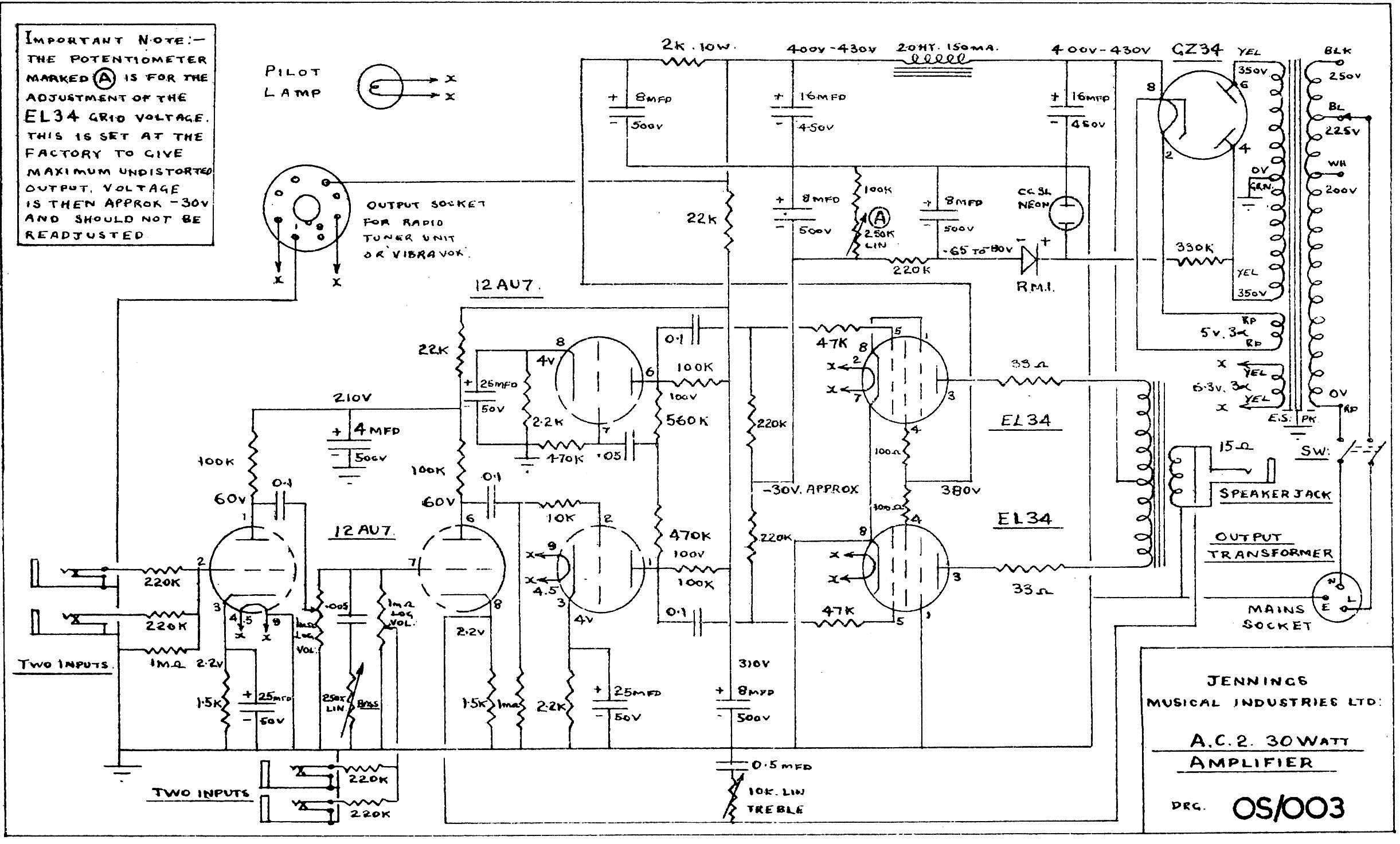

VOX AC2, 30 WATT AMPLIFIER.  OS/003 (FIXED BIAS)

VOX AC2, 30 WATT AMPLIFIER.  OS/003 (FIXED BIAS)

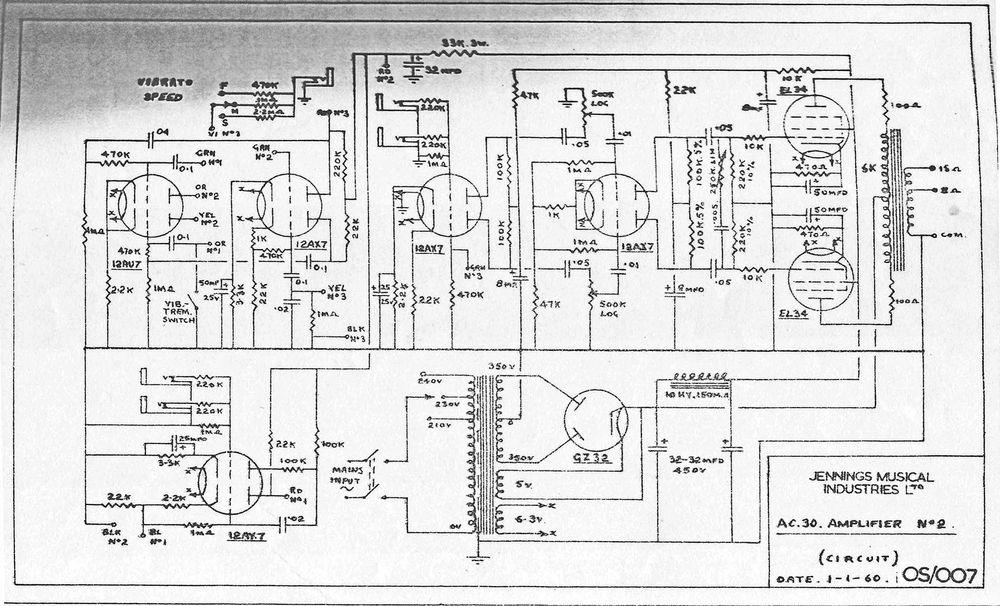

VOX AC30, NO2.  OS/007  1960 (CATHODE BIASED)

EL34: individual 470 ohm cathode resistor and 50uf bypass caps.  5k output transformer

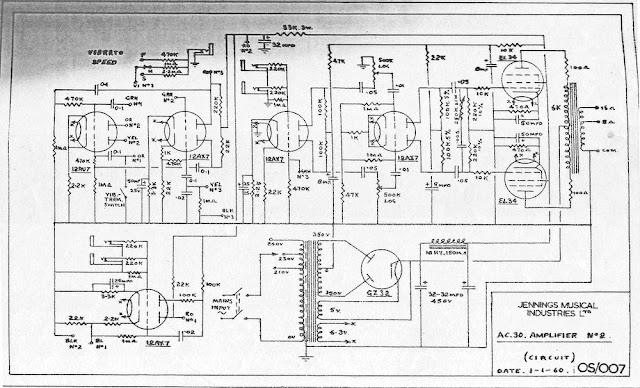

VOX AC30, NO2.  OS/007  1960 (CATHODE BIASED)
