Just a Fuzz Face layout that I used recently and want to make note of – it’s based on the one knob fuzz line, which is a handy little layout, but didn’t quite suit my needs. With some minor adjustments, it can be used for most fuzz face variants – component table here.

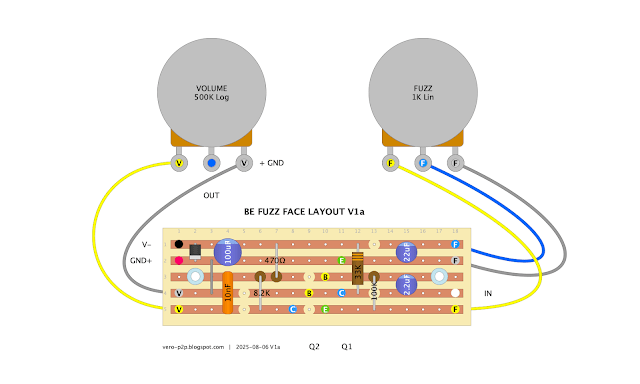

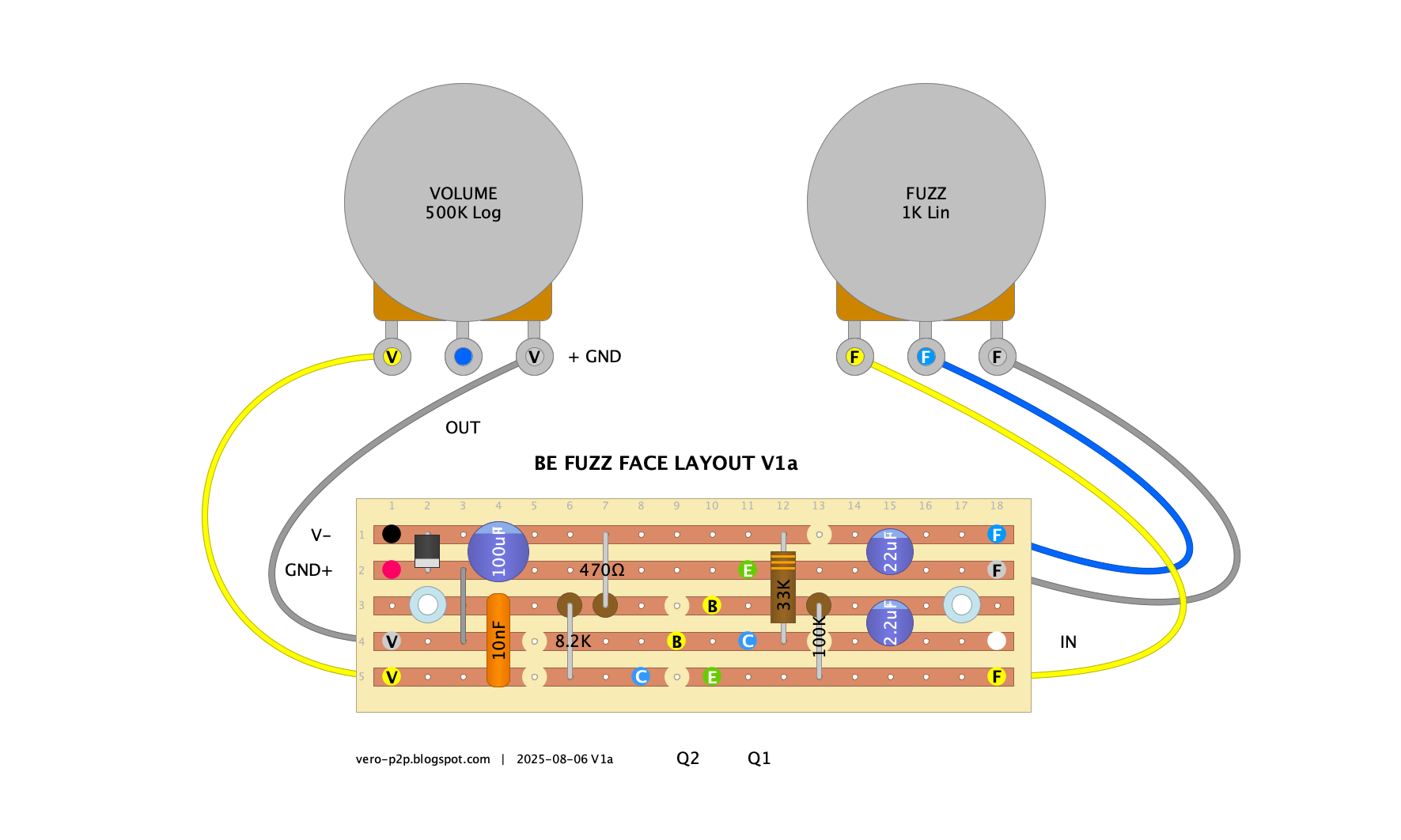

FUZZ FACE – 0.15″ VERO LAYOUT – BE V1

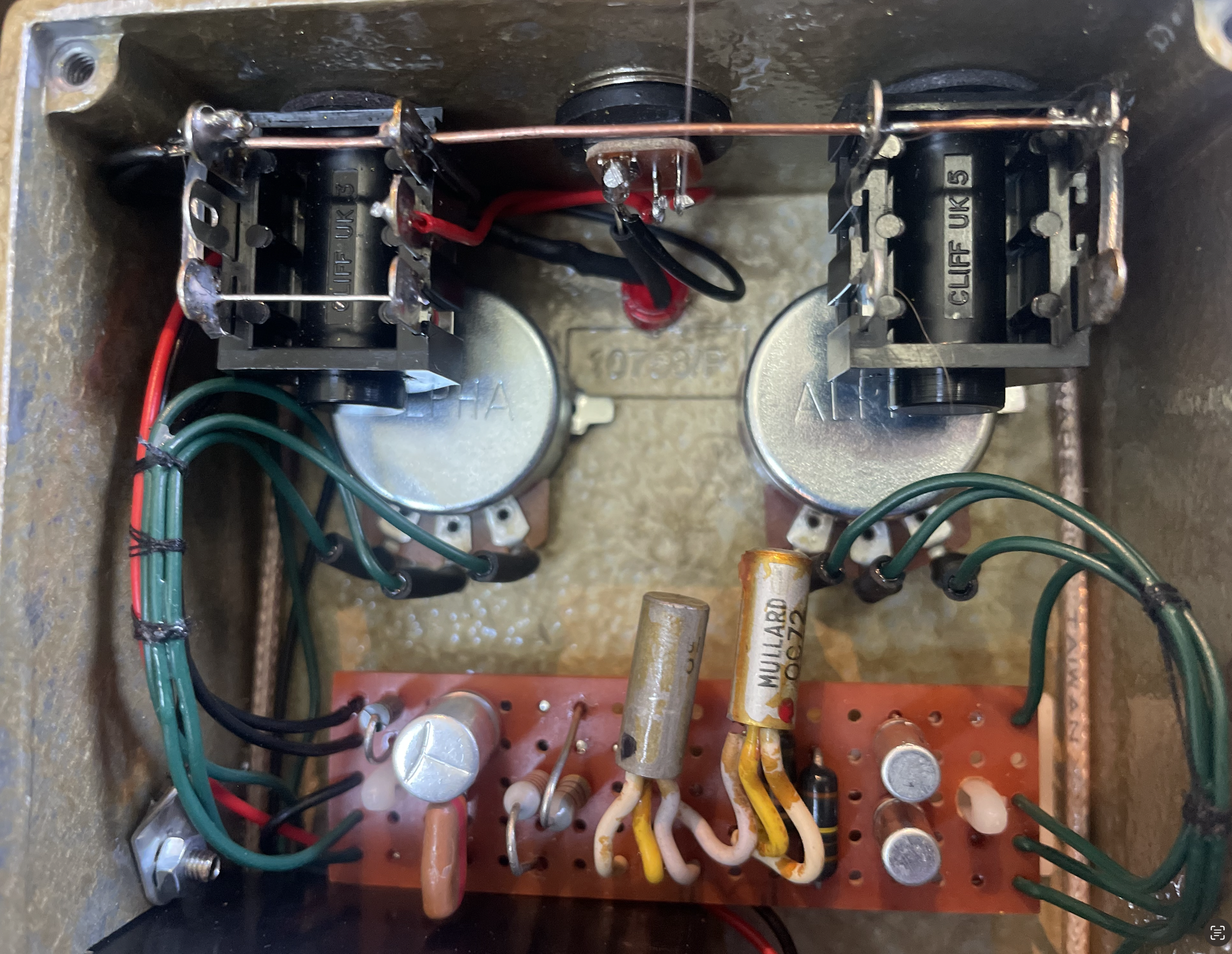

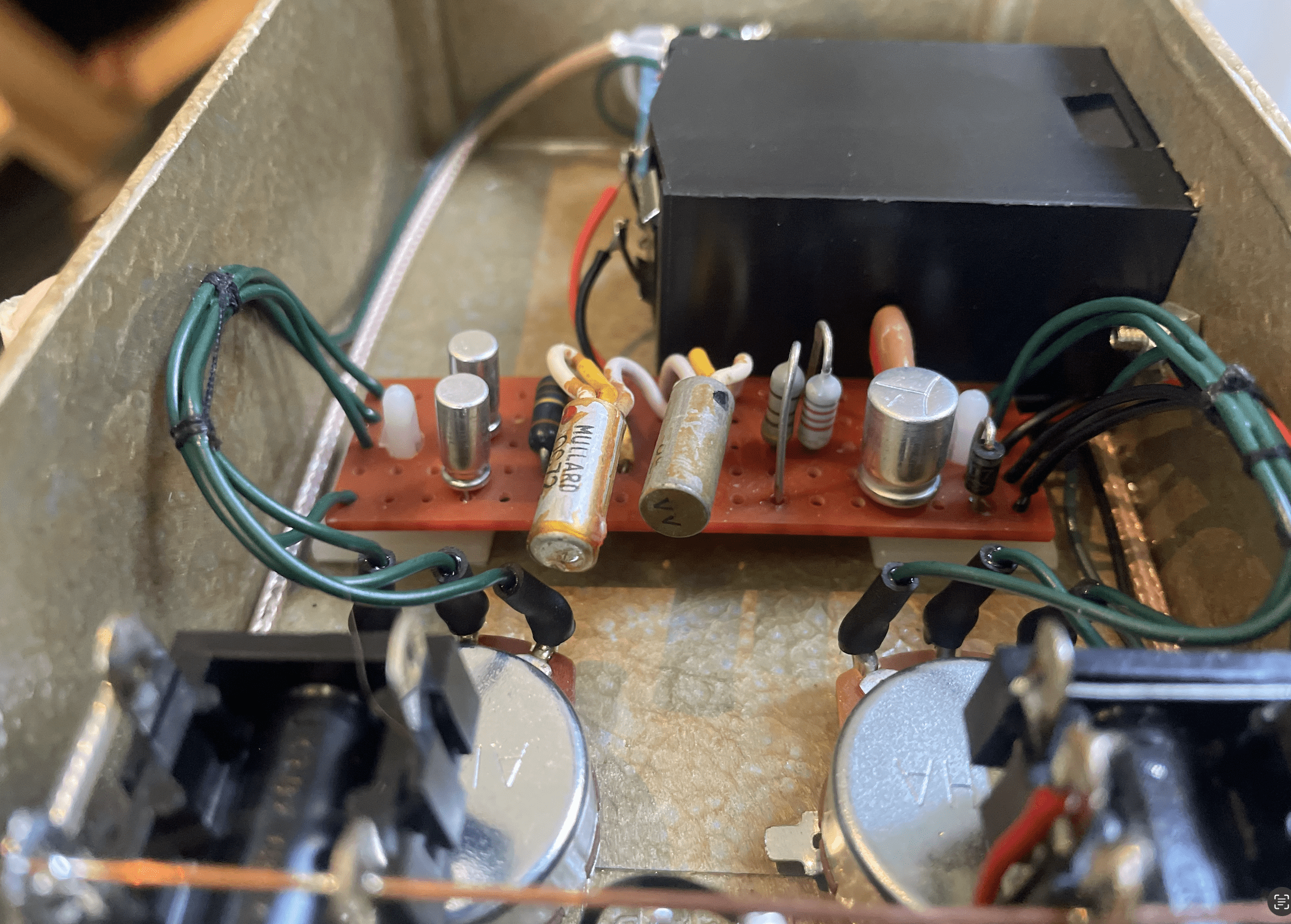

The photo doesn’t exactly match the layout above, as I routed some wires through the holes and under the board to make things a little neater, and I updated the layout after making the first one. There were also some component value tweaks.

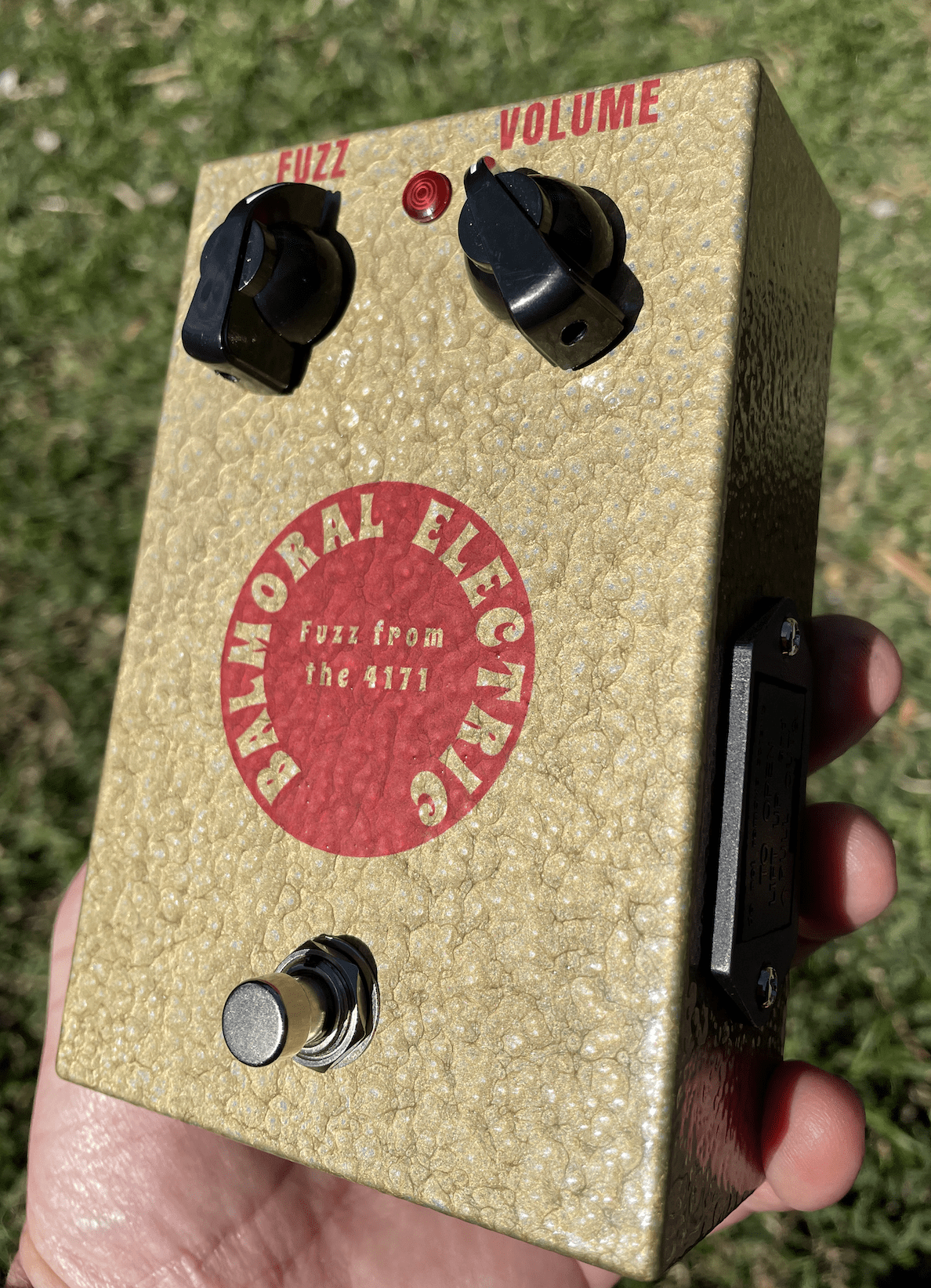

Hammond Eddystone Enclosure, 145 x 95 x 49mm
Knobs: 25 x 25
Stomp: 20
LED: 12.5
Cliff Jacks: 20, offset 5
