PHILIPS: Model 976B PA Amplifier

Philips 976B – I have had one previously that I documented here.

PHILIPS MODEL 976B VALVE PA AMPLIFIER

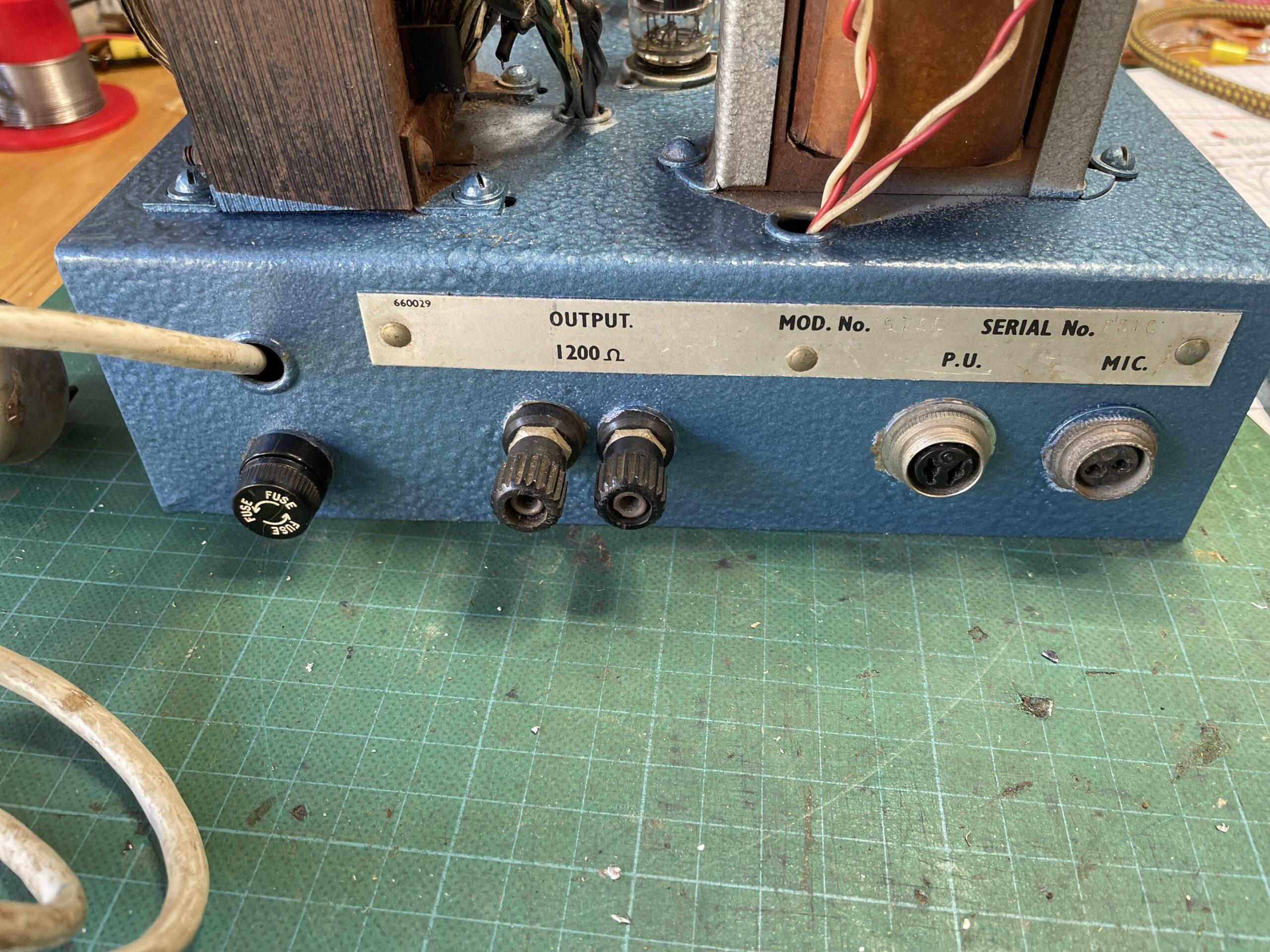

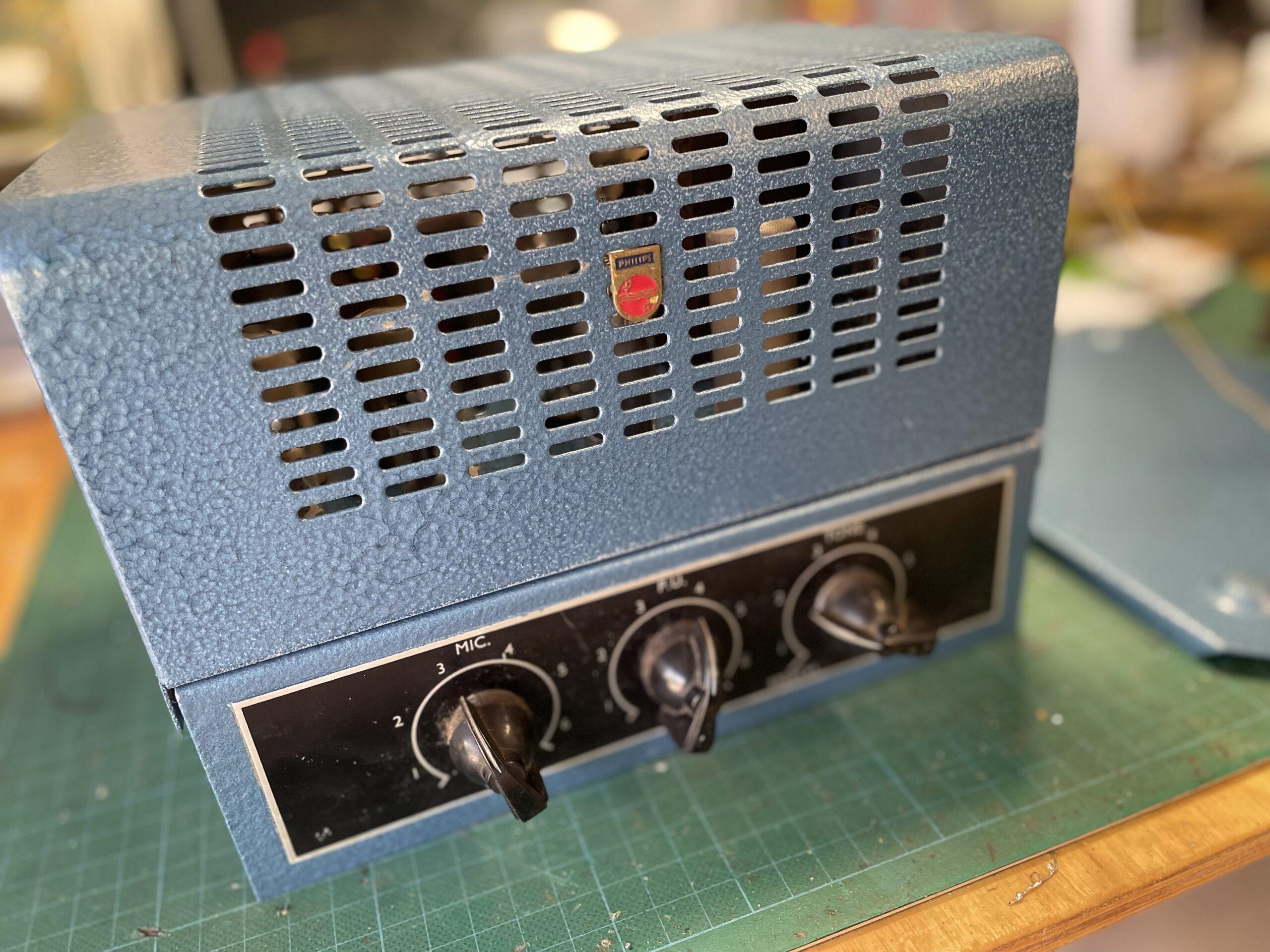

This is a small Australian-made valve PA amplifier from the mid to late fifties – about 8 watts, intended for 100v line systems running multiple speakers.  These were also sold as Steanes Sounds Systems using the same model number, marketed as a compact portable PA system, often with a couple of speakers and a mic on a stand.

It’s mostly original; it has had the filter caps bypassed replaced and a repaint at some stage.

I had to add a power switch, and input and output jacks.  The original power cord was really short and not in the best shape, so that went as well.

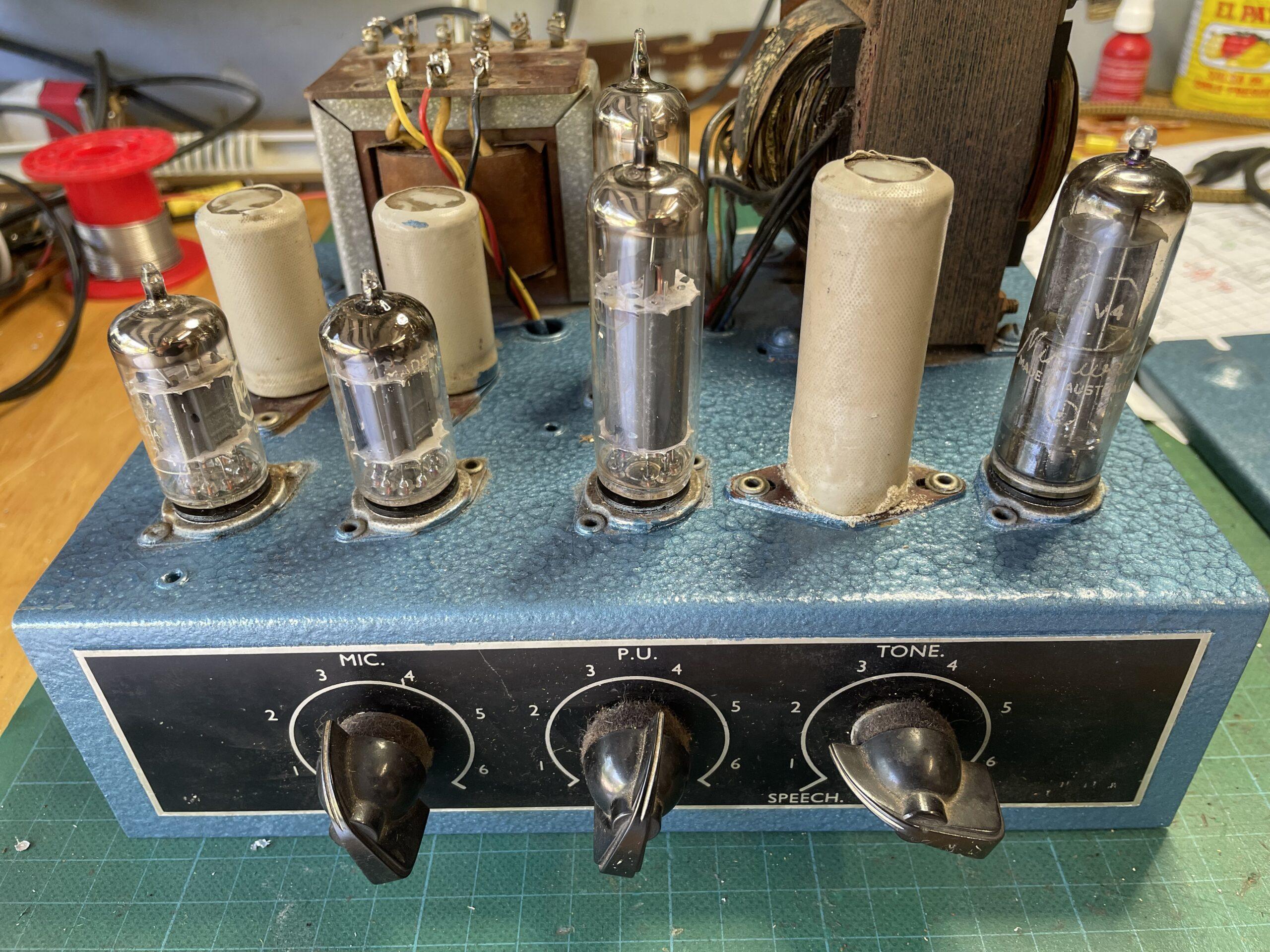

2 x 6M5 in the power stage, for about 8watts.

I replaced the original output transformer, as I was not keen on the configuration options.  It’s sounding great with a M1120.

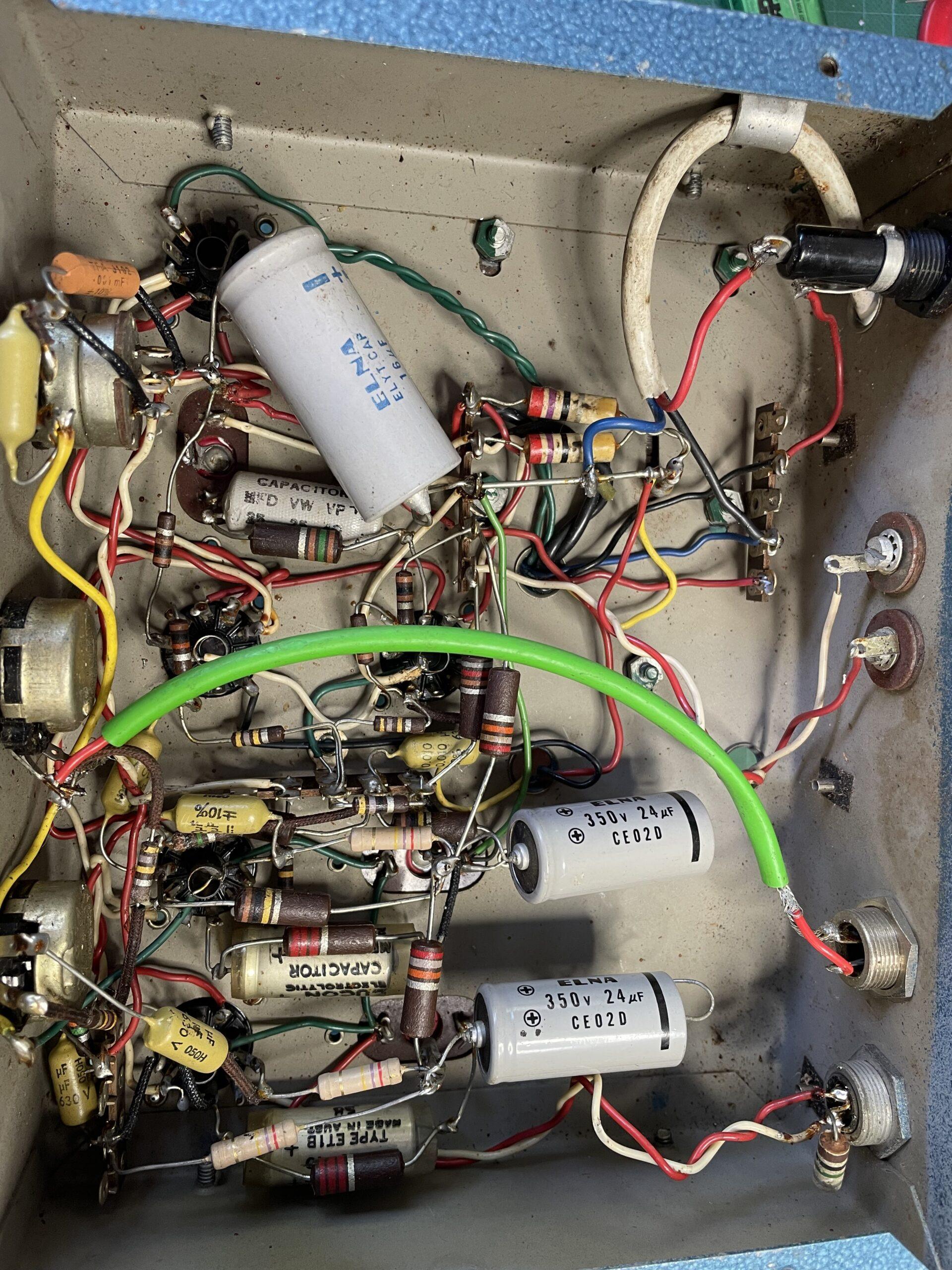

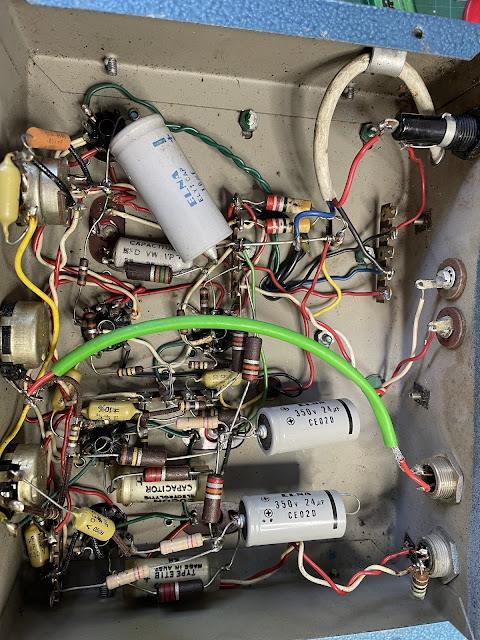

The original filter caps have been left in place, with new ones added in the chassis.  I don’t love the mounting method (or lack of), but at least the caps they used look the part.

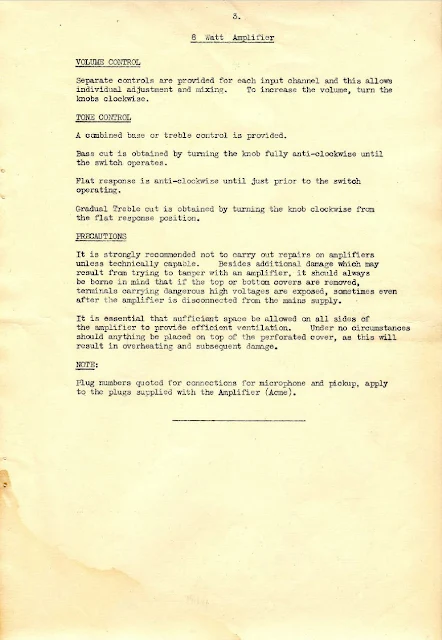

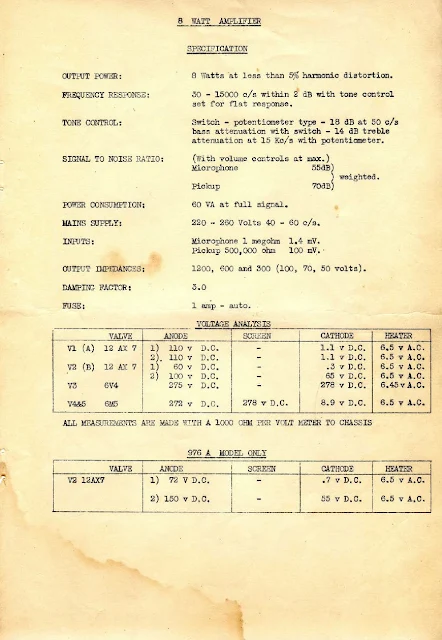

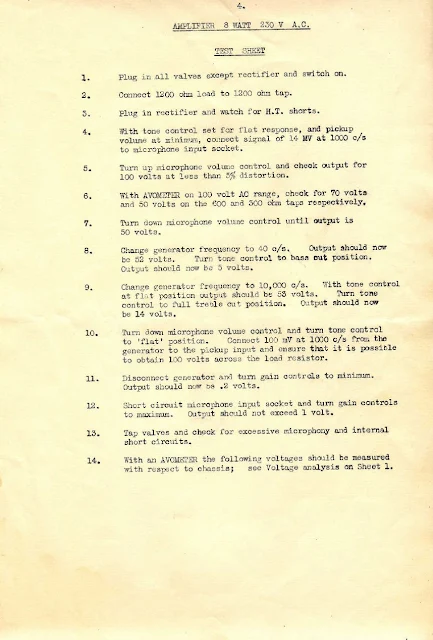

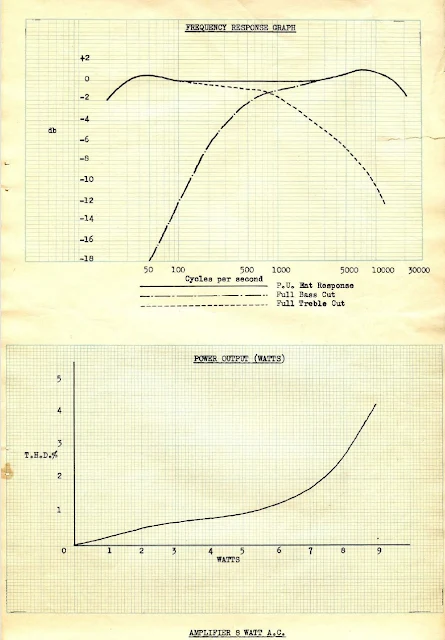

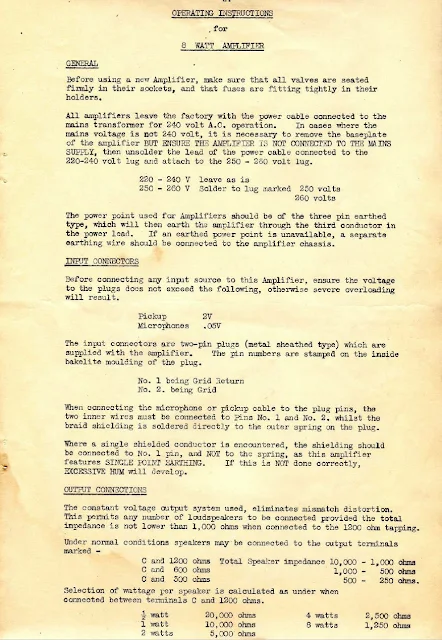

PHILIPS 976B SCHEMATIC & TECHNICAL MANUAL

MODS / CHANGES

I’ve left it close to stock in terms of the circuit, as I thought it sounded pretty good.

• Added input & output jacks

• Replaced the dodgy power lead and added a power switch & a jewel light

• Unused PU level pot now a Vox style cut control

• Swapped the output transformer due to limitations with secondary impedances

• Rebuilt the preamp and phase inverter, as the carbon comp hiss and crackle was just too much

• Moved the filter caps to some tag stips

Interestingly, there’s a small amount of bleed around the volume pot. It’s not a major issue—more of a curiosity. The two 12AX7 triodes share a cathode resistor, and there’s plate-to-grid negative feedback on the second stage, which creates an AC path around the pot. That allows a small amount of signal to reach the phase inverter even with the volume turned down.

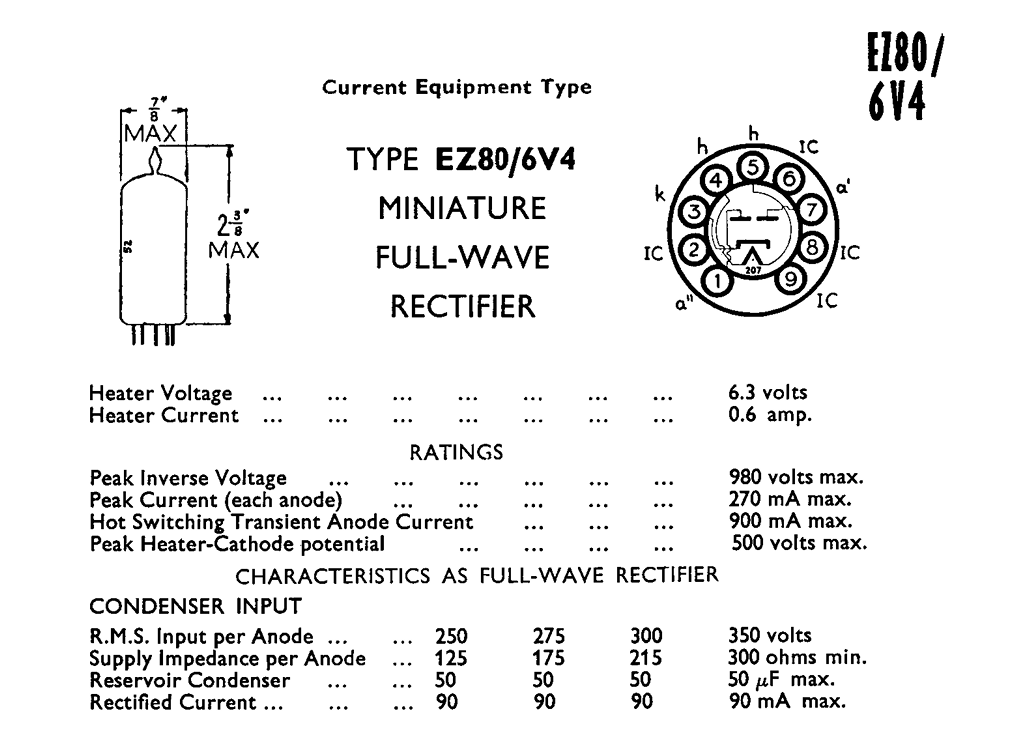

6V4 RECTIFIER

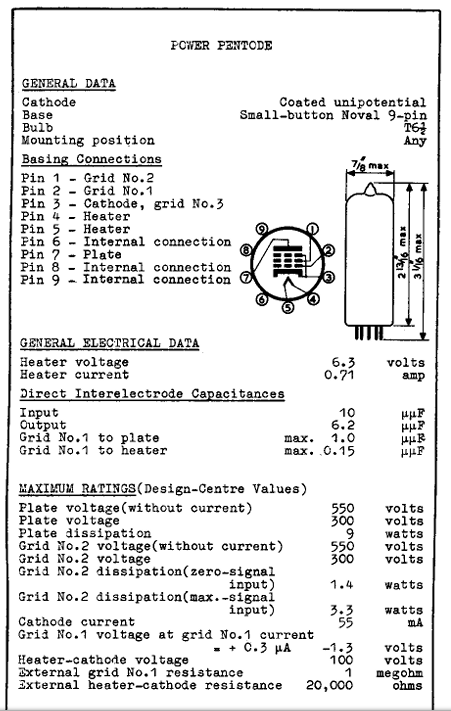

6M5 POWER PENTODE

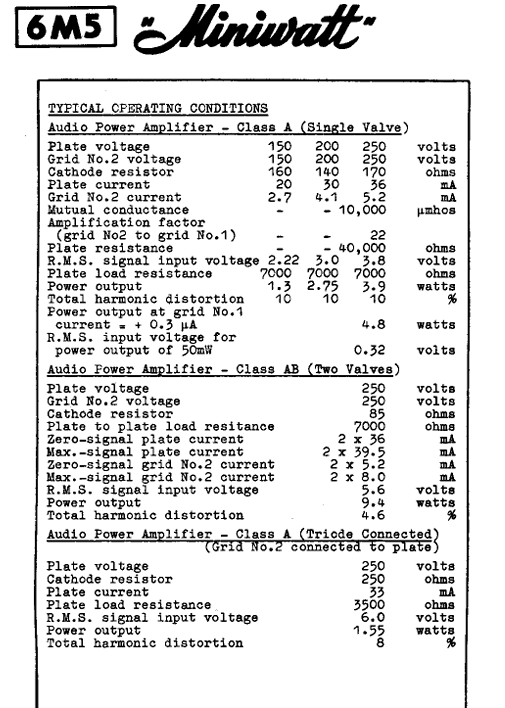

6M5 (EL80) pentodes appear to be unique to Australia – they’re similar to an EL84, but with a slightly different pinout and a little less power.  It’s often referred to as the noval version of the EL41.  Either way, I quite like the sound of these being driven.

{
