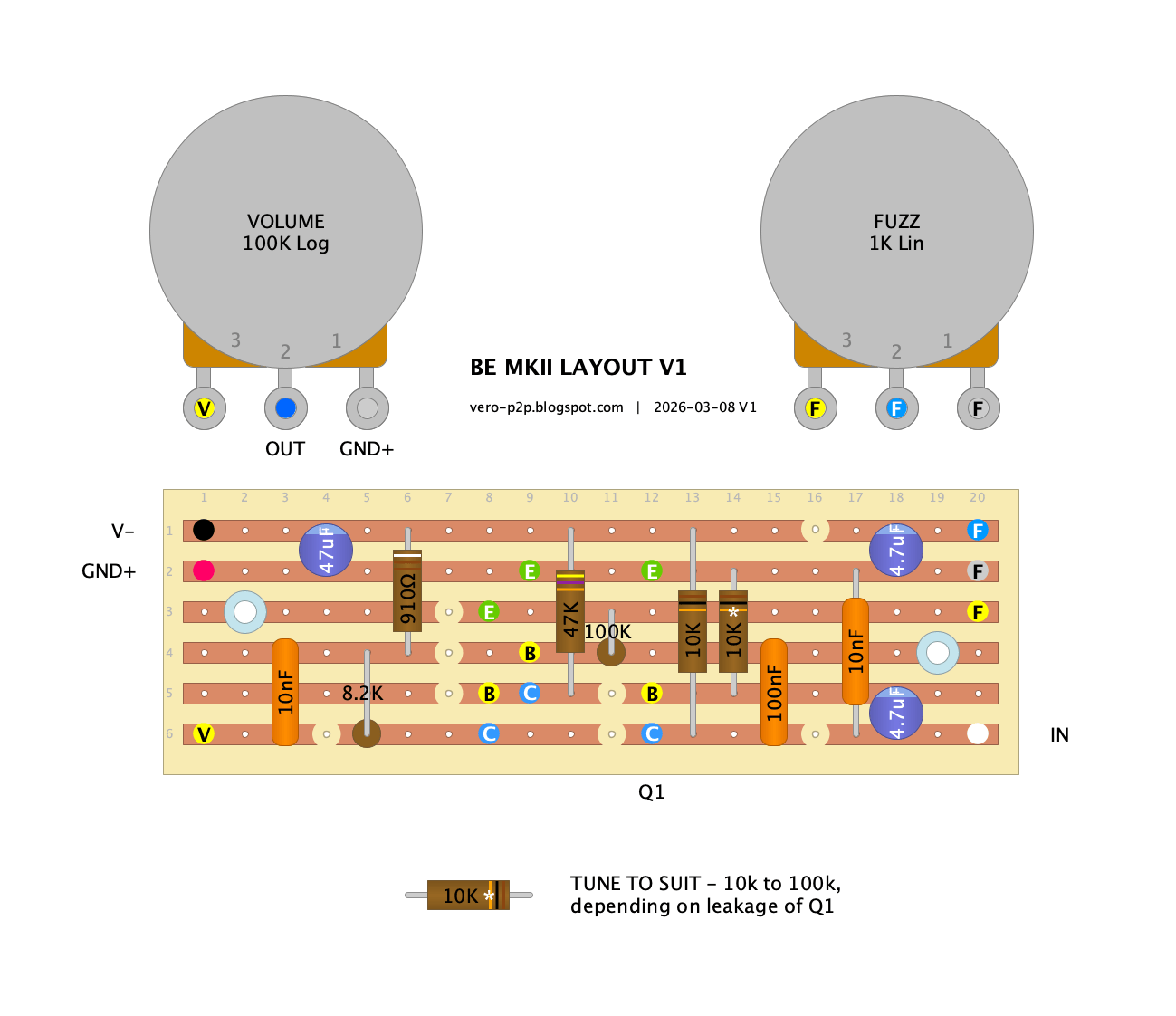

One of my projects – just a MKII layout built to suit a particular enclosure and layout style that I’ve been working with lately.

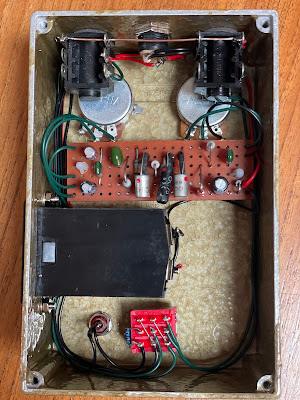

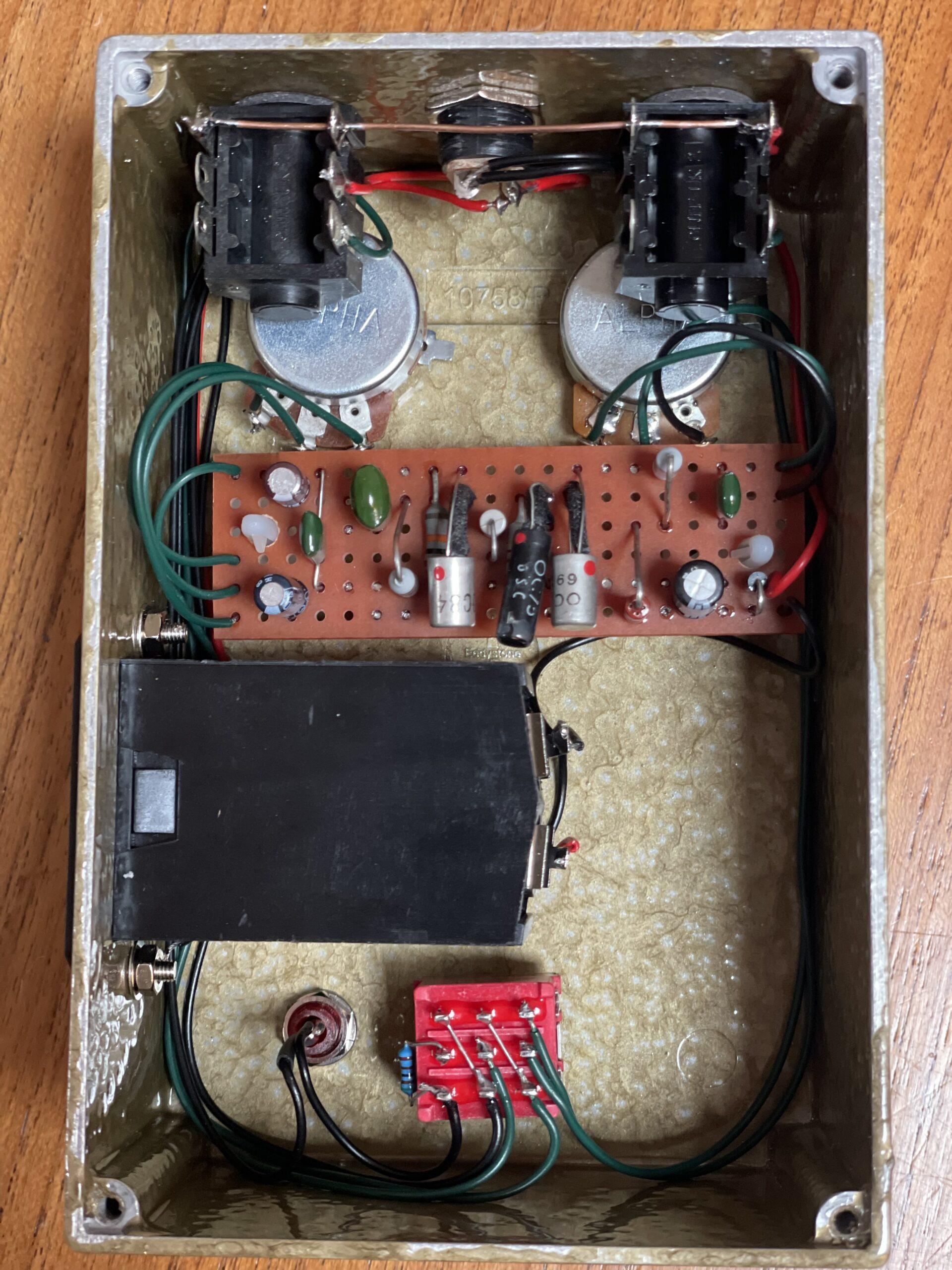

The board is just the right size for this enclosure. Most of the assembly is done on a wiring jig first, before transferring it into the enclosure – would be a nightmare to do it any other way.
Sounds pretty good. The OC75 adds some texture without the need to go all out and use three of them. They’re a little expensive for that these days. The OC84 are pretty decent.

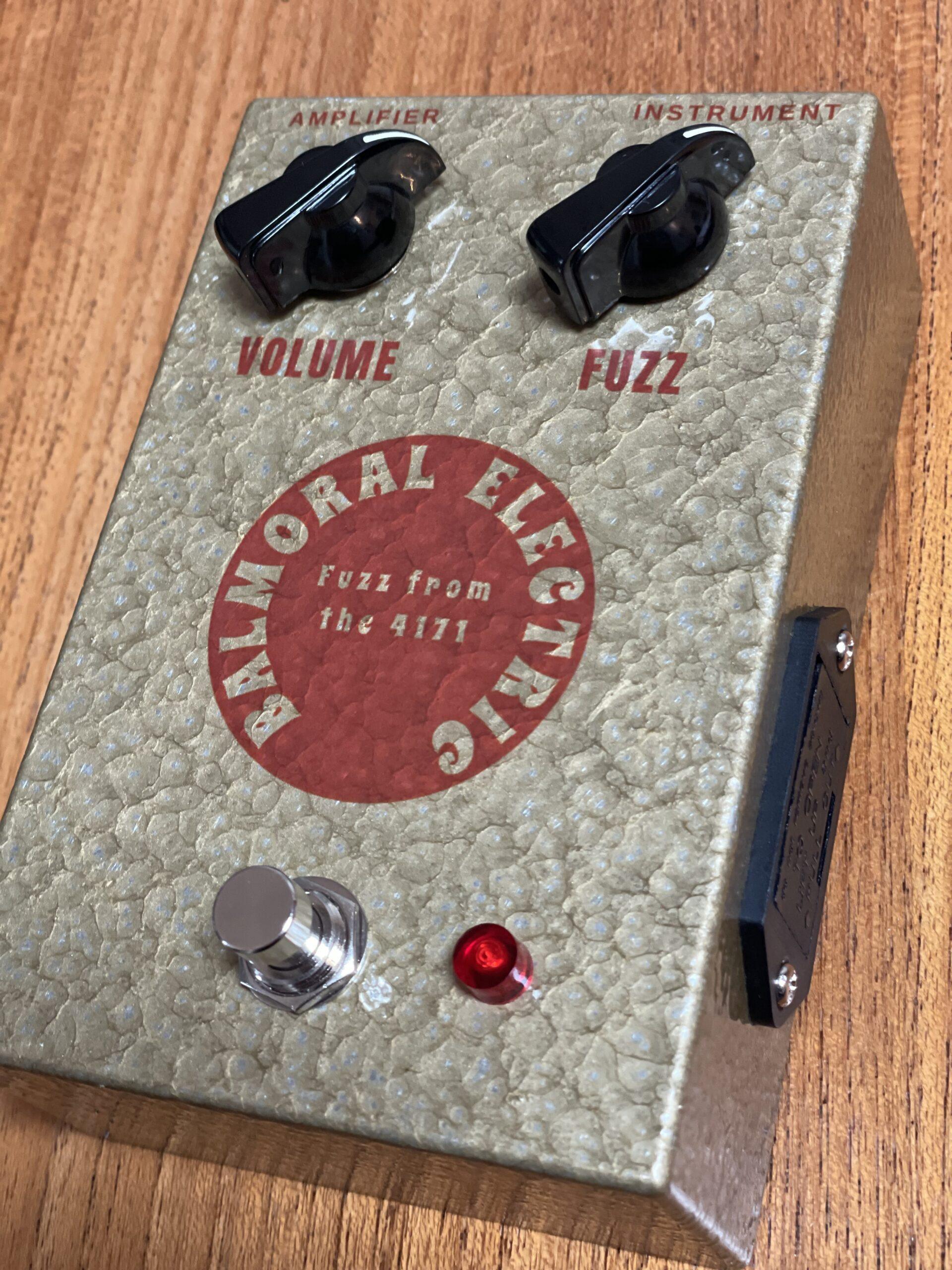

BE MKII TONE BENDER
Q1: OC84 Q2: OC75 Q3: OC84
