CELESTIAL CIRCULATOR ed5e3b489608

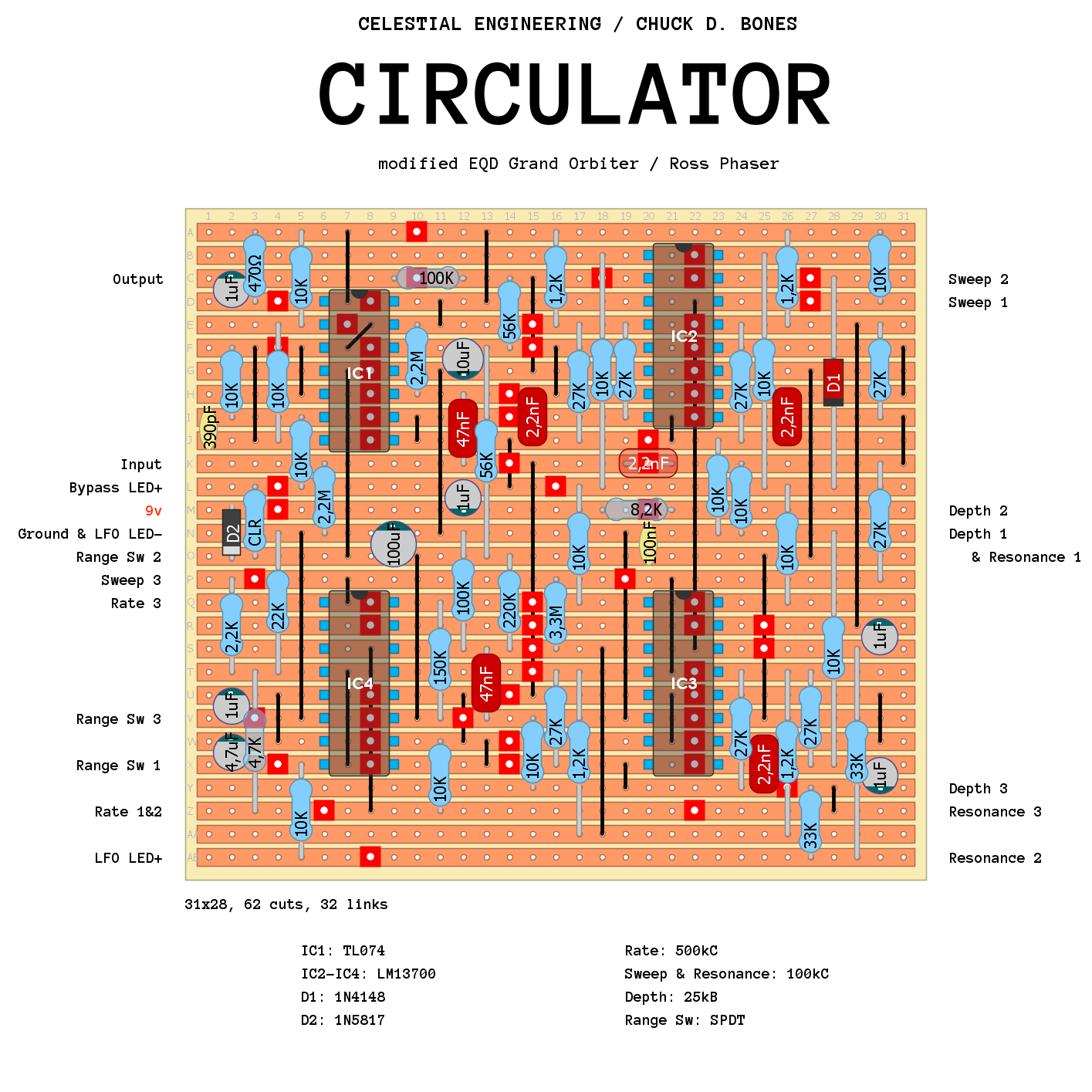

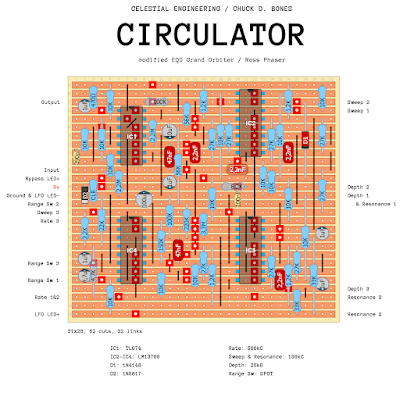

Celestial Engineering Circulator

4 Jun 202621 May 2026 by chords

Per request, schematic is avaiable HERE.

Categories Uncategorized Tags Celestial Engineering, dirtboxlayouts, EarthQuaker Devices, Modulation, Phaser, Ross, Unverified
