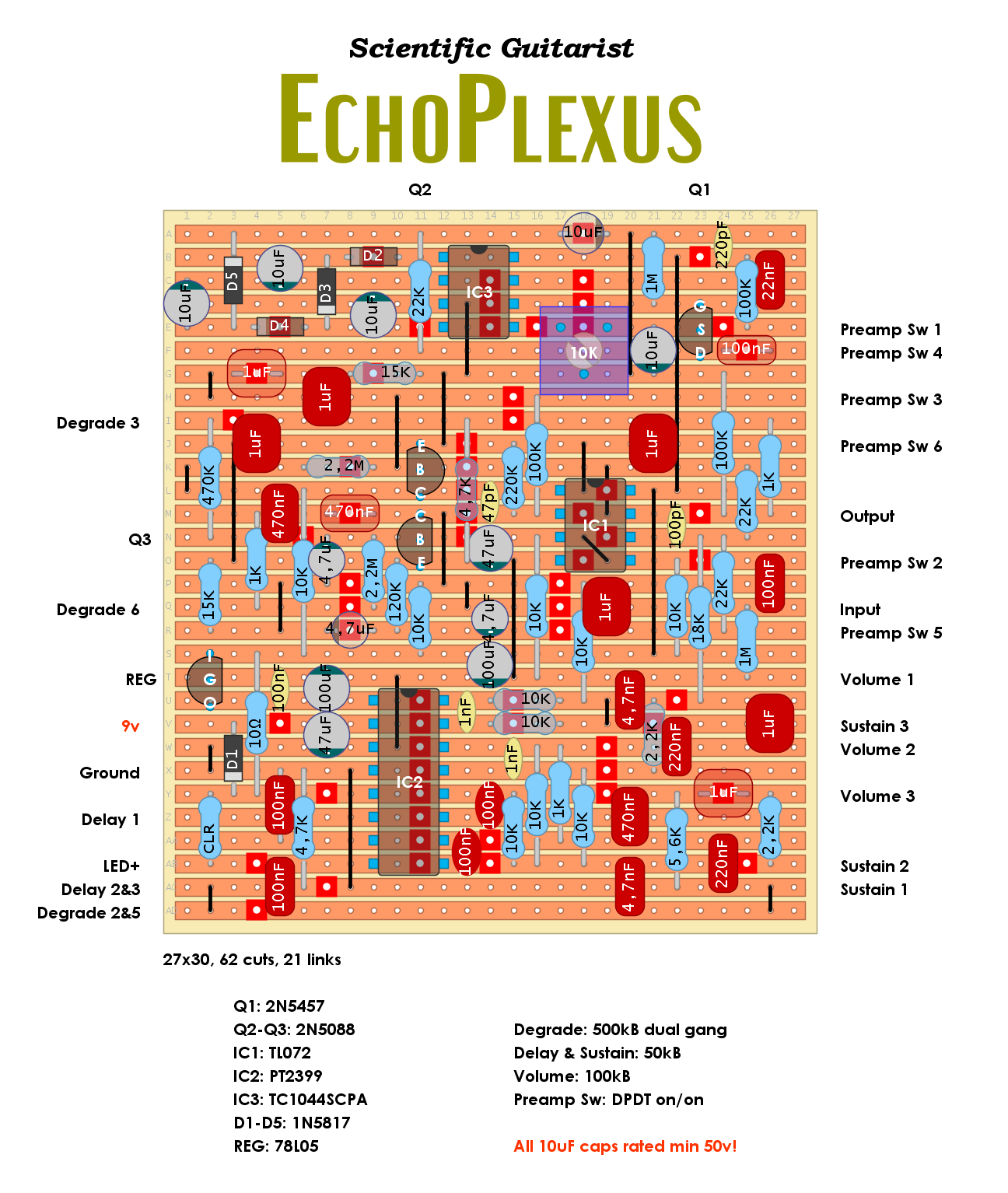

Echoplexus Tape Delay

4 Jun 20269 May 2026 by chords

Schematic and more info is avaiable HERE.

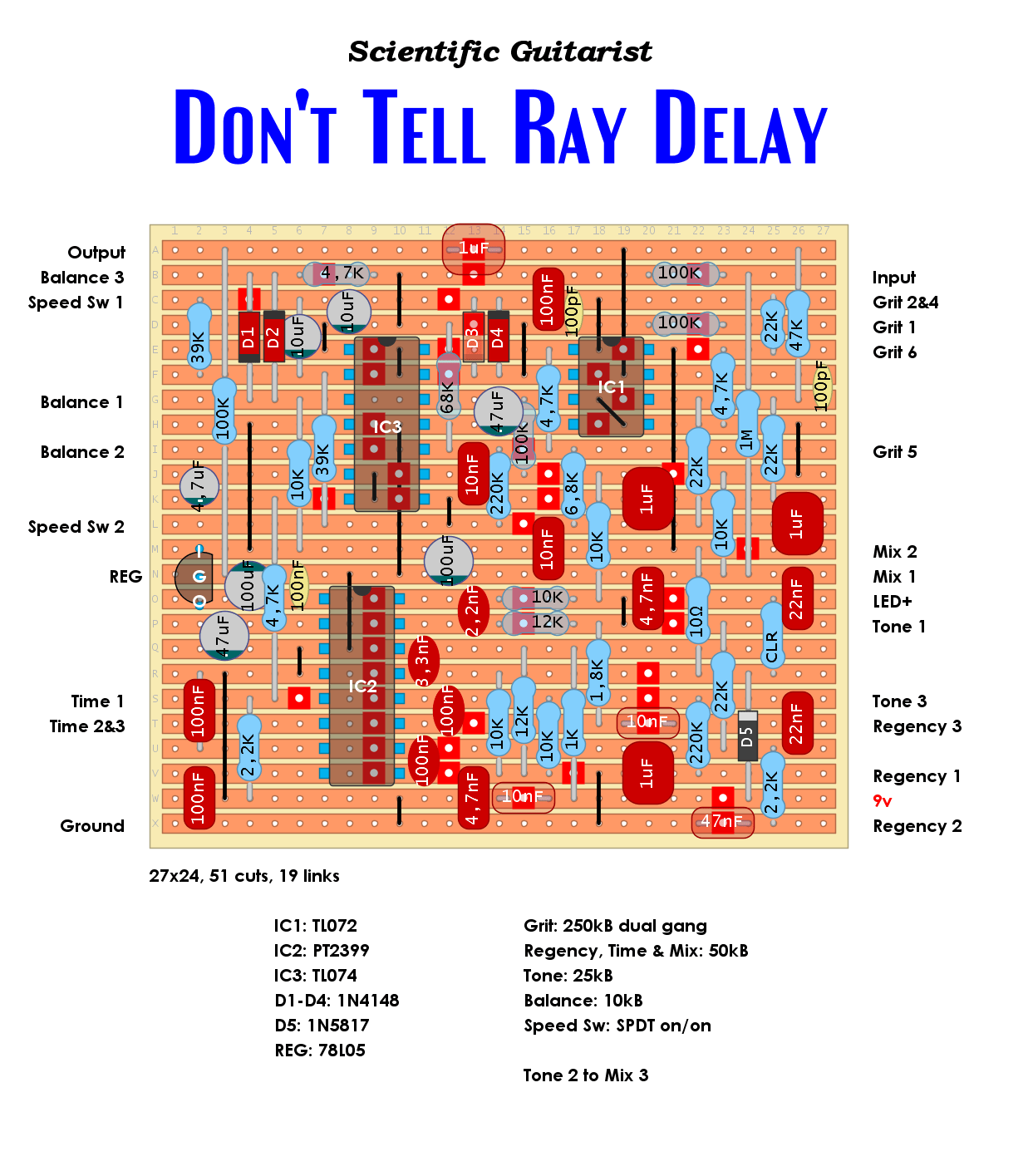

Don’t Tell Ray Delay

4 Jun 20269 May 2026 by chords

A DIY project that looks pretty cool, a PT2399 Oil Can Delay emulator… Schematic and a writeup is avaiable HERE.

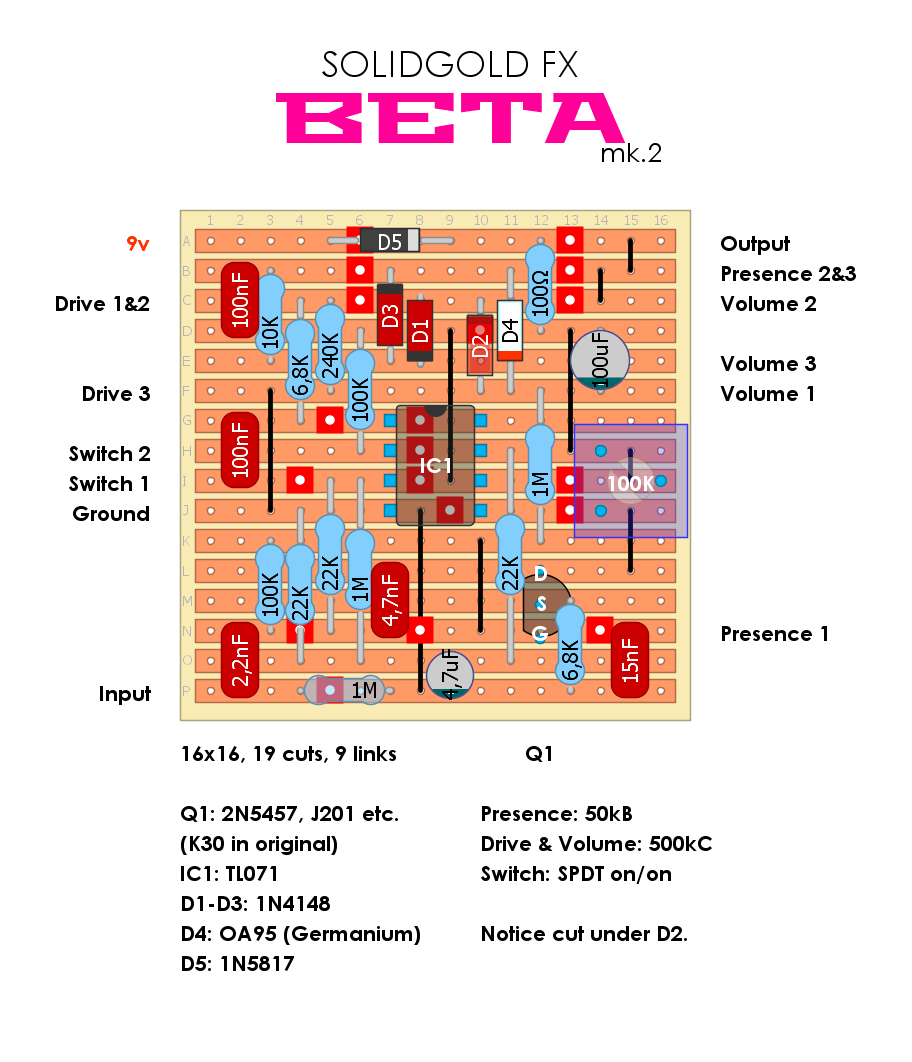

Solid Gold Fx BETA Mk. II

4 Jun 20268 May 2026 by chords

Schematic is avaiable HERE.

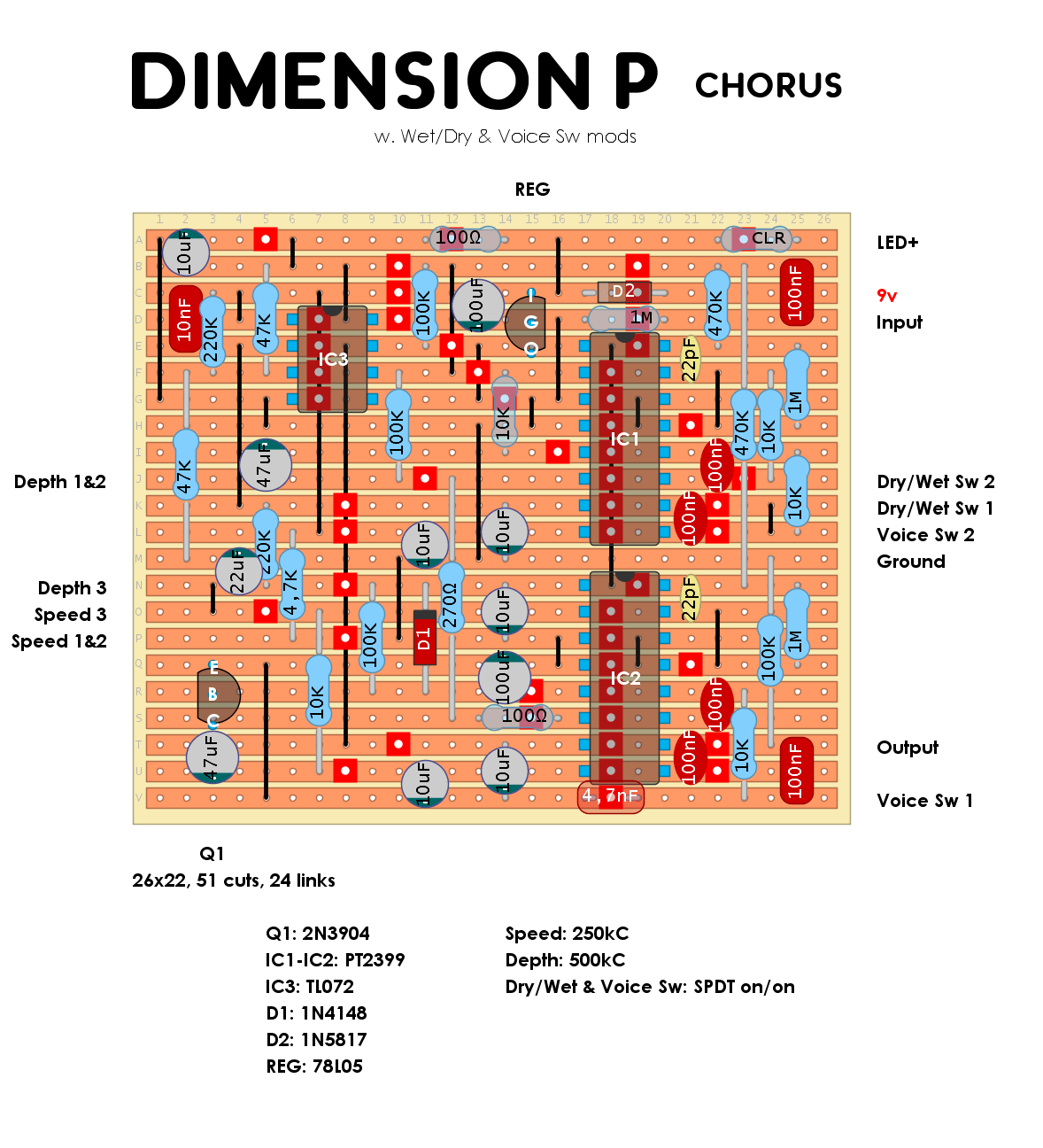

Dimension P Chorus

4 Jun 20268 May 2026 by chords

Based on the modified V1,1 schematic which is avaiable HERE.

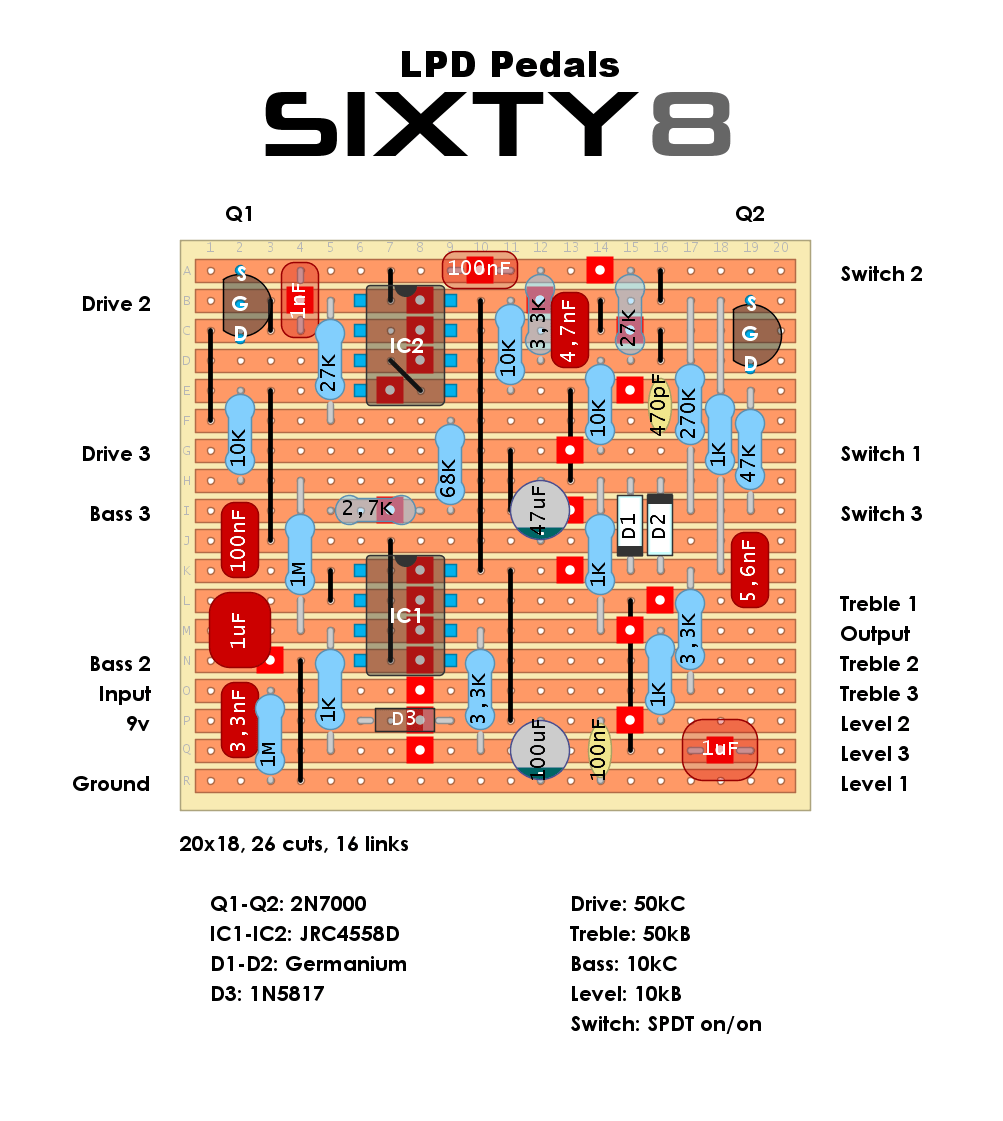

LPD Pedals Sixty8

4 Jun 20267 May 2026 by chords

Schematic is avaiable HERE.

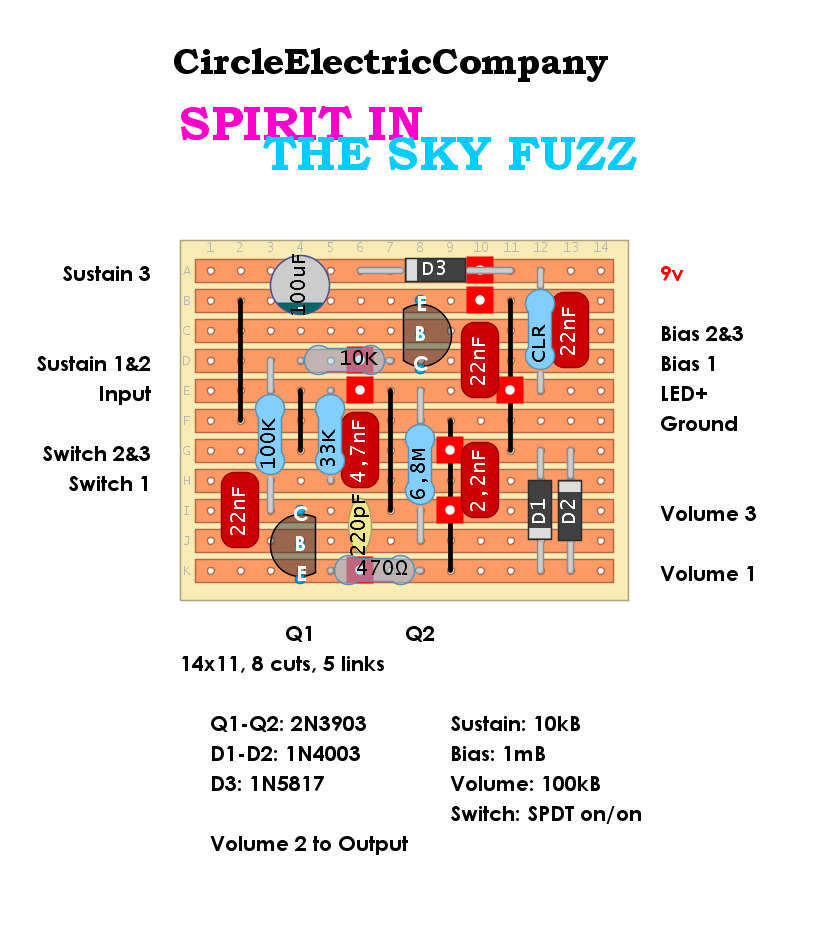

Circle Electric Co. Spirit in the Sky Fuzz

4 Jun 20267 May 2026 by chords

Circkle Electric Company Spirir in the Sky c992616e4a5b

Schematic is avaiable HERE.

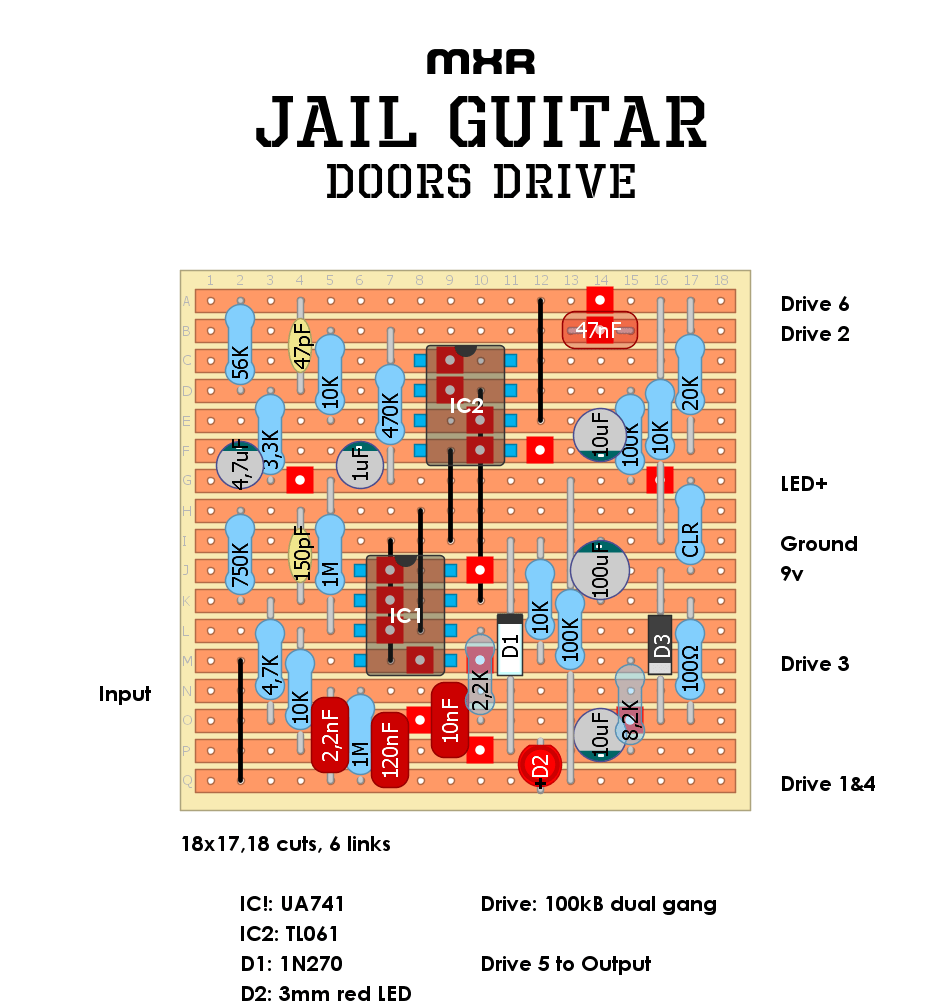

MXR Jail Guitar Doors Drive

4 Jun 20266 May 2026 by chords

Brothers and Sisters, schematic is avaiable HERE.

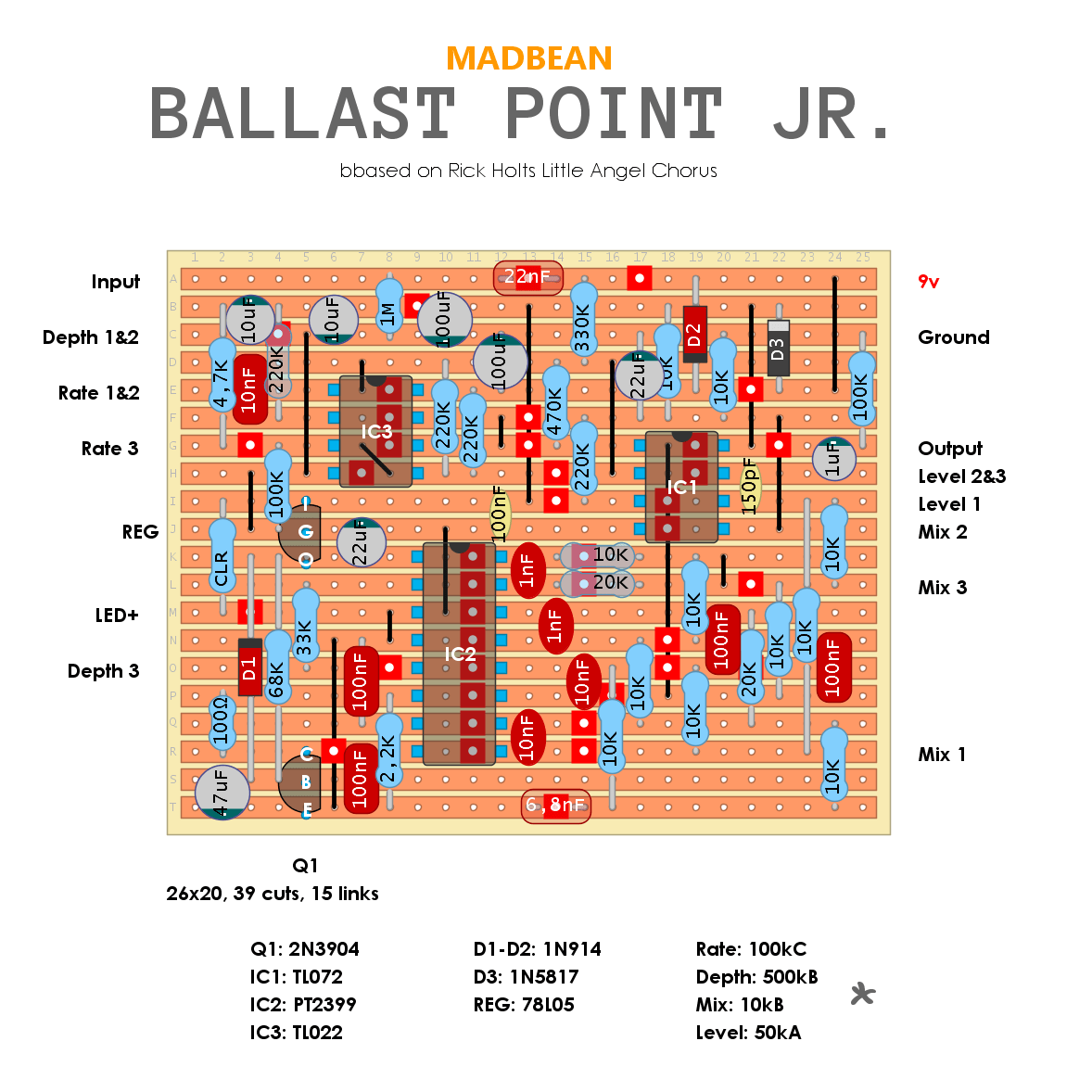

Madbean Ballast Point Jr. /Little Angel Chorus

4 Jun 20266 May 2026 by chords

Ok, I guess I’m back from another hiatus. Quite few layout is in the pipeline so things should be much more active from my side. First out is a DIY classic; Rick Holts Little Angel Chorus with some useful mods by Madbean Pedals. Schematic and more information HERE.
