Got a request for this one and we can always do with more reverb. It’s a simple one-knob BTDR-2 based circuit and should fit easily in a 1590B. Reverb brick and pot is populated on the solder side. Schematic for reference.
Thought this one was interesting so I gave it a go. It’s a fairly typical Rockett overdrive (.45 Caliber, Animal, Blue Note, etc.) with a fairly typical MOSFET boost (AMZ Booster, EQD Black Eye, etc.). Fits in a 125B with dual footswitches. Schematic and discussion found here. Fabricated version available on the store.

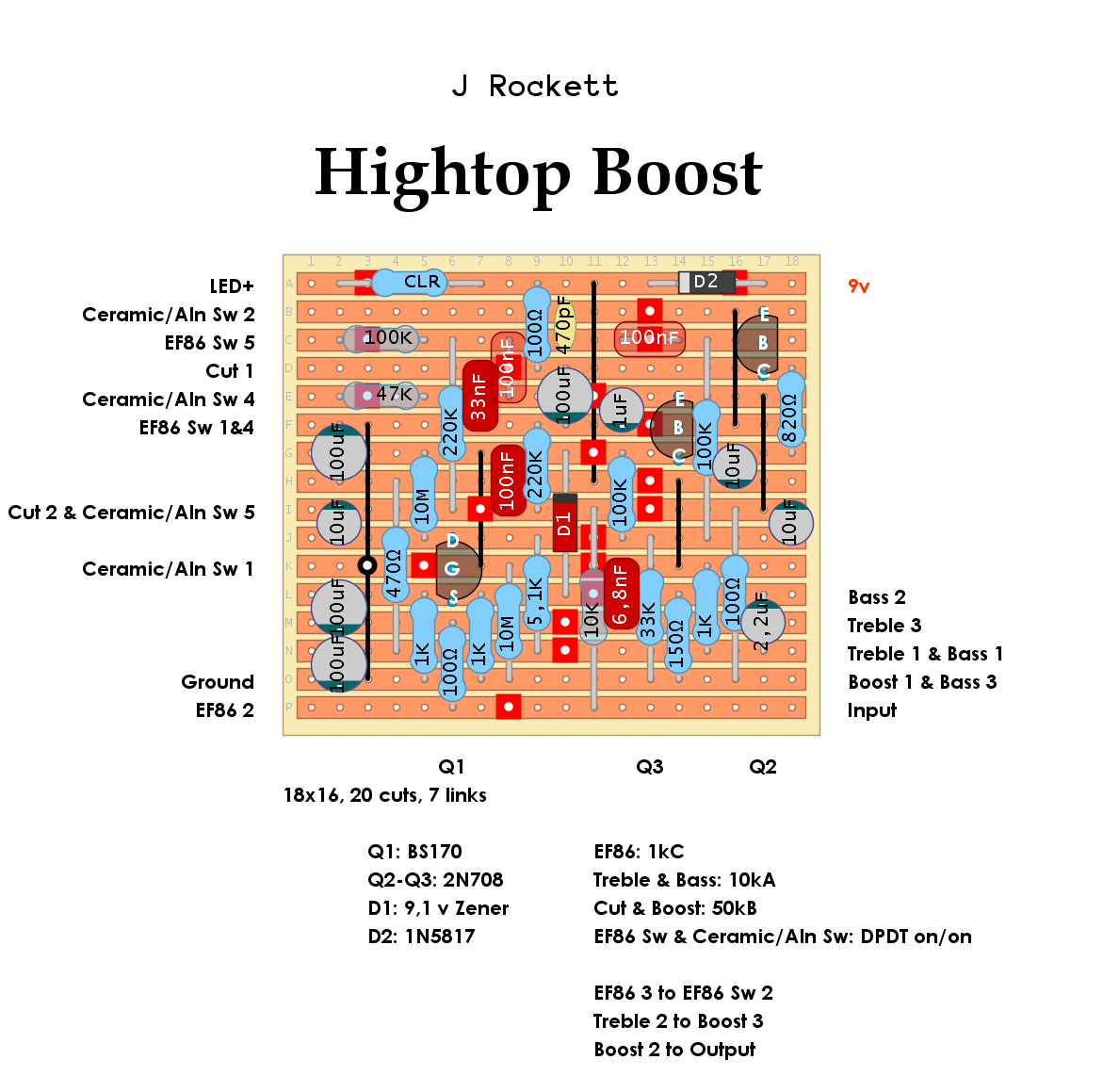

The 2N708’s isn’t that common but any low gain NPN silicon should work like 2N2369 or 2N1613. Try hfe in the 50-100 ballpark.
