Basic Audio

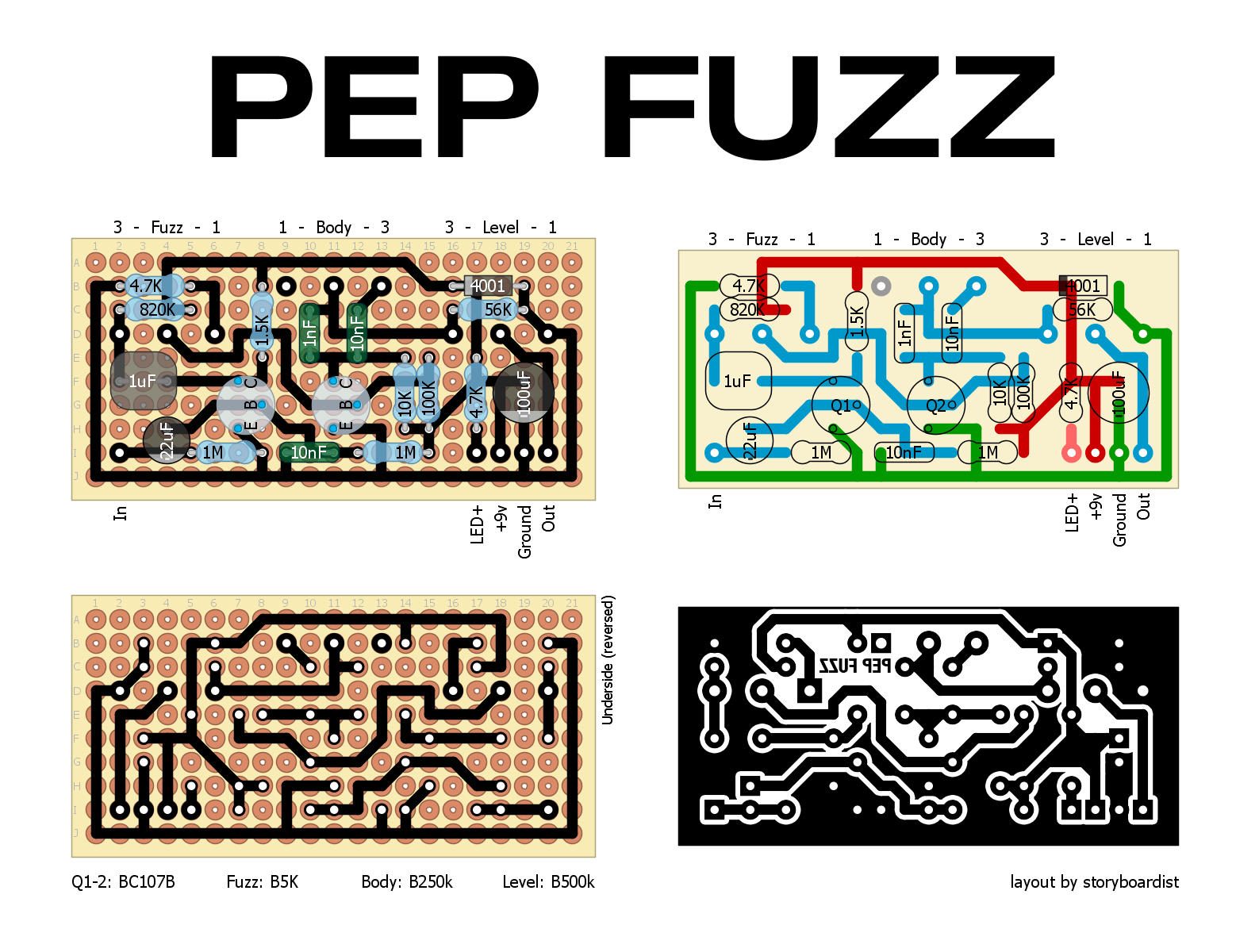

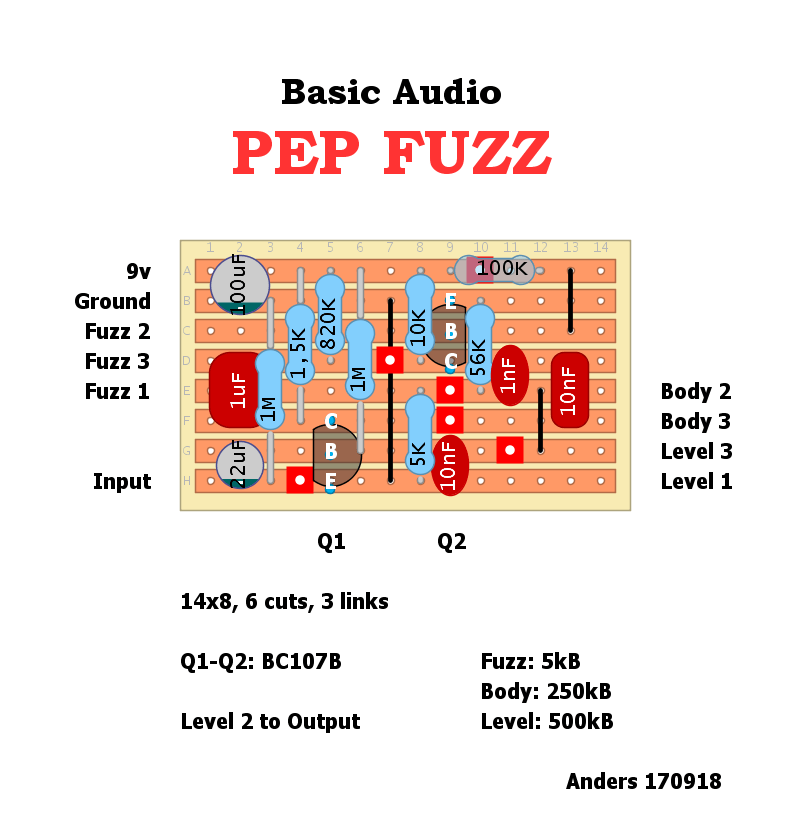

Here’s another one from Basic Audio for Fuzz Friday. This is John’s take on the Wem Pep Box and adds variable output cap control with the Body control. Should be an easy fit in a 1590B. Here’s the schematic for reference. Alternatives to the BC107B would be other lower gain transistors like the BC547B, 2N2222A, … Read more

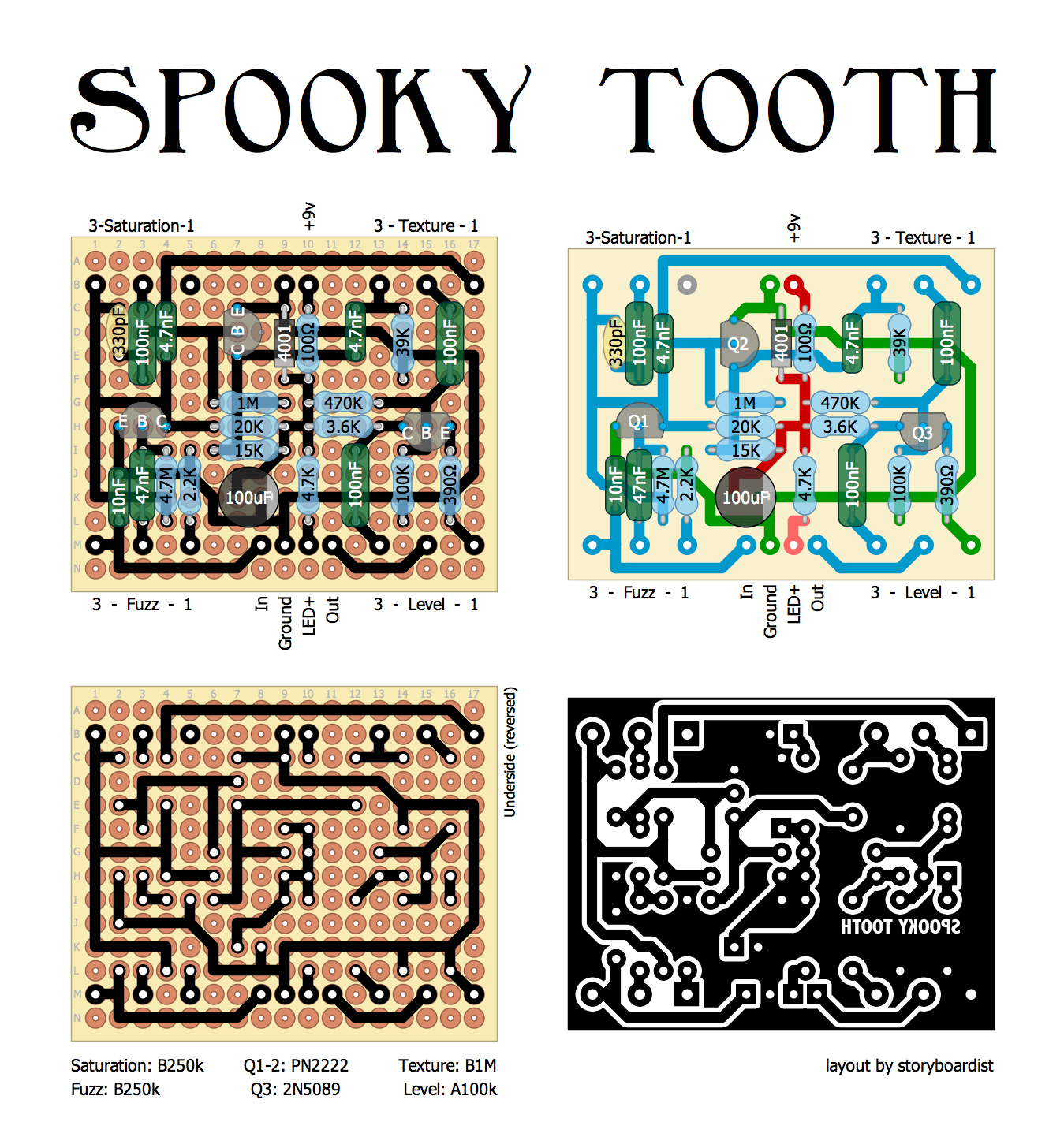

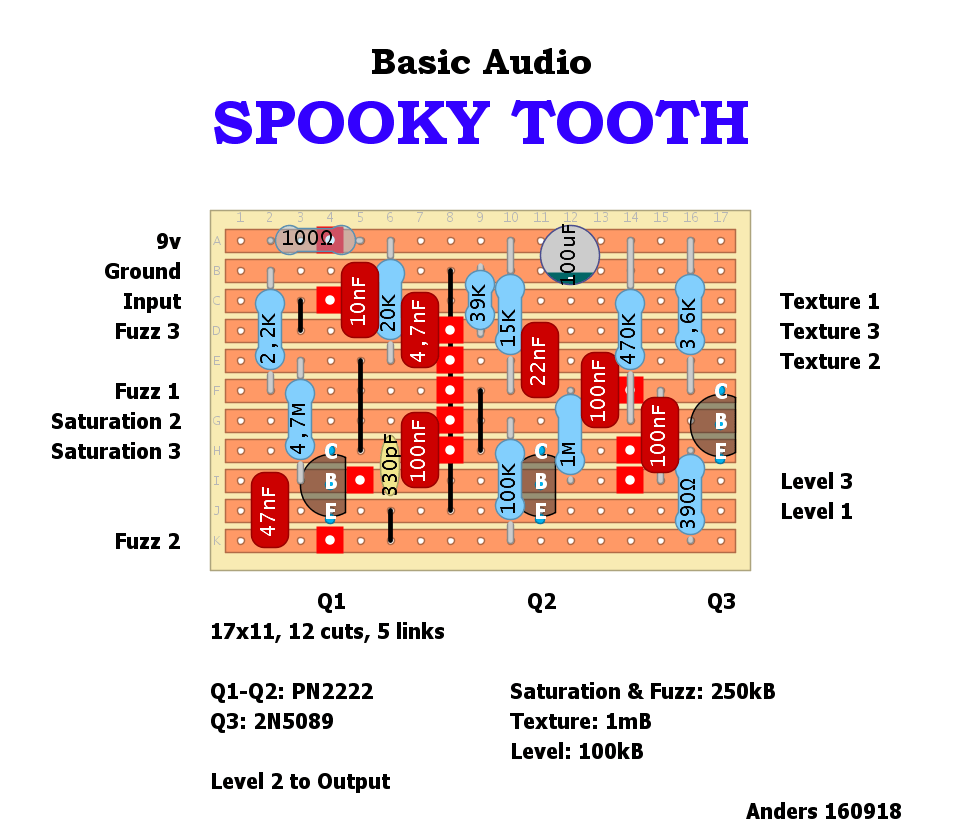

Found a trace of this over on the Tagboard Forum. It appears to be a highly modified Fuzzrite with an added gain recovery stage and a lot of value changes. The Saturation pot increases the output cap of the first stage, and the Fuzz pot is a pregain control. Originals use PN2222 transistors for Q1-2, … Read more

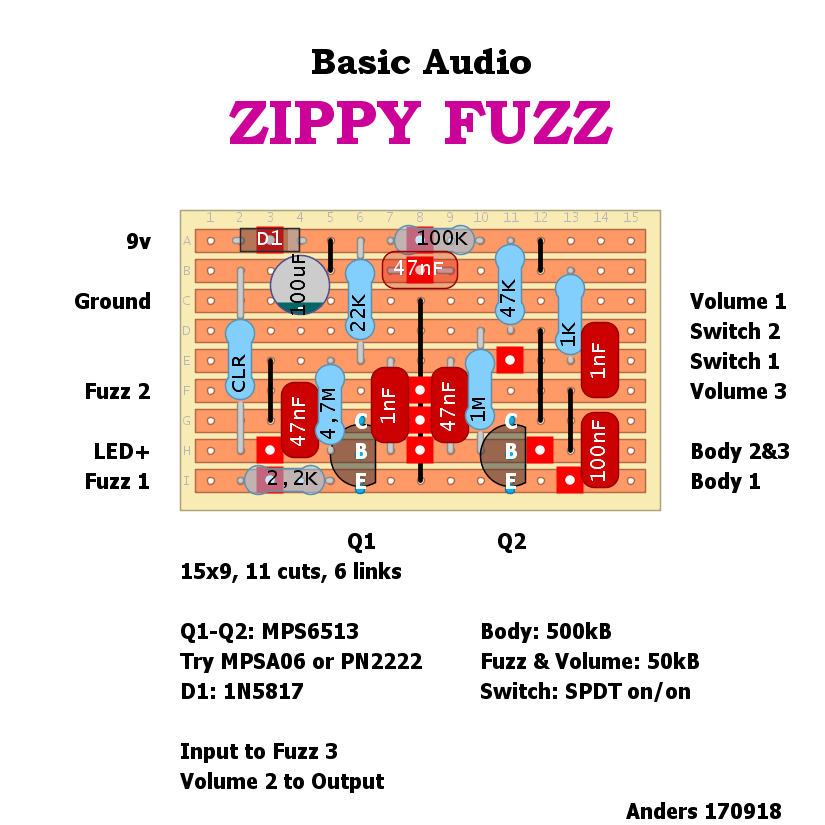

The Zippy is a silicon fuzz designed to give that vintage brassy sound. I’ve laid it out for board mounted pots and it’ll fit in a 1590B or a 125B with top mount jacks. In the words of John Lyons… Early fuzz boxes were designed to emulate the sounds of the saxophone.The Zippy will allow … Read more

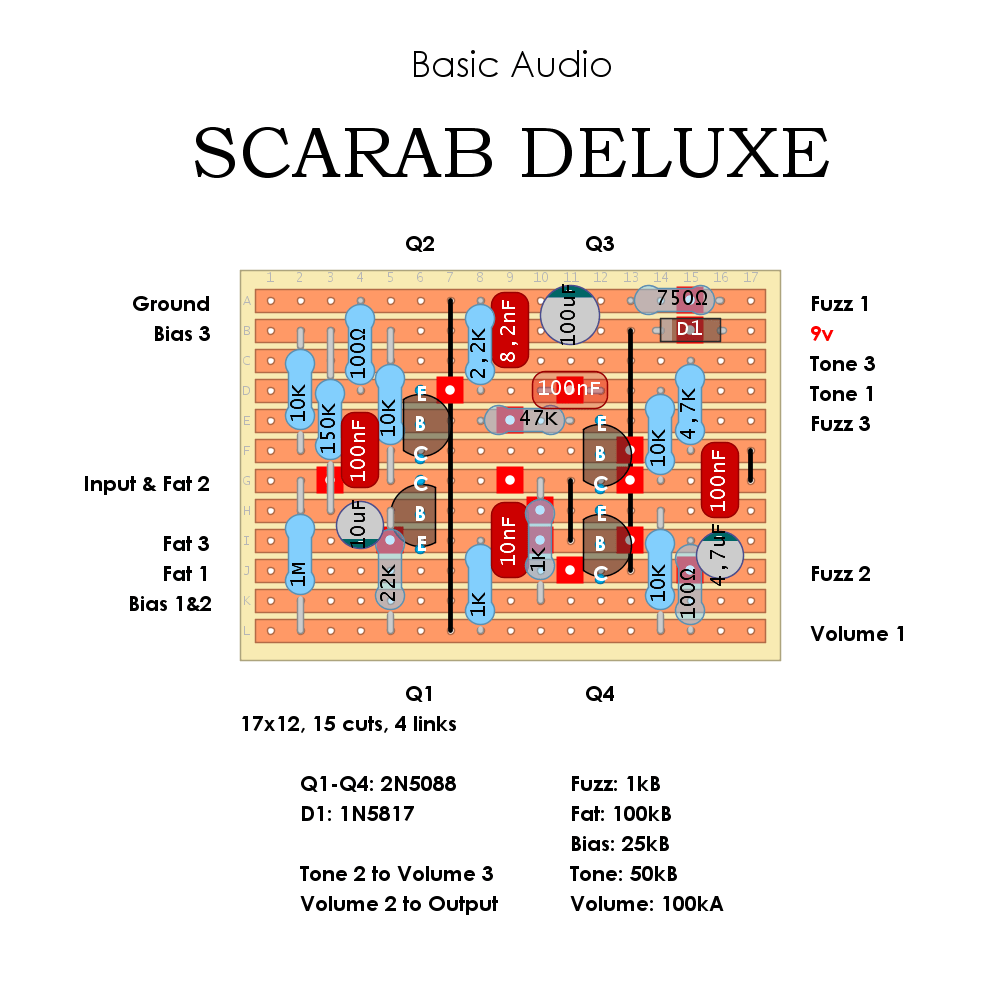

Happy Fuzz Friday! Revisiting one of the early layouts of the blog–John Lyon’s Scarab Deluxe. Been meaning to draw it up with board mounted pots for a while. Ian Nelson sent me his version and with a little modification we can check that off the bucket list. Great sounding fuzz based on MicTester’s Hot Silicon.

This is a variation of the Mictester Silicon Tonebender, which is based of the Tone Bender Mk II Professional circuit. John Lyons was kind enough to shed some light on his version over at FSB.
